Helvi SPARC 146 + KIT
MMA Electrode Welder

Helvi SPARC 146 + KIT - MMA Electrode Welder

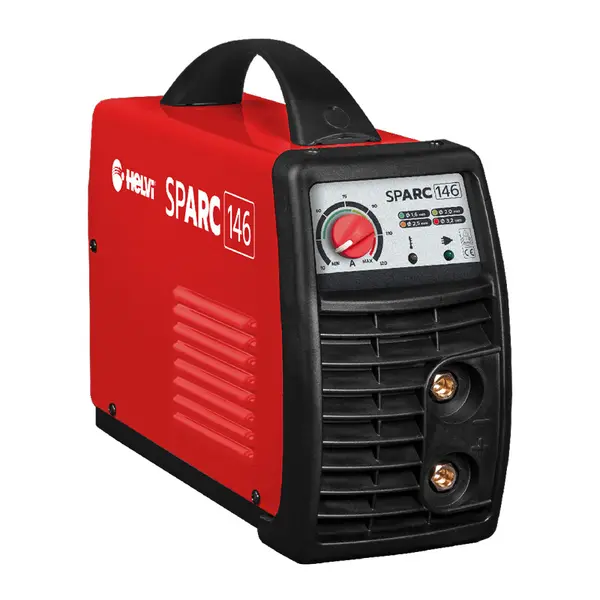

The Helvi SPARC 146 single-phase MMA electrode welder is designed for use on domestic current, ideal for welding rutile, basic , stainless steel , nickel and bronze electrodes . This welder for home maintenance work is easy to use and is also suitable for those with less experience in the sector.

Hwlvi SPARC 146 is equipped with overvoltage , overtemperature and electrode sticking control.

Technical specifications

This Helvi MMA electrode welder, single phase (230V), is easy to use and has excellent welding characteristics with all types of commercial electrodes. The output current is constant, making welding more stable and allowing linear regulation of the current.

MMA regulation devices

• Hot-Start: voltage peak during ignition to facilitate ignition of the welding arc, very useful for ignition of basic coated electrodes;
• Anti-Stick : automatic system that prevents the electrode from sticking to the base material;
• Arc-Force : device that increases the force of the arc to prevent it from going out; useful when the operator is engaged in welding in particular positions.

With its 2.5 kW, Helvi SPARC 146 allows intensive welding of electrodes with diameters from 1.6 to 3.25 mm .

Box Kit

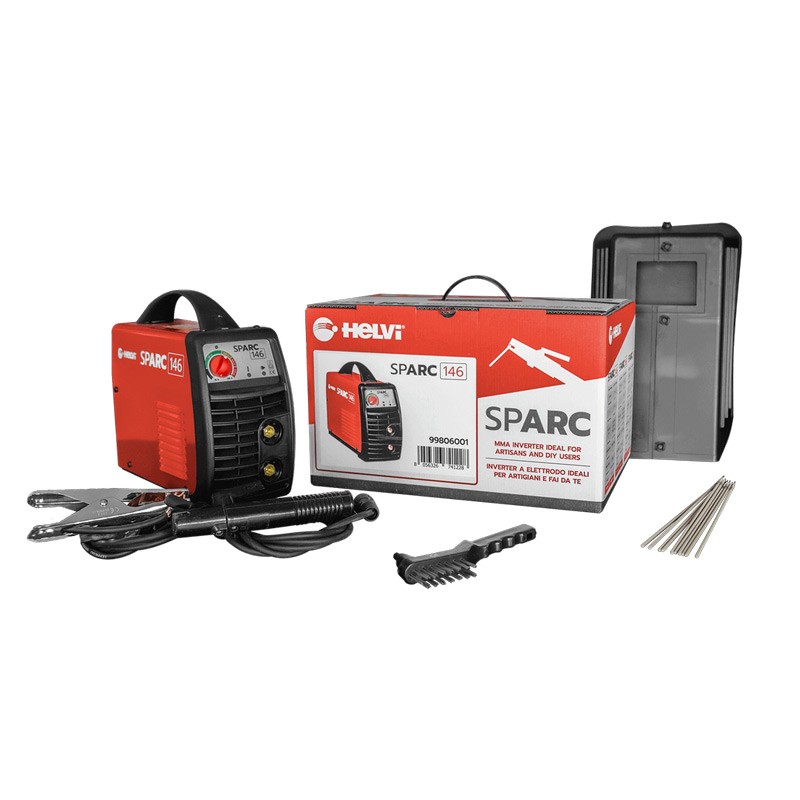

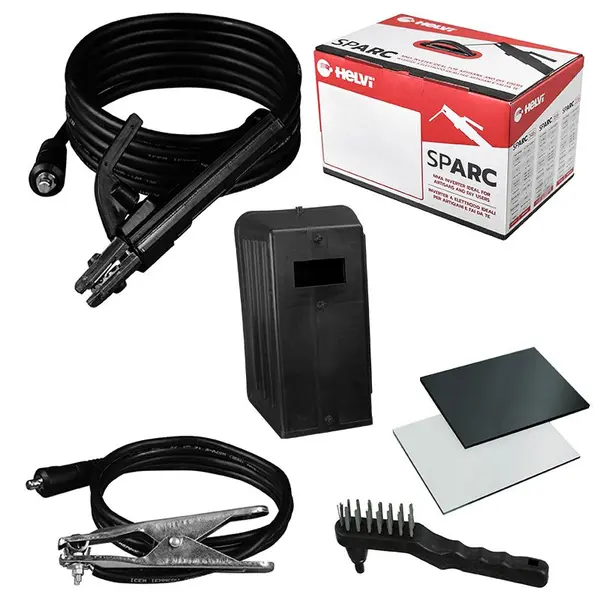

The box kit includes, in addition to the Helvi SPARC 146 welder, a plastic welding mask with glass kit, a 2.4 m welding cable with electrode holder , a 1.6 m earth cable with clamp , a hammer brush and the cardboard box.

Watch the video

TYPES OF WELDING POSSIBLE WITH Helvi SPARC 146 + KIT

• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.

Characteristics

• MMA
• Home use
• Made in Italy
• Compact
• Easy to use, intuitive
• Single phase
• Advanced automatic systems

• THERE IS
• EAC
• Certifications
• Air Cooling
• Power Generator Friendly
• Voltage
• Electronic Control
• Direct Current
• Connector 25mm²
• MMA
• Arc Force
• Hot Start
• Anti-sticking
• Electrodes

Standard Equipment

• Neoprene ground cable 10 mmq 1.6 m - code 43210238
• Neoprene welding cable 10 mmq 2.4 m - code 43205118
• Welding mask with glass 75 x 98 mm - code 21905064
• Glass kit - code 44900001
• Martobrush - code 21905039
• Cardboard box
