Telwin Force 205 + Accessories
MMA Inverter Welder
€288.00
€236.07 tax excl.
| or in 3 rates from 96.00 € with |  | |
| or in 3 rates from 96.00 € with |  |
library_add
more options
MPN: 816238
230V - 5.6 kW
10÷200 A
GOOD
Warranty 2 years
14 days to change your mind
Shipped on Pallet

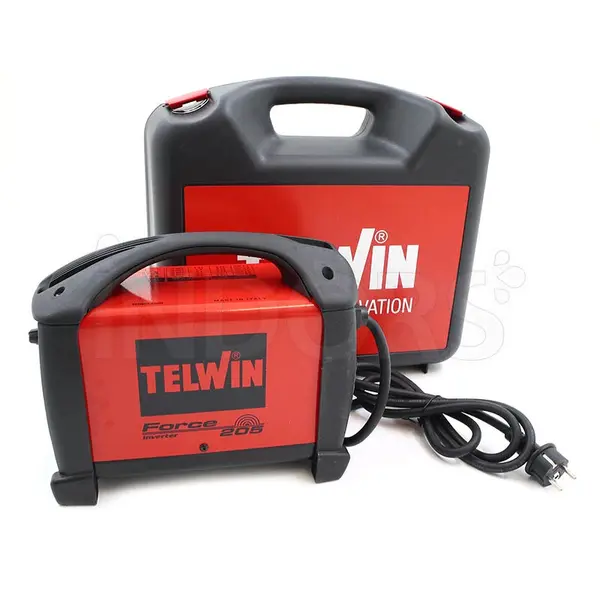

Telwin Force 205 - MMA Electrode Inverter Welder with Accessories
Telwin Force 205 is an inverter welder for manual MMA electrode welding , versatile and reliable, perfect for a wide range of applications, including professional ones. With its robust and raised structure it has excellent protection from dust, water and dirt and can be easily transported as it is compact and lightweight .
This original Telwin Force 205 welder works in direct current (DC) and allows you to obtain professional results efficiently and with low energy consumption. Sold complete with plastic case , Toledo 250A earth clamp , Dallas 300A electrode holder and TW05V-A 1x025 plug cable, 180 cm long .
It combines high-level performance, versatility and convenience with advanced arc control devices and overvoltage, undervoltage and overcurrent protection . Furthermore, its compatibility with the motor generator makes it the perfect choice for those who work in environments where electricity supply could be a problem.
Functional Specifications
With a power of 200A in direct current (DC) , the Telwin Force 205 welder can be used with a wide variety of electrodes, including rutile, basic, stainless steel, cast iron and others, with a diameter of up to 4 mm. This versatility makes it suitable for diversified welding jobs on different materials.
Bow Control
Telwin Force 205 is equipped with advanced arc control devices, including the " arc force " function which guarantees superior arc stability, the " hot start " which facilitates arc ignition and the " anti-stick " which prevents the electrodes from sticking during welding. These inspection tools offer greater precision and control during the welding process, helping to achieve high-quality results.
Thermostatic Protection
This welding machine code. 816238 Professional is equipped with thermostatic, overvoltage, undervoltage and overcurrent protection , which means it allows you to work safely without worries of any voltage or current related problems.
Use with Generator
Telwin Force 205 is compatible for use with motor generator , making it an ideal choice for situations where the electrical supply may not always be stable . Uniform and precise results will therefore be obtained even in less than ideal working conditions.

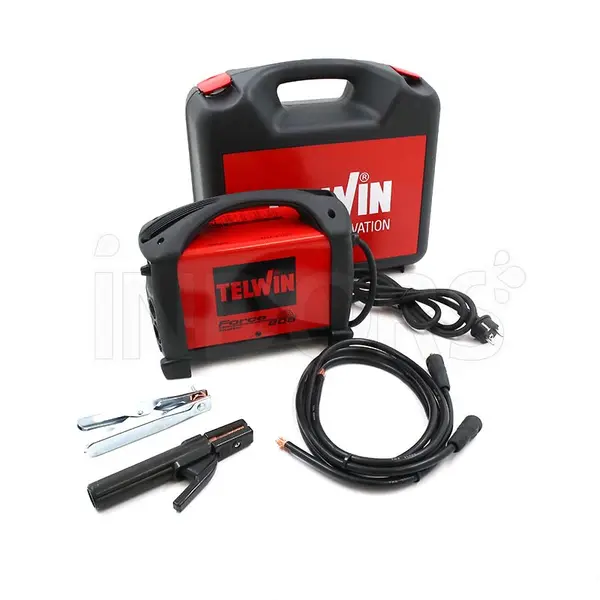

Telwin Force 205 with Case and Accessories
The Telwin Force 205 welder comes complete with a plastic case , Toledo 250A mass clamp , Dallas 300A electrode holder and 1.80 m TW05V-A 1x025 cable .
Technical specifications

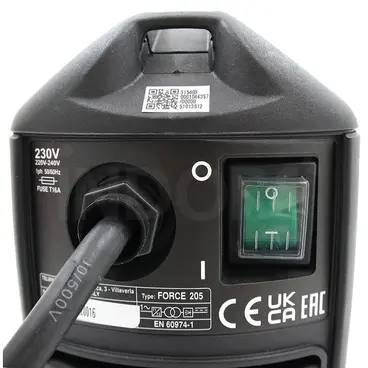

The Telwin Force 205 welding machine works with a single-phase mains voltage of 230 V and a mains frequency of 50/60 Hz . Its adjustable current range varies from 10A to 200A, offering flexibility in welding applications.
The maximum direct current current, compliant with EN 60974-1, is 180A at 20% , while the direct current current is 110A. Maximum Absorbed Current: 36A.

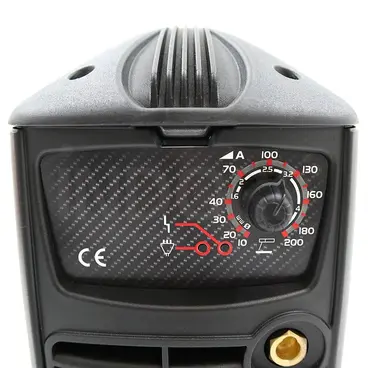

In terms of safety and protection, the welding machine features an IP23 protection rating . Its efficiency is 86% , ensuring efficient use of energy, while the power factor (cosϕ) is 0.7 .
Product code: 816238
Characteristics
- Direct Current (DC)
- MMA Electrode Inverter
- Complete with accessories case
- Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm
- Advanced arc control devices: arc-force, hot-start, anti-stick.
- Thermostatic, overvoltage, undervoltage, overcurrent, motor generator protections (+/- 15%).
- Robust and raised structure against dust, water and dirt;
- Compact and Lightweight
Standard equipment
- Plastic case - cod. 322800
- Toledo 240A mass clamp - cod. 712030
- Dallas 300A electrode holder pliers - cod. 712260
- Cable TW05V-A 1x025 1.80 m plug - cod. 124589
Technical data
| Code | 816238 |
| Power Supply | 230V (50/60HZ) |
| Current Absorbed at 60% | 19 A |
| Power Absorbed at 60% | 3.1 kW |
| No-load voltage | 82V |
| Adjustment Range | 10 - 200 A |
| Work cycle at 20°C | 95% @ 180A |
| Electrode diameter Ø | 1.6 - 4 mm |
| Degree of Protection | IP23 |
| Dimensions | 32.5 x 42.5 x 17.5 cm |
| Weight | 5.81kg |
Technical data
| Code | 816238 |
| Power Supply | 230V (50/60HZ) |
| Current Absorbed at 60% | 19 A |
| Power Absorbed at 60% | 3.1 kW |
| No-load voltage | 82V |
| Adjustment Range | 10 - 200 A |
| Work cycle at 20°C | 95% @ 180A |
| Electrode diameter Ø | 1.6 - 4 mm |
| Degree of Protection | IP23 |
| Dimensions | 32.5 x 42.5 x 17.5 cm |
| Weight | 5.81kg |
