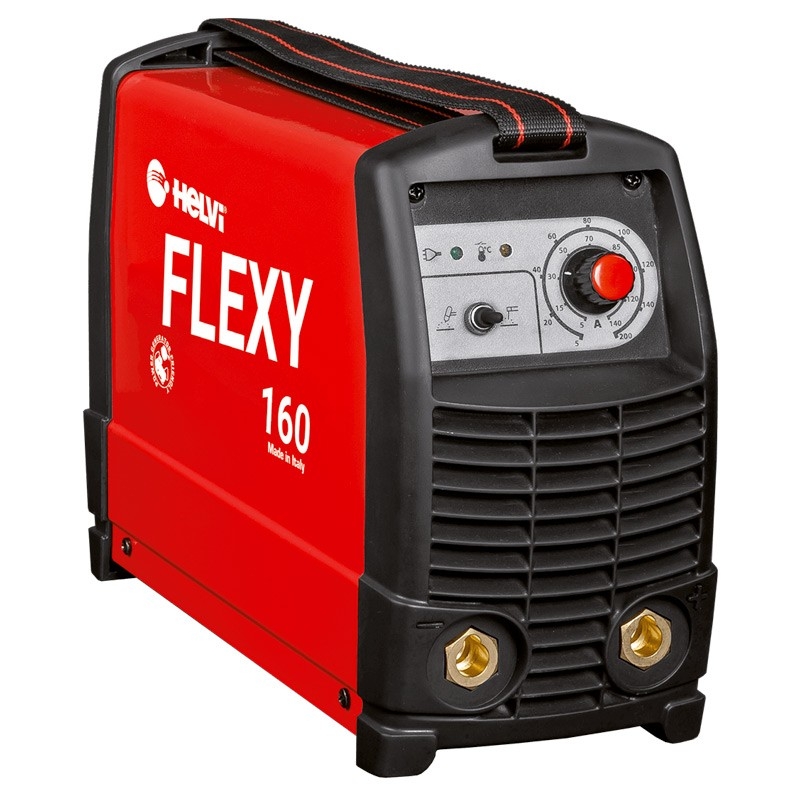

Helvi FLEXY 160
MMA TIG Inverter Welder
with FLEX-LINE System

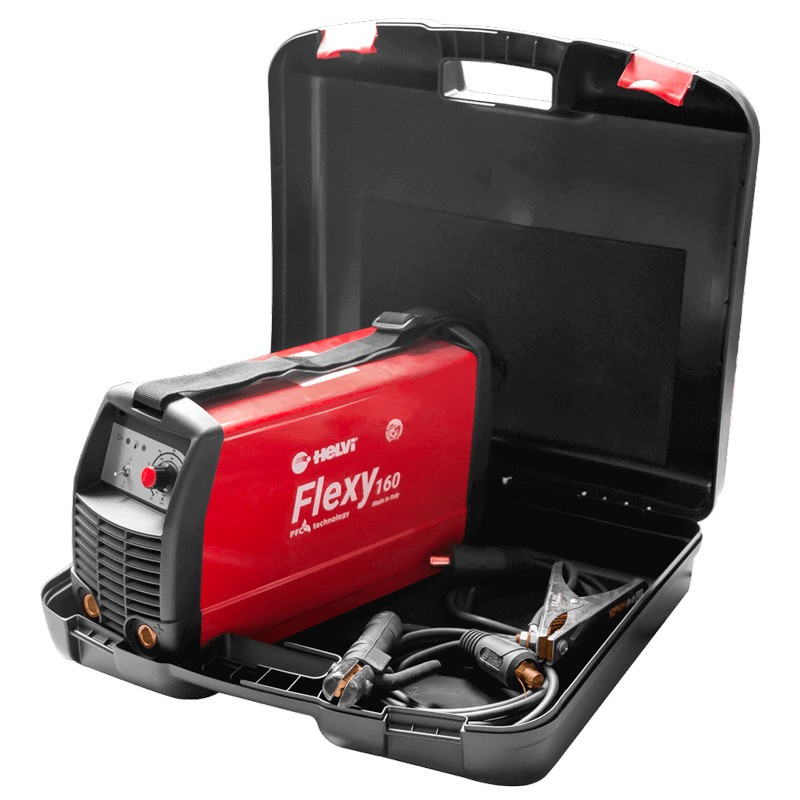

Helvi FLEXY 160 - Multiprocess Inverter Welder with Carrying Case Kit

Helvi FLEXY 160 cod 99805986 is a multi-process inverter welder for semi-professional use that guarantees a high power factor and low absorption thanks to the PFC system which automatically compensates for imbalances in the electrical network .
This Helvi welder for MMA and TIG welding is ideal for light carpentry and maintenance work and comes with a kit with a practical plastic case .

Helvi FLEXY 160 is a multi-process DC welder capable of MMA and TIG welding .
The FLEX-LINE system with which the Helvi single-phase welder is equipped allows for automatic recognition of the input voltage .

The Helvi FLEXY 160 welding machine is specifically designed to be powered by any electrical line with voltages between 90V and 270V .
The dimensions of 41 x 14 x 24.5 cm and the weight of 6.6 kg make this welding device compact , easy to transport and suitable for even the smallest spaces .

Functional Specifications

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welding machine, used with 2.7 kW , has a no-load voltage of 55 V with a regulation range of 10 ÷ 100 A , offers a 40% duty cycle with performances of 100 A @ 30% and 80 A @ 60% . Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 3.25 mm and types 6013 and 7018 .

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welding machine, used with 2.9 kW , has a no-load voltage of 55 V with a regulation range of 10 ÷ 160 A , offers a 40% duty cycle with performances of 160 A @ 25% and 105 A @ 60% . Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 4.0 mm and types 6013 and 7018 .

Types of welding possible with Helvi GALILEO 179

• MMA : Also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
• TIG : Requiring low voltage, it consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more durable, making it typically used for visible parts and for precision work.

Fields of application

• Light industry
• Agricultural sector
• Maintenance services
• Building constructions
• Automotive
• Semi-professional use

Characteristics

• High quality MMA and TIG welder
• Rated power of 60% and amounts to 4.8 KW
• Adjustable current from 5 to 160 A
• The 40°C work cycle guarantees durability and reliability in welding
• Compatible with electrodes of type 6013 and 7018 with diameter Ø 1.6÷4 mm
• Professional quality

• THERE IS
• Single-phase
• Certification
• Forced Ventilation Cooling
• Line Voltage Compensation
• Voltage
• Electronic Control
• Connectors
• kWA
• MMA
• Arc Force
• Hot Start
• Anti-Stick
• Electrodes
• TIG
• Lift Arc

Compatible accessories

•
  TIG torch 17V 4 m 50 mmq with gas valve 23020159
•
  Welding cable with electrode holder 3 m 16 mm2 180 AMP connector 50 mm2 43205049K
•
  Ground cable with clamp 2 m 16 mm2 180 AMP 50 mm2 connector 43210091K
•
  180 AMP 16 mm2 3 + 2 m dinse electrode welding kit 50 mm2 99900045

•
  Helvi XL welding bag 54 x 22.5 x 25 cm 21905139K

Safety accessories

•
  Pair of Professional MIG/MMA Gloves - 21905134
•
  Pair of professional TIG welding gloves 21905133
•
  Vision 2.1: Auto-Darkening Mask - 21905100
•
  Sky 2.0 Auto-darkening mask with 2 sensors 21905125

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta Group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers , and accessories .

Helvi video presentation

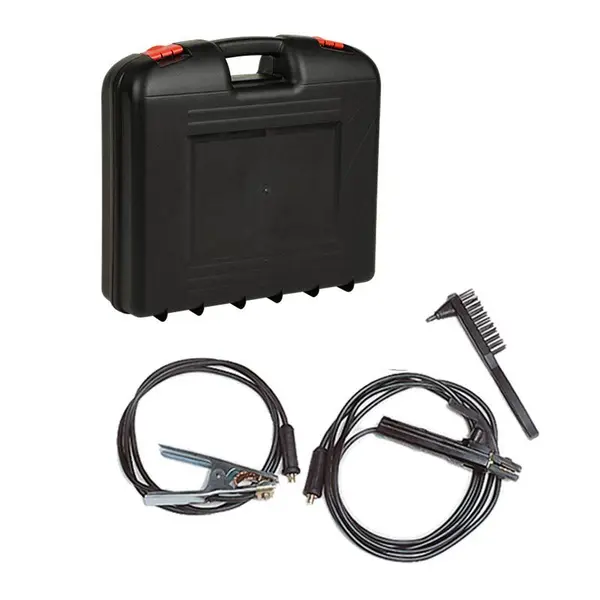

Supplied with Case Kit

• Ground cable 16 mm² - 2 m - code 43210185
• Welding cable 16 mm² - 3 m - code 43205098
• Motor brush - code 21905039
• Briefcase - code 21690609
