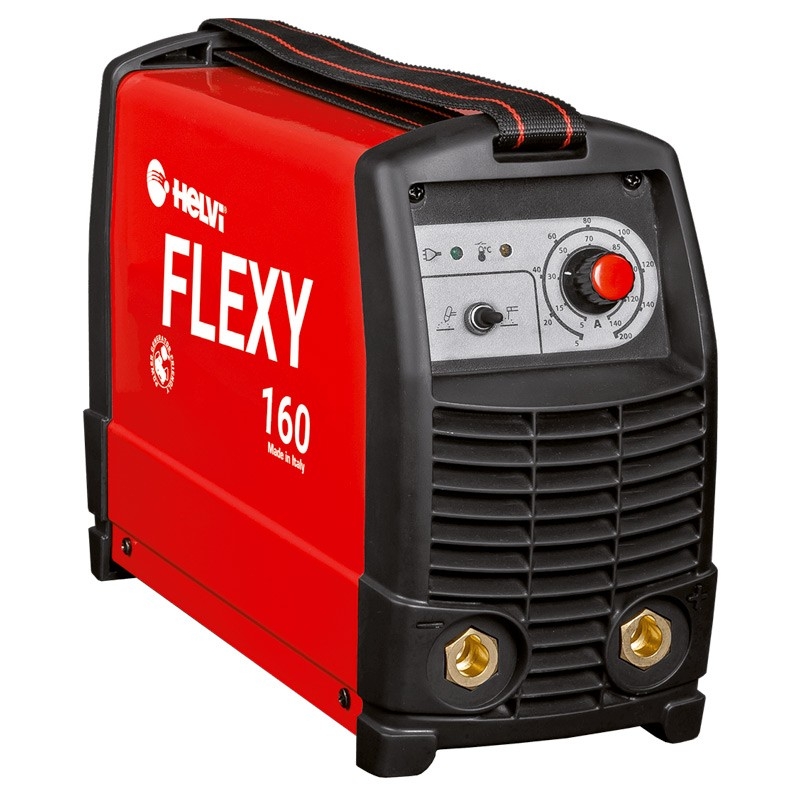

Helvi FLEXY 160
MMA TIG Inverter Welder
with FLEX-LINE System

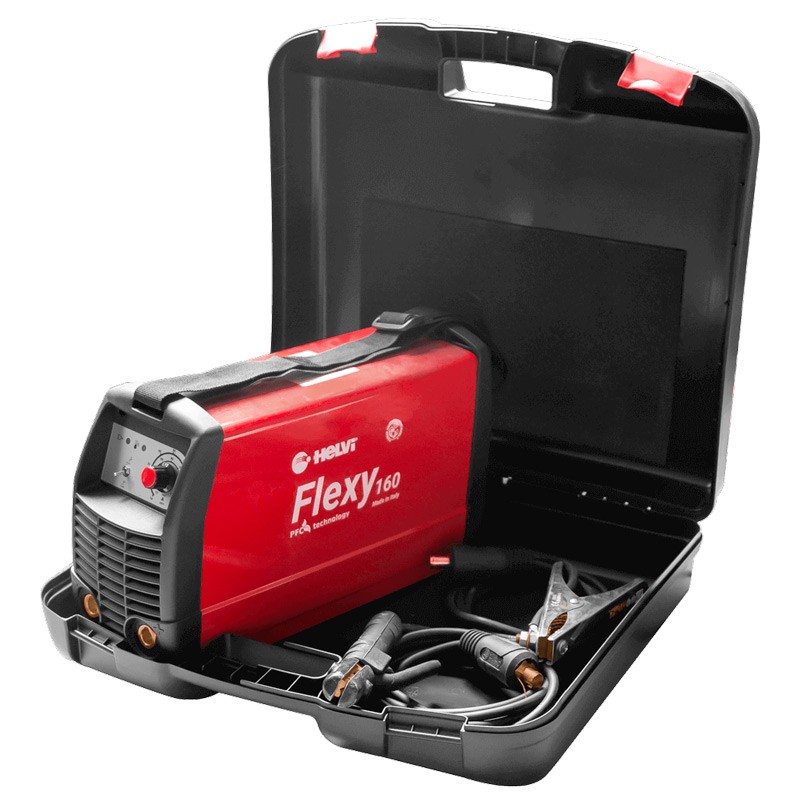

Helvi FLEXY 160 - Multiprocess Inverter Welder with Case Kit

Helvi FLEXY 160 code 99805986 is a multiprocess inverter welder for semi-professional use that guarantees a high power factor and low consumption thanks to the PFC system which automatically compensates for mains voltage imbalances.
This Helvi welder for MMA and TIG welding is ideal for light metal fabrication and maintenance work and comes with a Kit including a practical plastic case.

Helvi FLEXY 160 is a multiprocess welder in direct current capable of performing MMA welding and TIG welding.
The FLEX-LINE system with which the Helvi single-phase welder is equipped allows it to automatically recognize the input voltage.

The Helvi FLEXY 160 welder is specifically designed to be powered by any electrical line with voltages between 90V and 270V.
The dimensions of 41 x 14 x 24.5 cm and the weight of 6.6 kg make this welding device compact, easy to transport, and suitable even for the tightest spaces.

Functional Specifications

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welder, used with 2.7 kW, has an open-circuit voltage of 55 V with a regulation range of 10 ÷ 100 A, offers a duty cycle at 40% with performance of 100 A @ 30% and 80 A @ 60%. Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 3.25 mm and types 6013 and 7018.

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welder, used with 2.9 kW, has an open-circuit voltage of 55 V with a regulation range of 10 ÷ 160 A, offers a duty cycle at 40% with performance of 160 A @ 25% and 105 A @ 60%. Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 4.0 mm and types 6013 and 7018.

Types of welding possible with Helvi GALILEO 179

• MMA: Also known as shielded metal arc welding, it is certainly the most common welding method in non-professional environments or for work that does not require specific qualitative and productive performance. This type of welder is simpler to use, although it provides less precise aesthetic results compared to other welding types.
• TIG: Requires low voltage and therefore consumes little, making it more economical and aesthetically the most pleasing among all welding techniques. TIG welding has a coin-like appearance due to the circular shapes it produces and is more resistant, therefore it is usually used on visible elements and for precision work.

Application Fields

• Light industry
• Agricultural sector
• Maintenance services
• Building construction
• Automotive
• Semi-professional use

Features

• High-quality MMA and TIG welder
• Nominal power at 60% is 4.8 KW
• Current adjustable from 5 to 160 A
• The duty cycle at 40°C ensures durability and reliability in welding
• Compatible with 6013 and 7018 type electrodes with a diameter of Ø 1.6÷4 mm
• Professional quality

• CE
• Single-phase
• Certification
• Forced Ventilation Cooling
• Line Voltage Compensation
• Voltage
• Electronic Control
• Connectors
• kVA
• MMA
• Arc Force
• Hot Start
• Anti Sticking
• Electrodes
• TIG
• Lift Arc

Compatible Accessories

•
  TIG torch 17V 4 m 50 sq mm with gas valve 23020159
•
  Welding cable with electrode holder clamp 3 m 16 sq mm 180 AMP connector 50 sq mm 43205049K
•
  Ground cable with clamp 2 m 16 sq mm 180 AMP connector 50 sq mm 43210091K
•
  Electrode welding kit 180 AMP 16 sq mm 3 + 2 m RIGHT 50 sq mm 99900045

•
  Helvi XL bag for welder 54 x 22.5 x 25 cm 21905139K

Safety Accessories

•
  Pair of professional MIG/MMA welding gloves - 21905134
•
  Pair of professional TIG welding gloves 21905133
•
  Vision 2.1: Auto-darkening helmet - 21905100
•
  Sky 2.0 Auto-darkening helmet 2 sensors 21905125

HELVI: Italian excellence for welding

Helvi S.p.A is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturer specializes in industrial welding machines, plasma cutting machines, professional battery chargers, and accessories.

Helvi Presentation Video

Included with Case Kit

• Ground cable 16 mm² - 2 m - code 43210185
• Welding cable 16 mm² - 3 m - code 43205098
• Wire brush - code 21905039
• Case - code 21690609
