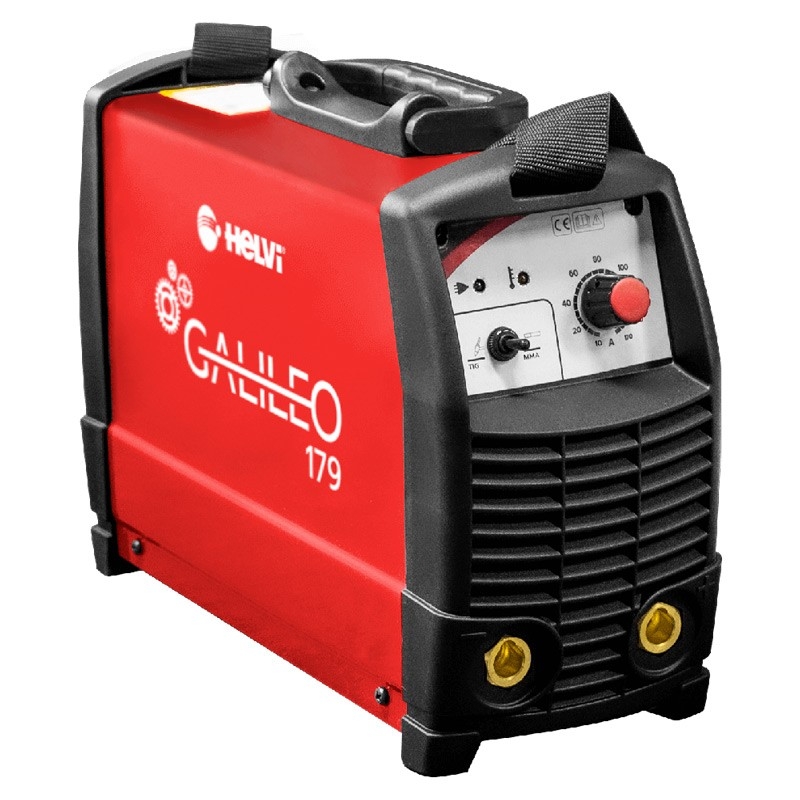

Helvi GALILEO 179
Inverter MMA TIG Welder Accessory Kit + Bag + Welding Machine

Helvi GALILEO 179 - Inverter MMA and TIG Welder Accessory Kit + Bag + Welding Machine

Helvi GALILEO 179 cod. 99806008 is a powerful and versatile welding machine designed for professional or hobby use . This compact machine is suitable for both MMA and TIG welding .

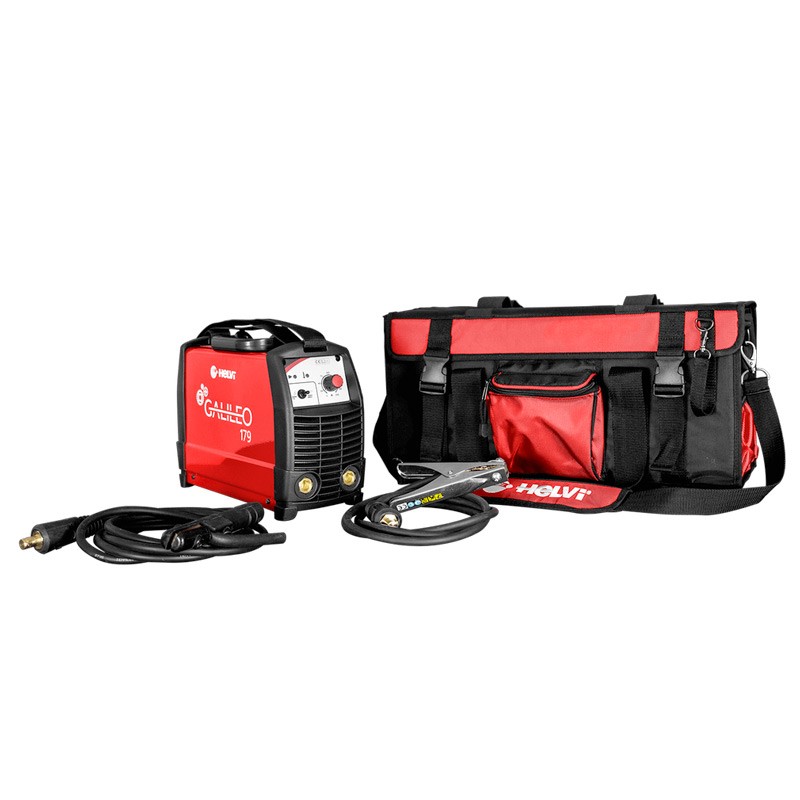

This welder is sold complete with a kit and a practical Helvi Bag M bag .

The Helvi GALILEO 179 230V welder has a power of 4.8 kW with a 60% duty cycle , providing continuous current from 5 to 160 A , allowing the user to adapt the welding to the specific needs of the job. This inverter welder is able to handle electrodes with a Ø between 1.6 mm and 4 mm with 6013 and 7018 type electrodes and is compatible with all types of commercial electrodes (rutile, basic and stainless steel) .

With overvoltage , overtemperature and electrode anti-sticking control, Helvi GALILEO 179 is equipped with a STICK/TIG (lift Arc) selector and can be powered by generators and long connection lines.

Functional Specifications

Inverter MMA and TIG Welder for Carpentry

The power of 4.8 kW at 60% allows the Helvi Galileo 179 welder to handle workloads without overheating or losing performance . The no-load voltage of 52 V with an adjustment range of 5 ÷ 160 A offers a duty cycle at 40°C with performances of 160 A @ 60% and 130 A @ 100% .

Compatible electrodes Ø 1.6÷4 mm

Helvi Galileo 179 is compatible with electrodes with a diameter of Ø 1.6÷4 mm and types 6013 and 7018 .

Helvi Galileo 179 safe to use

This welding machine is equipped with overvoltage, overtemperature and electrode sticking protections , and also has a STICK/TIG (lift Arc) selector . Helvi Galileo has H insulation with IPS23S protection rating .

Compact size and easy to transport

The dimensions of 33.5 x 14 x 24.5 cm and the weight of 6.2 kg make this welding device compact , easy to transport and suitable for even the smallest spaces .

Types of welding possible with Helvi GALILEO 179

• MMA : Also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
• TIG : Requiring low voltage, it consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more durable, making it typically used for visible parts and for precision work.

Characteristics

• High quality MMA and TIG welder
• Rated power of 60% and amounts to 4.8 KW
• Adjustable current from 5 to 160 A
• The 40°C work cycle guarantees durability and reliability in welding
• Compatible with electrodes of type 6013 and 7018 with diameter Ø 1.6÷4 mm
• Professional quality

• THERE IS
• Single-phase
• Certification
• Forced Ventilation Cooling
• Line Voltage Compensation
• Voltage
• Electronic Control
• Connectors
• kWA
• MMA
• Arc Force
• Hot Start
• Anti-Stick
• Electrodes
• TIG
• Lift Arc

Watch the video

Fields of application

• Light industry
• Agricultural sector
• Maintenance services
• Building constructions
• Automotive
• Semi-professional use

Compatible Accessories

•
  Welding cable with electrode holder 3 m 25 mm2 - connector 50 mm2 43205097
•
  Ground cable with clamp 2 m 25 mm2 33 AMP 50 mm2 connector 43210170
•
  Helvi Welding Machine Bag 45 x 22 x 27 cm 21905178K

Safety accessories

•
  Pair of Professional MIG/MMA Gloves - 21905134
•
  Pair of professional TIG welding gloves 21905133
•
  Vision 2.1: Auto-Darkening Mask - 21905100
•
  Sky 2.0 Auto-darkening mask with 2 sensors 21905125

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta Group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers , and accessories .

Helvi video presentation

Standard Equipment

• Ground cable 25 mm² - 2 m - code 43210170
• Welding cable 25 mm² - 3 m - code 43205097
• Helvi Bag M - 21905178K
