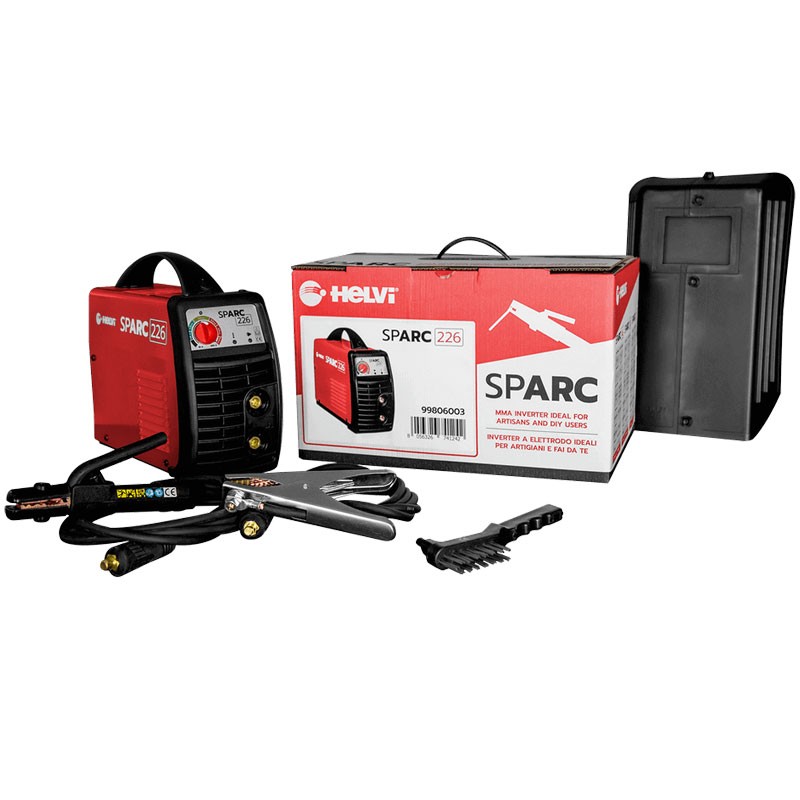

Helvi SPARC 226 + KIT
MMA Welding Machine
230V
10÷200 A
MMA
€272.00
€222.95 tax excl.
Warranty 2
years
Shipped on Pallet
Helvi SPARC 226 + KIT - MMA Welding Machine
Helvi SPARC 226 + KIT is an inverter system welding machine in direct current for small-sized electrode welding, easily transportable and maneuverable. It features a simple to use, particularly intuitive control panel.
This welding machine is ideal for home use or for light maintenance and is equipped with overvoltage, overtemperature, and electrode anti-sticking controls. Helvi SPARC 226 + KIT is made in Italy with particular attention to reliability and design.
Technical Specifications
The Helvi SPARC 226 + KIT welding machine is suitable for welding coated electrodes with a diameter from 1.6 to 4 mm, for home use with a maximum current of 200 A. The product is small in size, making it easy to transport, weighing only 4 kg. SPARC 226 supports the use of rutile, basic, stainless steel, cast iron electrodes, etc.
MMA Adjustment Devices
- Hot Start: voltage peak during ignition to facilitate arc striking, very useful for igniting basic coated electrodes
- Anti-stick: automatic system that prevents the electrode from sticking to the base material. Arc-Force: device that increases arc force to prevent it from extinguishing; useful when the operator is engaged in welding in particular positions
Types of Welding Possible with Helvi SPARC 226 + KIT
- MMA: MMA welding, or coated electrode welding, is certainly the most common welding method in non-professional environments or for jobs that do not require specific quality and production performance. This type of welding machine is easier to use, although it provides less precise aesthetic results compared to other welding types due to slag produced by the absence of protective gas.
Watch the video
Compatible Accessories
Welding cable with electrode holder clamp - 43205028K
Ground cable with clamp 2 m and 25 mm² connector - 43210138K
Electrode welding kit DX 25 mm² adapter - 99900037
Safety Accessories
Pair of professional MIG/MMA gloves - 21905134
Vision 2.1: Auto-darkening mask - 21905100
Sky 2.0: Auto-darkening mask - 21905125
Features
- Compact
- Simple controls
- Home use
- Advanced automatic systems
- Direct current
Standard Equipment - Cardboard Box Kit
- Neoprene ground cable 16 mmq 2 m - code 43210236
- Neoprene welding cable 16 mmq 3 m - code 43205114
- Welding mask glass 75 x 98 mm - code 21905064
- Glass kit - code 44900001
- Hammer brush - code 21905039
- Cardboard box
Standard Equipment - Bag Kit
- Neoprene ground cable 16 mmq 2 m - code 43210236
- Neoprene welding cable 16 mmq 3 m - code 43205114
- Hammer brush - code 21905039
- Helvi M Bag 45 x 22 x 27 cm - code 21905178K
Technical Data
| Box Kit Code | 99806003 |
| Bag Kit Code | 99806013 |
| Power Supply | 230 V |
| At 60% | 23 A |
| Power at 60% | 3.2 kW |
| Amperage | 10 ÷ 200 A |
| Duty Cycle | 200A @ 25% 130A @ 60% 100A @ 100% |
| Voltage | 70 V |
| Ø El | 1.6 ÷ 4.0 mm |
| Electrode Type | 6013 - 7018 |
| Insulation | H |
| Protection Rating | IP22S |
| Dimensions | 28.5 x 12 x 25.5 cm |
| Weight | 4 kg |
