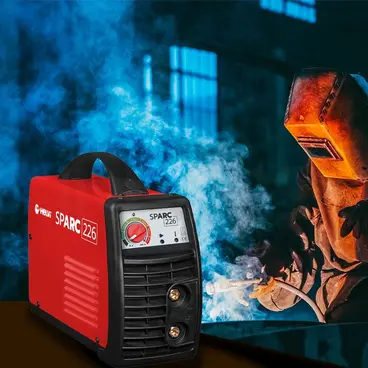

Helvi SPARC 226 + KIT
Coated Electrode Welder

Helvi SPARC 226 + KIT - Coated Electrode Welder

Helvi SPARC 226 + KIT is a small-sized, easily transportable and handy inverter welding machine with direct current for electrode welding, featuring a user-friendly , particularly intuitive control panel.

This welder is ideal for home use or light maintenance and is equipped with overvoltage, overtemperature, and electrode sticking protection . Helvi SPARC 226 + KIT is manufactured in Italy with particular attention to reliability and design .

Technical specifications

The Helvi SPARC 226 + KIT welding machine is suitable for welding coated electrodes with a diameter of 1.6 to 4 mm , for domestic use at a maximum current of 200 A. The product is small in size , making it easily transportable , weighing only 4 kg , SPARC 226 supports the use of rutile, basic, stainless steel, cast iron electrodes, etc.

MMA regulation devices

• Hot Start: voltage peak during ignition to facilitate ignition of the welding arc, very useful for ignition of basic coated electrodes
• Anti-stick : automatic system that prevents the electrode from sticking to the base material Arc-Force: device that increases the force of the arc to prevent it from going out; useful when the operator is engaged in welding in particular positions

Types of welding possible with Helvi SPARC 226 + KIT

• MMA : MMA welding, or coated electrode welding, is certainly the most common welding method in non-professional environments or in processes that don't require specific quality or productivity. This type of welding machine is easier to use, although it produces less aesthetically accurate results than other welding methods due to the slag produced by the lack of shielding gas.

Watch the video

Compatible accessories

•
  Welding cable with electrode holder - 43205028K
•
  Ground cable with 2 m clamp and 25 mm² connector - 43210138K
•
  DINSE 25 mm² Electrode Welding Kit - 99900037

Safety accessories

•
  Pair of Professional MIG/MMA Gloves - 21905134
•
  Vision 2.1: Auto-Darkening Mask - 21905100
•
  Sky 2.0: Auto-Darkening Mask - 21905125

Characteristics

• Compact
• Simple commands
• Home use
• Advanced automatic systems
• Direct current

• Forced Ventilation Cooling
• Suitable for use with a power generator
• Voltage Compensation
• 25 mm² connector
• Power 12.5 kVA
• Electrode Welding
• Optimal Current Management
• Hot Start Management
• Avoid Electrode Sticking

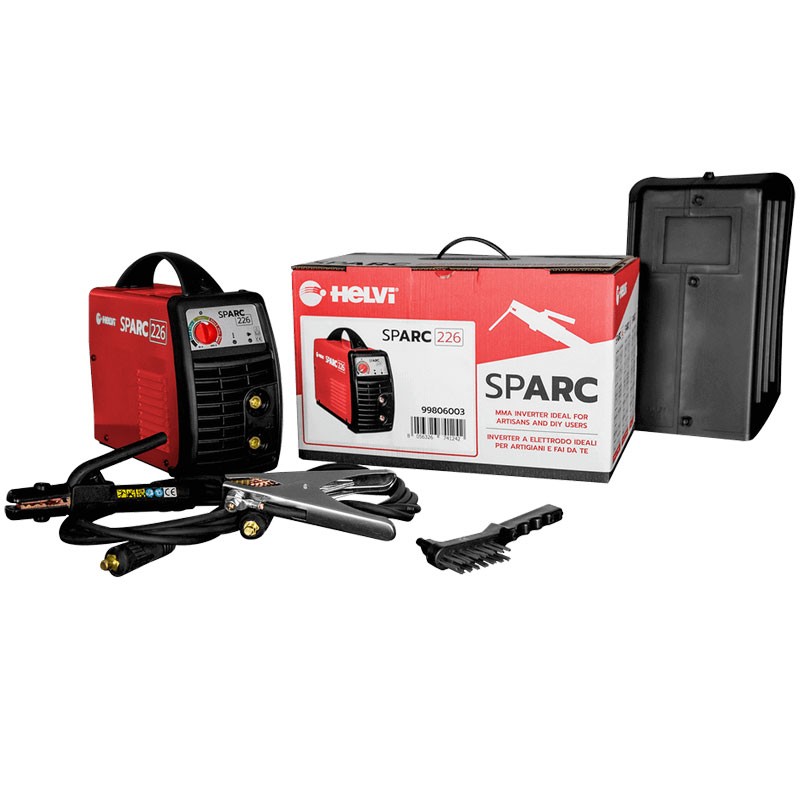

Standard equipment cardboard box kit

• Neoprene ground cable 16 mmq 2 m - code 43210236
• Neoprene welding cable 16 mmq 3 m - code 43205114
• Glass welding mask 75 x 98 mm - code 21905064
• Glass kit - code 44900001
• Hammer brush - code 21905039
• Cardboard box

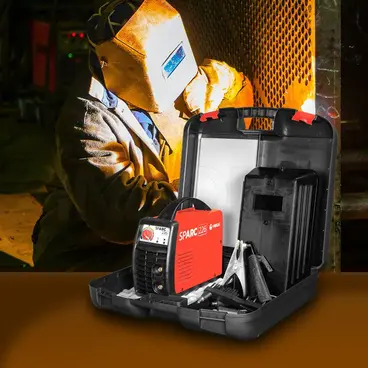

Standard equipment bag kit

• Neoprene ground cable 16 mmq 2 m - code 43210236
• Neoprene welding cable 16 mmq 3 m - code 43205114
• Hammer brush - code 21905039
• Helvi M Bag 45 x 22 x 27 cm - cod. 21905178K
