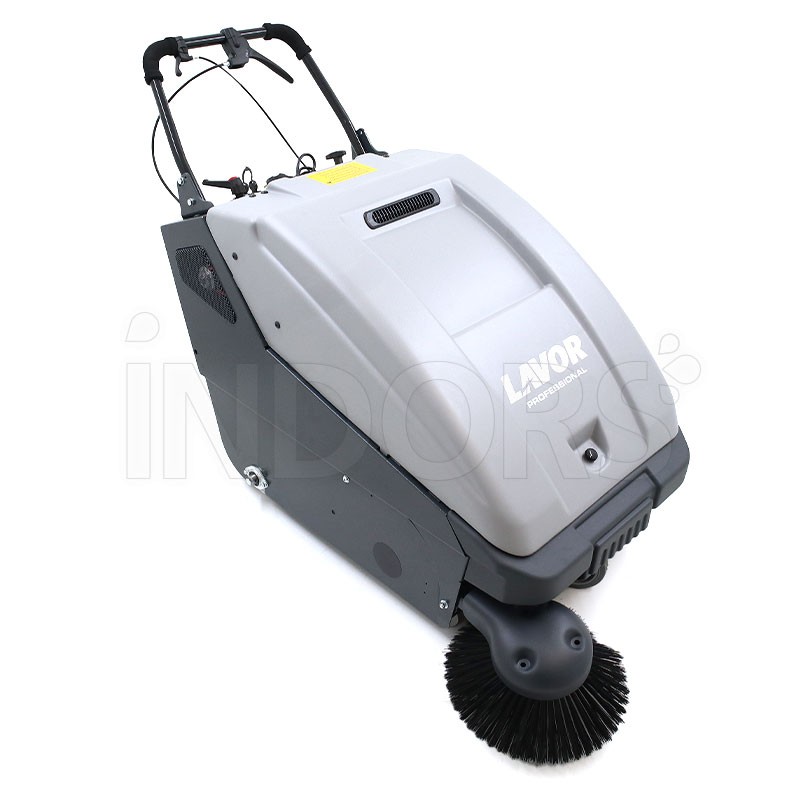

Lavor SWL 700 ET Court Deluxe
Sweeper for Cleaning Tennis and Padel Courts

Lavor SWL 700 - Walk-Behind Sweeper - Battery and Petrol Versions

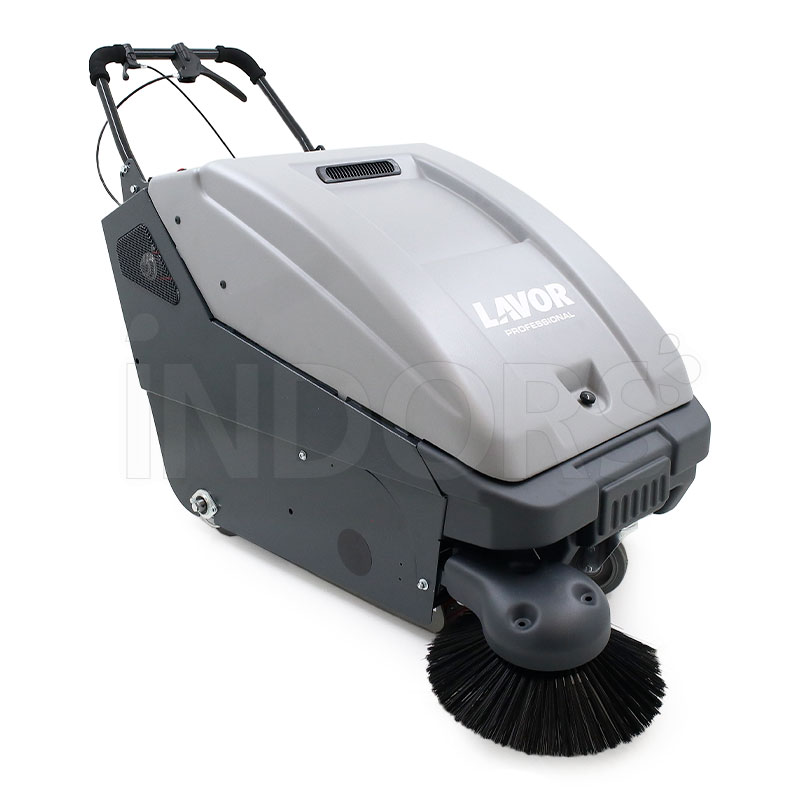

The Lavor SWL 700 ET Court Deluxe is a battery-powered walk-behind sweeper designed to ensure the cleaning and maintenance of synthetic sports fields , such as padel and tennis courts, and other multipurpose sports spaces.

With an hourly output of 2620 m²/h and a working width of 68 cm , this machine is synonymous with efficiency and practicality, allowing rapid operations on both indoor and outdoor fields .

Technical specifications

The SWL 700 ET Court Deluxe is powered by a 12V battery and a 400W motor , offering continuous and reliable operation. The central brush has a width of 51 cm , while the total cleaning width reaches 68 cm , allowing for effective surface coverage.

The collection container has a capacity of 45 L and is easy to empty. The forward speed is 4 km/h , supported by a mechanical advancement system and a brush pressure regulation system .

The machine features a 2 m² filter surface , ensuring excellent dust filtration thanks to the integrated electric filter shaker. The suction system is equipped with an off switch for customized management of operations.

Functional specifications

Central brush with soft bristles

The 51 cm wide central brush ensures the collection of coarse dirt and ball fluff, keeping the synthetic grass fibers neatly organized . This feature, combined with the brush pressure adjustment system and quick release , preserves the integrity of the field and ensures uniform cleaning.

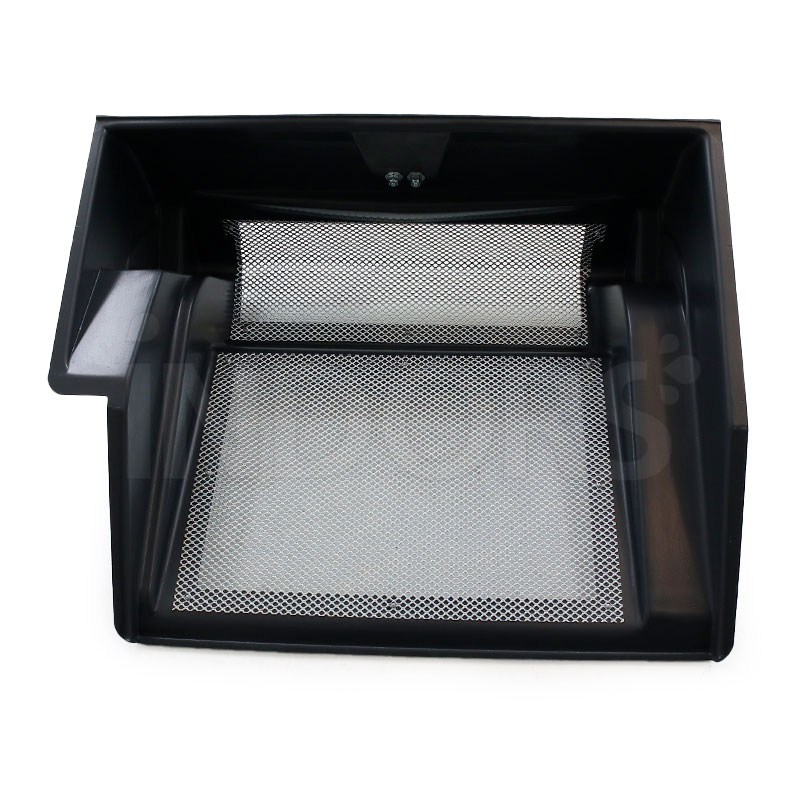

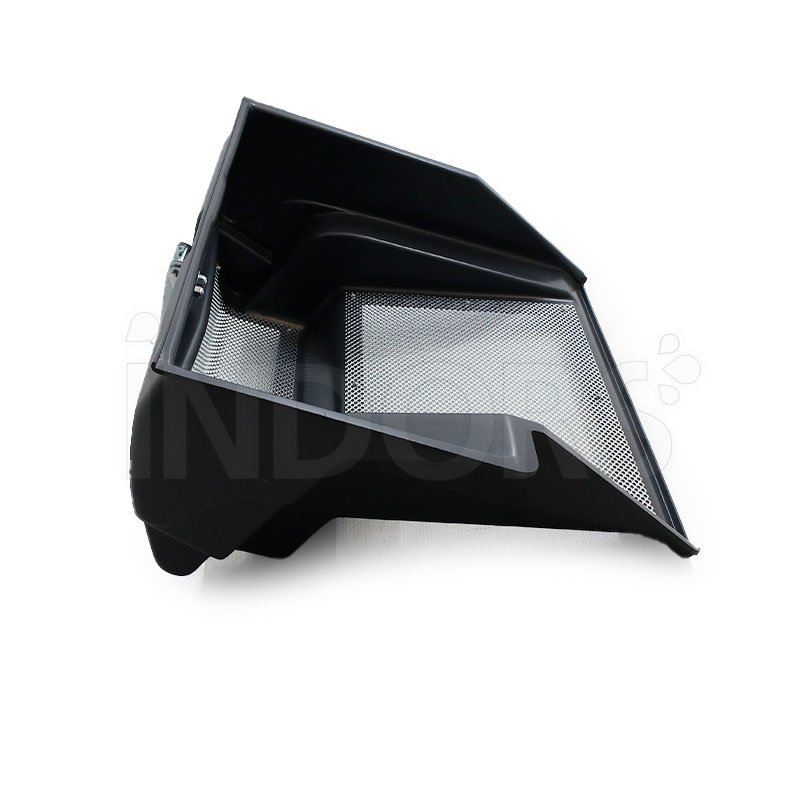

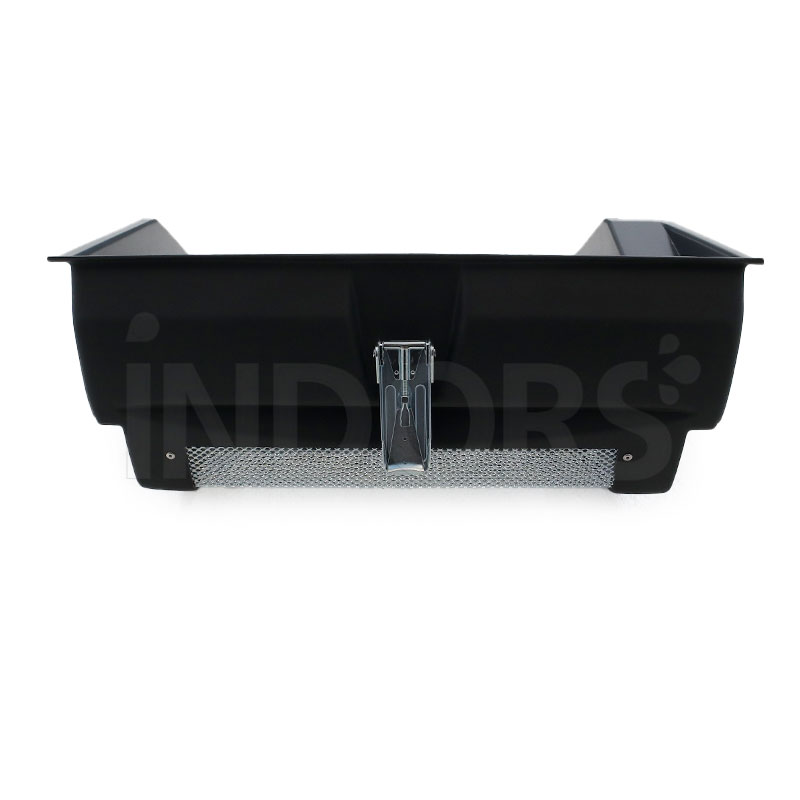

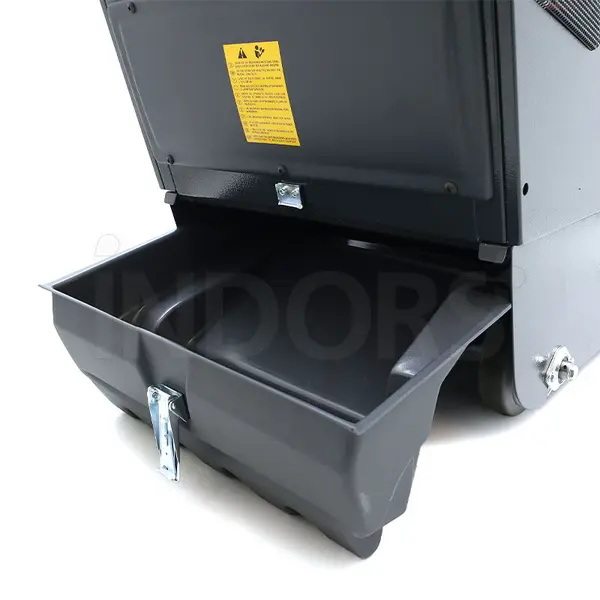

Collection tank with micro holes

The innovative collection tray with micro-perforations allows for even sand distribution, retaining dust and debris . This feature is essential for keeping the play surface safe and hygienic, improving the gaming experience. The container is easily replaceable with a standard model for greater versatility.

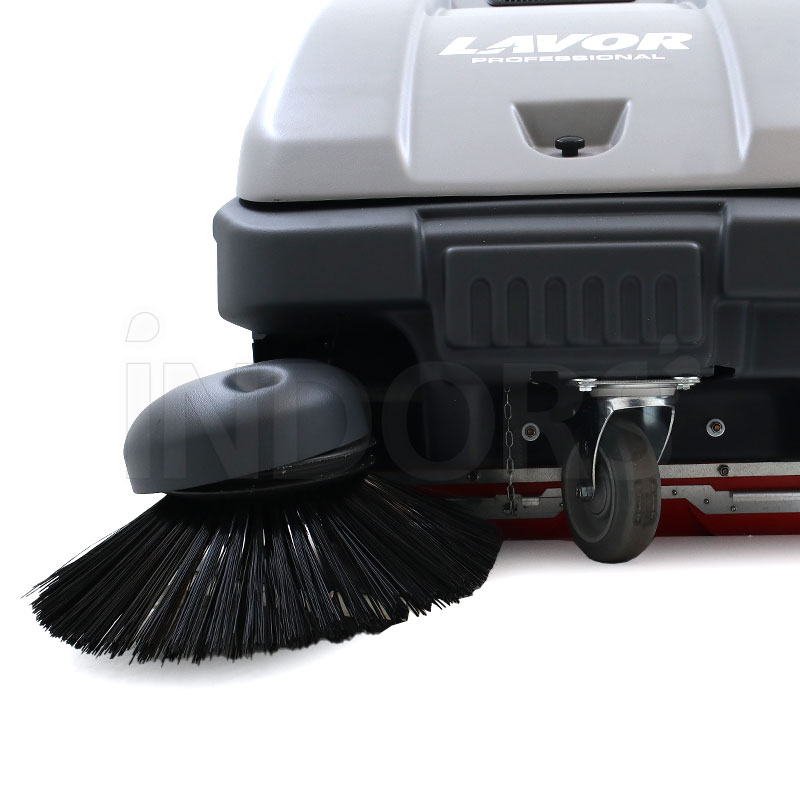

Side brush

The side brush allows you to effectively collect and distribute sand even to the edges of the field, ensuring thorough cleaning without leaving buildup. The side brush lift lever makes it easier to operate when necessary.

Battery powered

The SWL 700 ET Court Deluxe is powered by a low-maintenance gel battery , making it ideal for both indoor and outdoor use . The integrated on-board charger allows for simple and immediate charging, keeping the machine always ready for use.

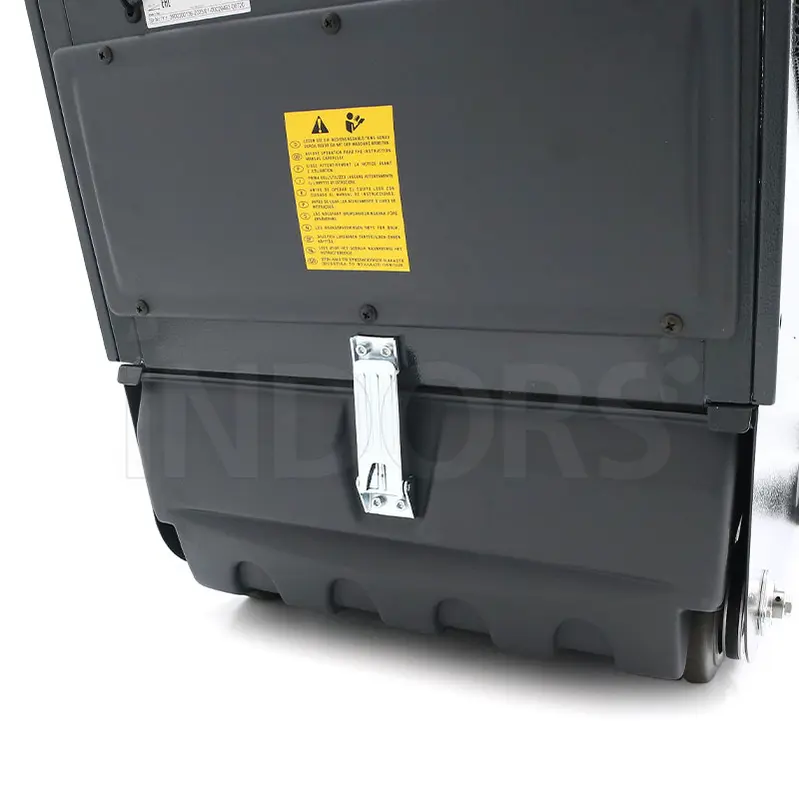

Versatility of the collection container

By replacing the micro-perforated drawer with the standard container, the sweeper can be used to clean other areas of sports centers, such as driveways , parking lots , and indoor spaces , tackling even the most difficult dirt conditions. The non-marking side flaps and antistatic device ensure effective and safe operation even in different environments.

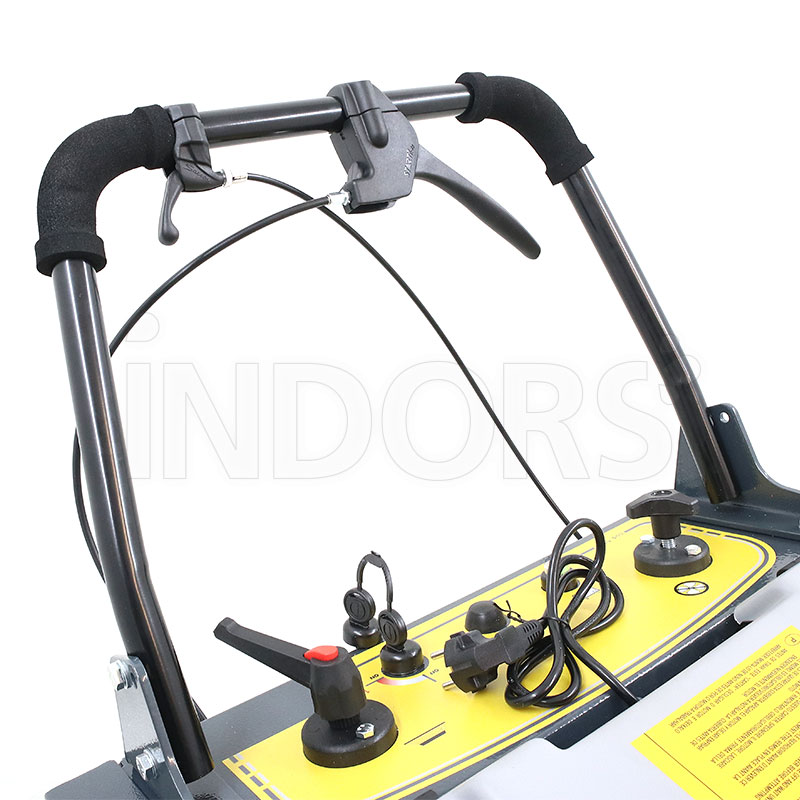

Reclining handle and sturdy frame

The reclining handle allows for easy maneuverability even in the tightest spaces, while the self-supporting steel frame ensures long-lasting durability and sturdiness.

Adjustable flap lifting and suction system

The flap lift system allows for handling large debris, while the suction selection switch allows for precise control during cleaning operations.

Characteristics

• Walk-behind sweeper
• Battery powered 24V 400W
• Working width 510 mm
• Hourly output 2620 m²/h
• 45 L collection container
• Forward speed 4 km/h
• Mechanical advancement
• Electric filter shaker
• Filtering surface 2 m2
• Central brush with soft bristles
• Collection tank with micro-holes for sand redistribution
• Central brush pressure regulation system
• Flap lifting system
• Self-supporting steel frame
• Reclining handle
• Antistatic device
• Non-marking side flaps

Standard Equipment

• Central brush with soft bristles - code 00080-05196
• 14 micron paper panel filter - code 00070-00427
• Closed collection drawer without micro-holes - code 00054-01369
• Collection tray with micro-holes - code 00054-01632
• Non-marking side flap - code 00005-02532
• PP side brush - 00080-04124
• Battery charger 12V 13A 220-240/50-60 - code 00056-00088
• 12V 105Ah C5 low maintenance gel battery - code 00055-00130
