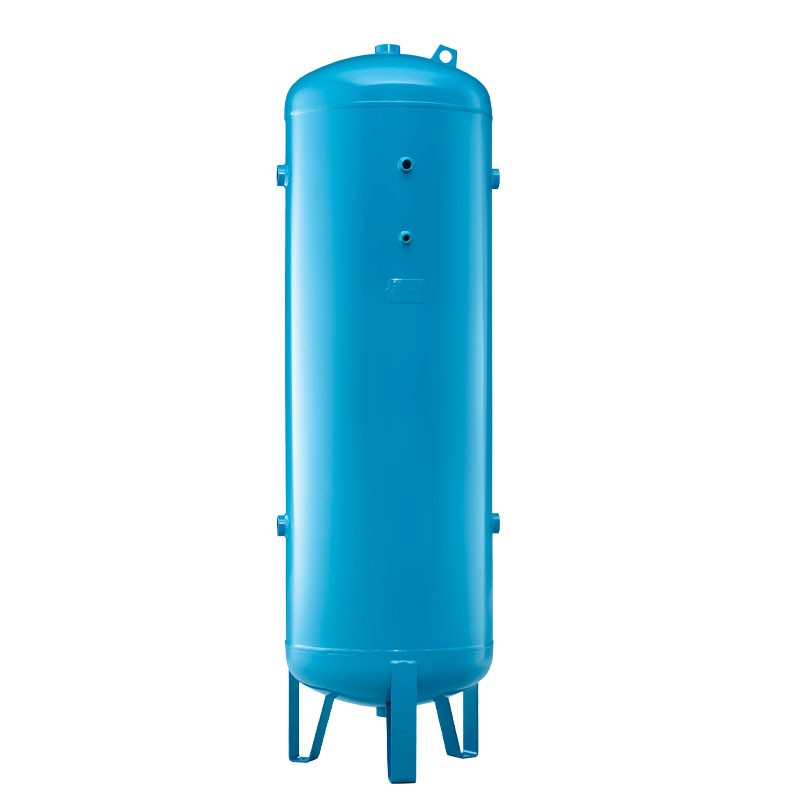

ABAC V500 11B
Compressed Air Tank 500 L 11 bar
MPN: 2236100973
500 L
11 bars
Painted
€698.00
€572.13 tax excl.
Warranty 2 years
Shipped on Pallet
ABAC V500 11B - Compressed Air Tank 500 L 11 bar
The ABAC vertical compressed air tank is designed in compliance with European safety regulations , ensuring reliability and protection in all applications.
The ABAC V500 11B Vertical Compressed Air Tank performs an air accumulation and storage function, particularly useful in the case of intermittent consumption, allowing the distribution system to temporarily manage an air requirement greater than the quantity produced by the compressor.
All ABAC tanks are supplied with the relevant accessory kits (as indicated in the "Accessory Kit Composition" table), ready for immediate use.
Vertical tanks are available in various capacities. For more information, please contact us.
Technical Specifications
This tank is finished in a durable RAL 5015 blue paint , which offers excellent protection against wear and corrosion , ensuring a long life even in the most demanding working conditions.
Manufactured in compliance with Directive 2014/29/EU , this tank supports an operating pressure of up to 11 bar , making it extremely versatile for various industrial needs.
The vertical configuration not only saves space, making it perfect for small spaces, but also facilitates access for maintenance operations and improves condensate drainage, increasing system efficiency.
Ideal for the storage of compressed air , this ABAC tank integrates easily into air management and distribution systems , ensuring reliable and safe performance, optimising overall efficiency and contributing to the reduction of operating costs.
Tank Dimensions
| Model | ØD mm | H total mm | h mm | the mm | m mm | to | b | c | d | And | f |
| V500 11B | 600 | 2055 | 170 | 775 | 1560 | 1'' | 1'' | 3/8'' | na | 2'' | 2'' |
Advantages
- Space saving: Smaller footprint, ideal for environments with limited space
- Accessibility: Ease of access to valves and control points
- Maintenance: Simplified inspection and cleaning thanks to the vertical arrangement
- Efficiency: Better drainage of condensates
- Structural stability: Optimized design for high pressure applications
- Versatility: Suitable for various system configurations
Accessory Kit Composition
| KIT A | KIT B | KIT C | |
| Pressure gauge tap | 1 | 1 | 1 |
| 3/8" ball valve | - | - | - |
| 3/4" ball valve | - | - | - |
| 1 1/4" manual drain tap | 1 | 1 | - |
| Safety valve | 1 | 1 | 1 |
| Manometer 50 mm / 100 mm | 1 | 1 | 1 |
| KIT 1 | KIT 2 | KIT 3 | KIT 4 | KIT 5 | KIT 6 | KIT 7 | KIT 8 | |
| 3/8 GAS EI C cap | 1 | 1 | - | 1 | - | 1 | - | - |
| 1/2" MF ball valve | 2 | 2 | 1 | - | - | - | 1 | 1 |
| 3/4" MF ball valve | - | - | 1 | 1 | 1 | 1 | - | - |
| Ball valve 1 MF | - | - | 1 | 1 | 1 | 1 | - | - |
| Reduction 1/2" M 3/8" F | 1 | 1 | 1 | - | - | - | - | - |
| 3/4" 1/2" reduction | 1 | - | - | - | - | - | 1 | 1 |
| 1 1/2" F reduction | - | 1 | - | - | - | 1 | - | - |
| 1 3/4" F reduction | - | - | 1 | 2 | 1 | - | - | - |
| Reduction 3/4" 3/8" | - | - | - | 1 | 1 | - | - | - |
| 3/8" 1/4" reduction | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Elbow fitting | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Safety valve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Manometer 50mm/100mm | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Galvanized fitting | - | - | 1 | 4 | 4 | 4 | 4 | 4 |
| Test flange | - | - | - | - | - | - | 1 | 1 |
Characteristics
- Painted tank
- For compressed air
- Capacity 500 L
- Pressure 11 bar
- Directive 2014/29/EU
Technical Data
| Model | V500 11B |
| Capacity | 500 L |
| Max Pressure | 11 bars |
| Directive | 2014/29/EU |
| Treatment | Painting |
| Kit Included | KIT 4 |
| Dimensions | 60 x 206 x 60 cm |
| Weight | 127 kg |
