ABAC V720 11B
Air Receiver Tank 720 L 11 bar
MPN: 2236100974
720 L
11 bar
Painted
€1,038.00
€850.82 tax excl.
Warranty 2
years
Shipped on Pallet

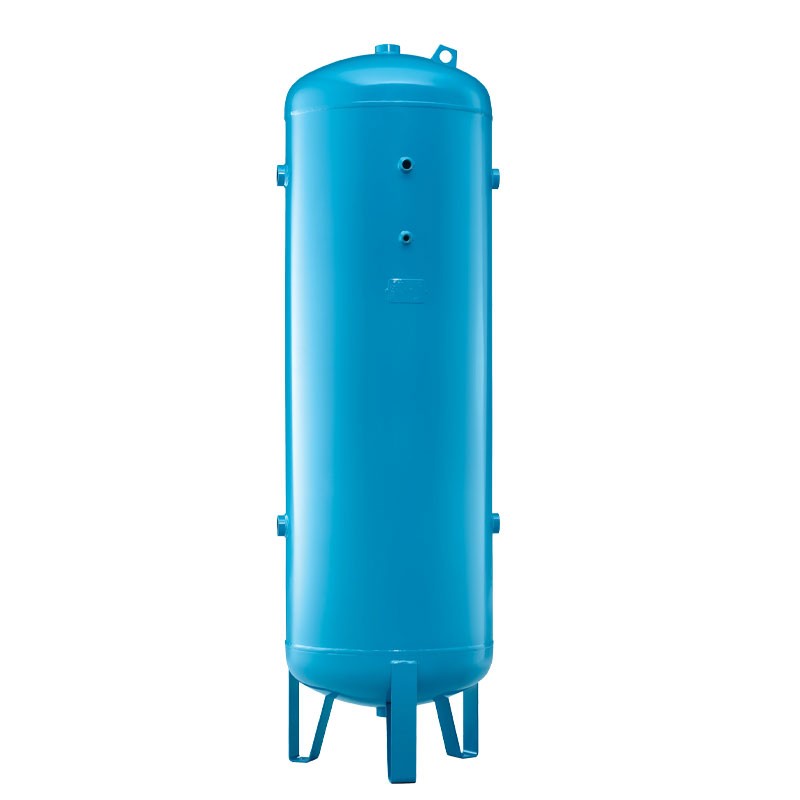

ABAC V720 11B - Air Receiver Tank 720 L 11 bar
The ABAC vertical air receiver tank is designed in compliance with European safety regulations, ensuring reliability and protection in all applications.
The ABAC V720 11B Vertical Air Receiver Tank serves to accumulate and store air, particularly useful for intermittent consumption, allowing the distribution system to temporarily manage air demand exceeding the compressor's production capacity.
All ABAC tanks are supplied with their accessory kits (as indicated in the "Accessory Kit Composition" table), ready for immediate use.
Vertical tanks are available in various capacities. For further information, please do not hesitate to contact us.
Technical Specifications
This tank is finished with a durable RAL 5015 blue paint, offering excellent protection against wear and corrosion, ensuring a long lifespan even in the most demanding working conditions.
Manufactured in compliance with Directive 2014/29/EU, this tank supports an operating pressure of up to 11 bar, making it extremely versatile for various industrial needs.
The vertical configuration not only saves space, making it perfect for confined areas, but also facilitates access for maintenance operations and improves condensate drainage, increasing system efficiency.
Ideal for compressed air storage, this ABAC tank integrates easily into air management and distribution systems, ensuring reliable and safe performance, optimizing overall efficiency, and contributing to reduced operating costs.
Tank Dimensions
| Model | ØD mm |
H tot mm |
h mm |
l mm |
m mm |
a | b | c | d | e | f |
| V720 11B | 800 | 2030 | 150 | 895 | 1705 | 2'' | 2'' | 3/8'' | 3/8'' | 2'' | 2'' |
Advantages
- Space Saving: Smaller footprint, ideal for areas with limited space
- Accessibility: Easy access to valves and control points
- Maintenance: Simplified inspection and cleaning due to vertical arrangement
- Efficiency: Improved condensate drainage
- Structural Stability: Optimized design for high-pressure applications
- Versatility: Suitable for various system configurations
Accessory Kit Composition
| KIT A | KIT B | KIT C | |
| Pressure Gauge Tap | 1 | 1 | 1 |
| 3/8" Ball Valve | - | - | - |
| 3/4" Ball Valve | - | - | - |
| 1 1/4" Manual Drain Valve | 1 | 1 | - |
| Safety Valve | 1 | 1 | 1 |
| Pressure Gauge 50 mm / 100 mm | 1 | 1 | 1 |
| KIT 1 | KIT 2 | KIT 3 | KIT 4 | KIT 5 | KIT 6 | KIT 7 | KIT 8 | |
| Plug 3/8" GAS EI C | 1 | 1 | - | 1 | - | 1 | - | - |
| 1/2" MF Ball Valve | 2 | 2 | 1 | - | - | - | 1 | 1 |
| 3/4" MF Ball Valve | - | - | 1 | 1 | 1 | 1 | - | - |
| 1" MF Ball Valve | - | - | 1 | 1 | 1 | 1 | - | - |
| Reduction 1/2" M 3/8" F | 1 | 1 | 1 | - | - | - | - | - |
| Reduction 3/4" 1/2" | 1 | - | - | - | - | - | 1 | 1 |
| Reduction 1 1/2" F | - | 1 | - | - | - | 1 | - | - |
| Reduction 1 3/4" F | - | - | 1 | 2 | 1 | - | - | - |
| Reduction 3/4" 3/8" | - | - | - | 1 | 1 | - | - | - |
| Reduction 3/8" 1/4" | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Elbow Fitting | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Safety Valve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pressure Gauge 50mm/100 mm | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Galvanized Fitting | - | - | 1 | 4 | 4 | 4 | 4 | 4 |
| Flange for Test | - | - | - | - | - | - | 1 | 1 |
Features
- Painted tank
- For compressed air
- Capacity of 720 L
- Pressure 11 bar
- Directive 2014/29/EU
Technical Data
| Model | V720 11B |
| Capacity | 720 L |
| Max Pressure | 10.8 bar |
| Directive | 2014/29/EU |
| Treatment | Painting |
| Included Kit | KIT 4 |
| Dimensions | 80 x 203 x 80 cm |
| Weight | 180 kg |
