ABAC V1000 12B
Compressed Air Tank 1000 L 12 bar
MPN: 2236100976
1000 L
12 bars
Painted
€1,188.00
€973.77 tax excl.
Warranty 2 years
Shipped on Pallet

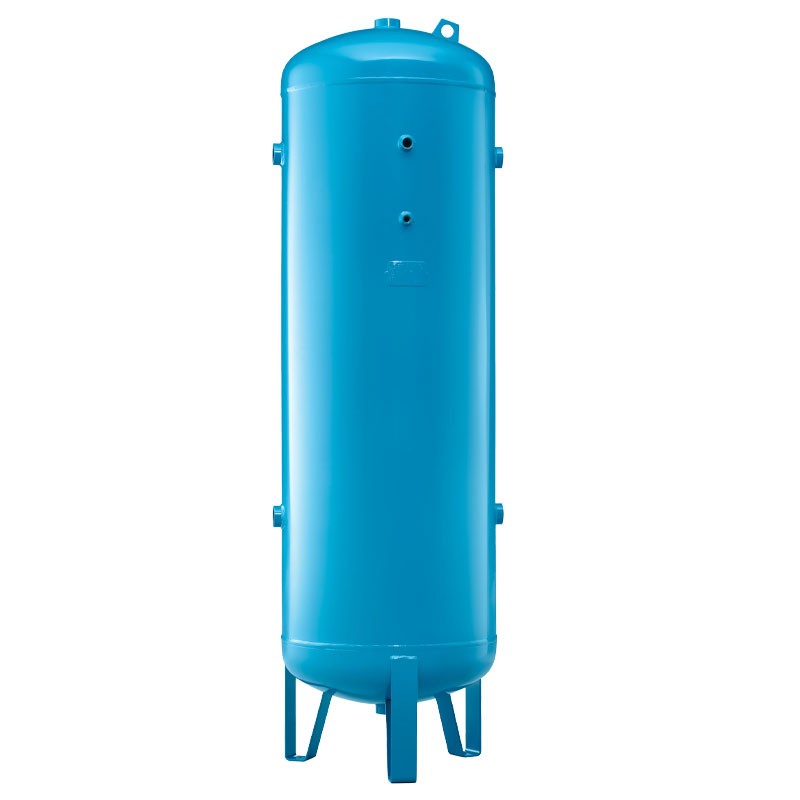

ABAC V1000 12B - 1000 L 12 bar Vertical Compressed Air Tank
The ABAC vertical compressed air tank is designed in compliance with European safety regulations , ensuring reliability and protection in all applications.
The ABAC V1000 12B Vertical Compressed Air Tank performs an air accumulation and storage function, particularly useful in the case of intermittent consumption, allowing the distribution system to temporarily manage an air requirement greater than the quantity produced by the compressor.
All ABAC tanks are supplied with the relevant accessory kits (as indicated in the "Accessory Kit Composition" table), ready for immediate use.
Vertical tanks are available in various capacities. For more information, please contact us.
Technical Specifications
This tank is finished in a durable RAL 5015 blue paint , which offers excellent protection against wear and corrosion , ensuring a long life even in the most demanding working conditions.
Manufactured in compliance with Directive 2014/29/EU , this tank supports an operating pressure of up to 12 bar , making it extremely versatile for various industrial needs.
The vertical configuration not only saves space, making it perfect for small spaces, but also facilitates access for maintenance operations and improves condensate drainage, increasing system efficiency.
Ideal for the storage of compressed air , this ABAC tank integrates easily into air management and distribution systems , ensuring reliable and safe performance, optimising overall efficiency and contributing to the reduction of operating costs.
Tank Dimensions
| Model | ØD mm | H total mm | h mm | the mm | m mm | to | b | c | d | And | f |
| V1000 12B | 800 | 2315 | 115 | 745 | 1685 | 2'' | 2'' | 3/8'' | 3/8'' | 2'' | 2'' |
Advantages
- Space saving: Smaller footprint, ideal for environments with limited space
- Accessibility: Ease of access to valves and control points
- Maintenance: Simplified inspection and cleaning thanks to the vertical arrangement
- Efficiency: Better drainage of condensates
- Structural stability: Optimized design for high pressure applications
- Versatility: Suitable for various system configurations
Accessory Kit Composition
| KIT A | KIT B | KIT C | |
| Pressure gauge tap | 1 | 1 | 1 |
| 3/8" ball valve | - | - | - |
| 3/4" ball valve | - | - | - |
| 1 1/4" manual drain tap | 1 | 1 | - |
| Safety valve | 1 | 1 | 1 |
| Manometer 50 mm / 100 mm | 1 | 1 | 1 |
| KIT 1 | KIT 2 | KIT 3 | KIT 4 | KIT 5 | KIT 6 | KIT 7 | KIT 8 | |
| 3/8 GAS EI C cap | 1 | 1 | - | 1 | - | 1 | - | - |
| 1/2" MF ball valve | 2 | 2 | 1 | - | - | - | 1 | 1 |
| 3/4" MF ball valve | - | - | 1 | 1 | 1 | 1 | - | - |
| Ball valve 1 MF | - | - | 1 | 1 | 1 | 1 | - | - |
| Reduction 1/2" M 3/8" F | 1 | 1 | 1 | - | - | - | - | - |
| 3/4" 1/2" reduction | 1 | - | - | - | - | - | 1 | 1 |
| 1 1/2" F reduction | - | 1 | - | - | - | 1 | - | - |
| 1 3/4" F reduction | - | - | 1 | 2 | 1 | - | - | - |
| Reduction 3/4" 3/8" | - | - | - | 1 | 1 | - | - | - |
| 3/8" 1/4" reduction | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Elbow fitting | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Safety valve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Manometer 50mm/100mm | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Galvanized fitting | - | - | 1 | 4 | 4 | 4 | 4 | 4 |
| Test flange | - | - | - | - | - | - | 1 | 1 |
Characteristics
- Painted tank
- For compressed air
- Capacity 1000 L
- Pressure 12 bar
- Directive 2014/29/EU / 2014/68/EU (PED)
Technical Data
| Model | V1000 12B |
| Capacity | 1000 L |
| Max Pressure | 12 bars |
| Directive | 2014/68/EU (PED) |
| Treatment | Painting |
| Kit Included | KIT 7 |
| Dimensions | 80 x 232 x 80 cm |
| Weight | 204 kg |
