Femi TR1030 DB/A
Radial mitre saw for wood
double inclination

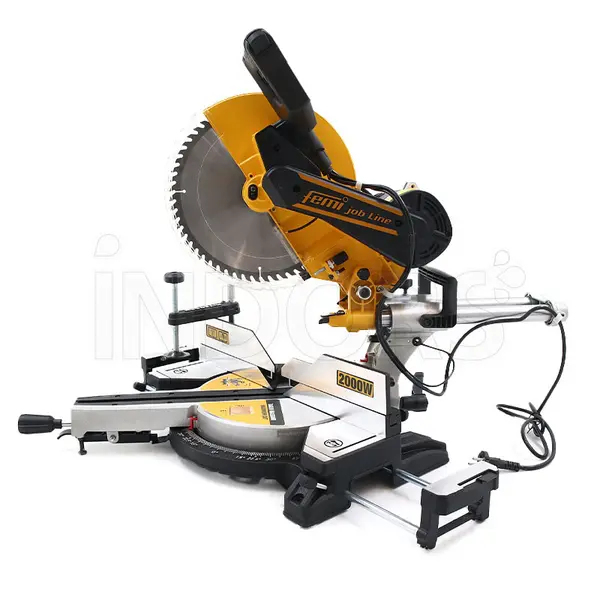

TR1030 DB/A - Double-inclination radial wood cutting machine

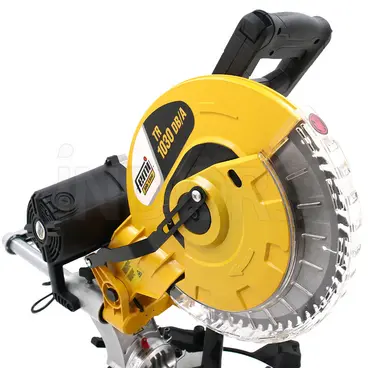

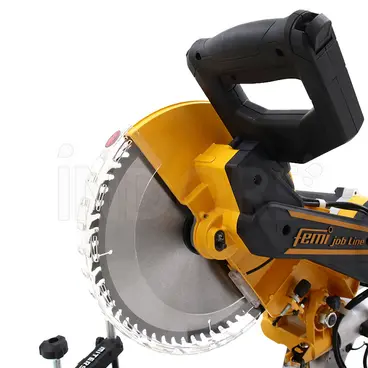

The TR1030 DB/A radial miter saw for wood is designed to offer precision, versatility and high performance in woodworking. Equipped with a 2000 W motor with belt transmission , it ensures constant power and clean cuts even on large panels with cuts up to 34 x 12 cm.

Femi TR1030 DB/A is characterized by a double blade inclination that allows precise angular cuts from 0° to 45° on both sides, while the rotating table with automatic block allows quick adjustments on the most common angles. The sturdy aluminum lateral extensions , the vertical clamp and the sliding bases improve the stability and safety of the workpiece.

Functional Specifications

Femi TR1030 DB/A is equipped with laser devices and integrated LED light on the handle allowing for high precision in cutting tracking, making this wood cutting machine ideal for those looking for reliability and professional performance. Equipped with double inclination to the Right and Left from 0 to 45°, it offers ample working flexibility. This radial miter saw is also designed for 33° angle cutting and the sliding side bases with cutting measurement indication allow for maximum control and precision.

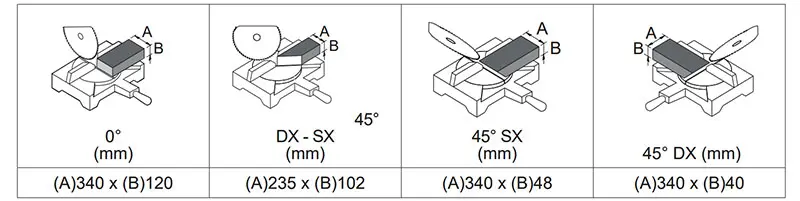

Cutting Capacity

Technical Specifications

The machine is equipped with a blade with a diameter of Ø 305 mm , with a maximum cutting capacity of 340 x 120 cm variable depending on the inclination. The engine has a power of 2000 W, with a rotation speed of 4500 RPM optimal for a smooth and precise cut without burrs. The inclination of the blade is adjustable from 0 to 45 ° on both sides , while the low weight favors handling without compromising stability.

The Femi TR 1030 DB/A cutting machine is specifically designed for radial cutting of large panels , also thanks to the presence of sturdy lateral extensions in aluminium with integrated release lever and a sturdy vertical clamp in aluminium for supporting the pieces.

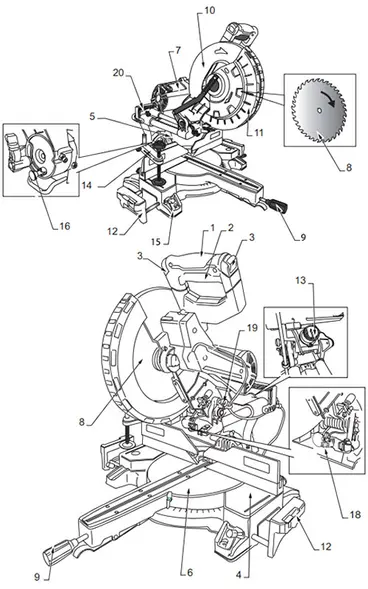

Characteristics

• 2000 Watt motor with belt drive
• Sturdy aluminum side extensions with integrated release lever
• Radial cut ideal for very wide panels
• Rotating table with automatic locking of precision angles from 0°-15°-22.30°-30°-45°
• 33° cutting angle predisposition
• Double inclination to make angular and inclined cuts from 0° to 45° right and left
• Laser devices and LED light included on the handle
• Sliding side bases with cutting measurement indication
• Sturdy vertical aluminum clamp for supporting pieces

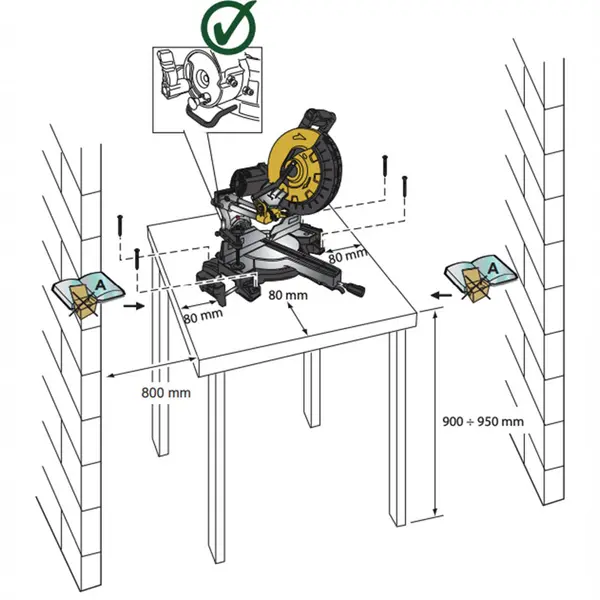

This Femi TR1030 DB/A Radial Wood Cutting Mitre Saw works to its full potential and in maximum safety when assembled according to the following indications:

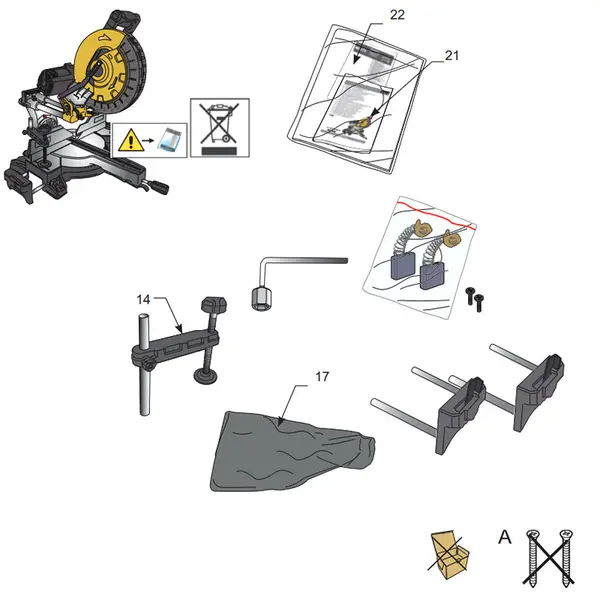

Standard Equipment

• Vertical clamp
• Dust bag
• Keys supplied
• Replacement engine carbon brushes set
• User Manual and Instructions
