Femi 1050 3D
Wood and Aluminum Cutting Machine
3 Functions

Femi 1050 3D - 3-function circular cutting machine for wood and aluminium

The Femi 1050 3D circular cutting machine stands out for the union of 3 products in a single machine: Cutting machine with upper table, Sliding and radial cutting machine, Bench circular saw . This union of functions allows you to work with a single product in different fields, without having to invest in different and bulky machines.

With a high cutting height of 60 mm it allows you to make cuts up to 305 x 90 mm . It is a reliable solution for woodworking, ideal for professional and industrial applications. Designed to ensure precision and stability, it is equipped with a robust structure and a powerful 1.8 kW motor that ensures consistent performance over time. The compact design and ease of use make it suitable for different operating contexts, offering a balance between efficiency and safety.

Functional Specifications

Femi 1050 3D is equipped with lateral extensions that allow for large cuts. In addition, there is a vertical clamp that blocks the piece to be cut, preventing it from slipping and ruining the work or causing injuries. This last situation is also prevented by the presence of a cutting blade protection on the upper plane.

This wood and aluminum cutting machine is equipped with a tilting cutting system that allows for precise angular cutting .

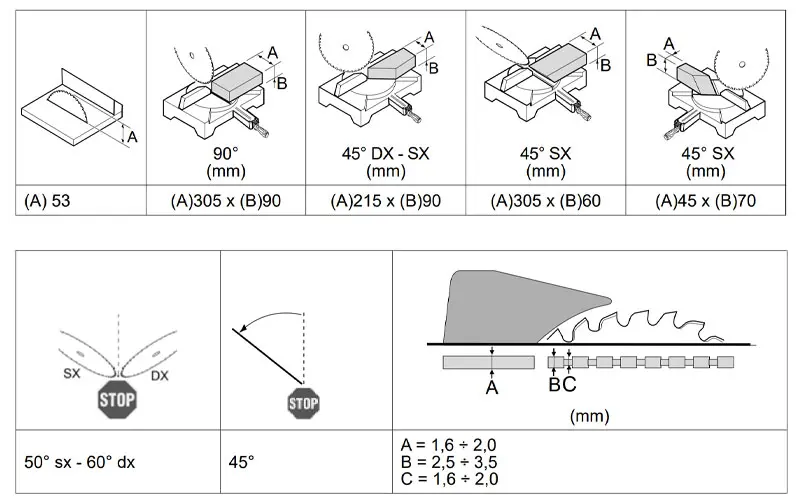

The cutting capacity, which varies depending on the inclination of the blade (see image below) allows you to work with pieces of various sizes , making it versatile for many needs in the carpentry sector.

Cutting Capacity

Technical Specifications

The engine of this Professional Wood and Aluminum Cutting Machine 1050 3D has a power of 1800 W , with a blade rotation speed of 3600 RPM which optimizes cutting on different types of material. The supplied blade has a diameter of 305 mm , with a 30 mm central hole . The inclination of the head varies from 0° to 45° with cutting angles of 60° right and 50° left with automatic lock 0° -15° - 22.5° - 30° - 45° .

Characteristics

• Powerful 1800W universal motor
• Three combined functions: Mitre saw with upper table, Sliding mitre saw, radial, Bench circular saw.
• Maximum upper plane cut for category 60 mm
• Cutting angles 60° right and 50° left
• Automatic cutting lock 0° -15° - 22.5° - 30° - 45°.
• Patented system for quick and easy function change from mitre saw to circular saw
• Radial slide bars with a diameter of 30 mm.
• Lateral extensions for large cuts
• Vertical clamp for locking the piece
• Blade guard for cutting on the upper surface

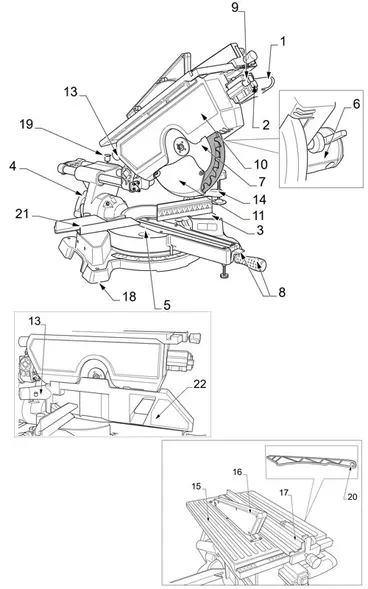

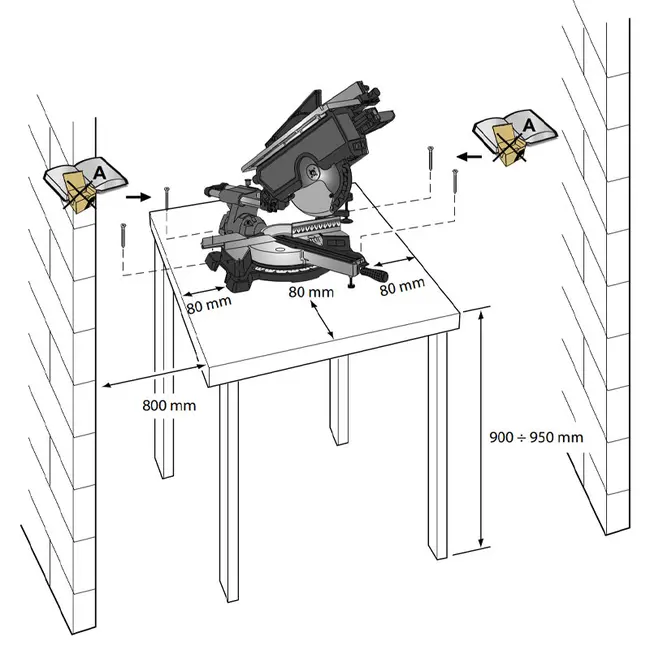

This Femi TR 100 Circular Wood Cutting Machine works to its full potential and in maximum safety when assembled according to the following indications:

Details

Standard Equipment

• Lateral extensions
• Vertical clamp
• Wood pusher / Service keys
• Bar stop rods
• User Manual and Instructions
