Femi TR100
Circular wood cutting machine
with upper table
MPN: 8436129
230V - Ø 305 mm
Max. cutting 185 x 85 mm
Tilt from 0° to 45°
€409.00
€335.25 tax excl.
Warranty 2 years
Shipped on Pallet

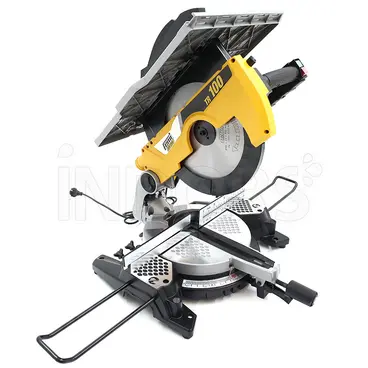

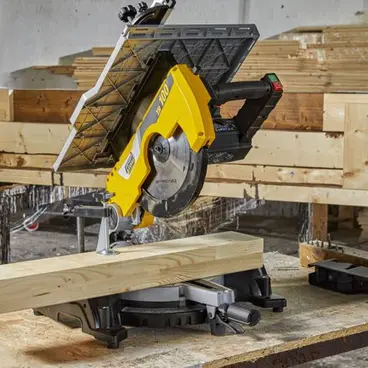

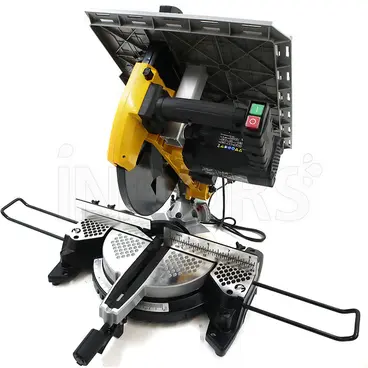

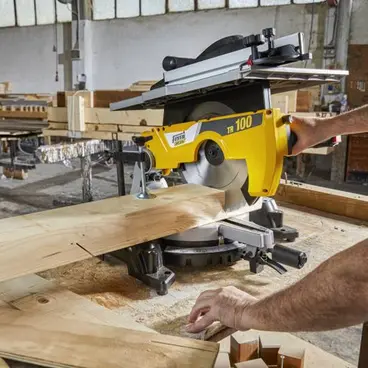

Femi TR100 - Circular wood cutting machine with upper table
The Femi TR100 circular wood cutting machine is a reliable solution for woodworking, ideal for professional and semi-professional applications. Designed to ensure precision and stability, it is equipped with a robust structure and a powerful motor that ensures constant performance over time. The compact design and ease of use make it suitable for different operating contexts, offering a balance between efficiency and safety.
Functional Specifications
Femi TR100 is equipped with a tilting cutting system that allows for precise angular work . The wide support base contributes to stability during use, while the blade protection guarantees greater safety for the operator.

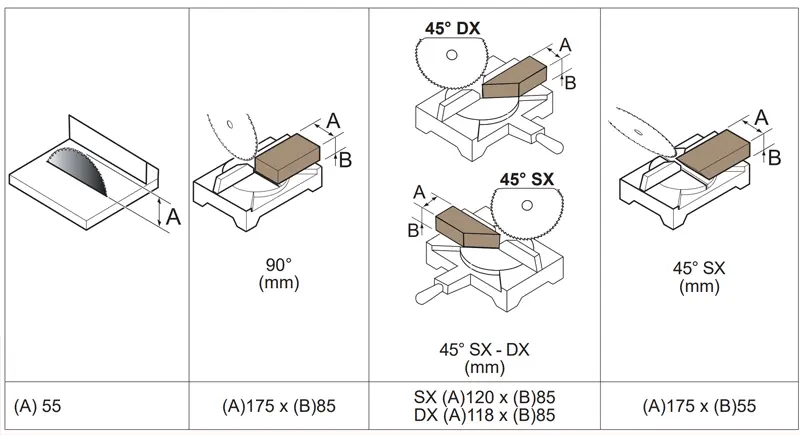

The cutting capacity, which varies depending on the inclination of the blade (see image below) allows you to work with pieces of various sizes , making it versatile for many needs in the carpentry sector.
Cutting Capacity
Technical Specifications
The engine of this TR100 Professional Wood Cutting Machine has a power of 1500 W , ensuring a blade rotation rate that optimizes cutting on different types of wood. The supplied blade has a diameter of 305 mm , with a 30 mm central hole . The inclination of the head varies from 0° to 45° , allowing greater flexibility in processing. The overall weight of the machine is 18 kg , ensuring a good compromise between stability and transportability.
- Control handle
- Gear switch
- Base
- Body/base joint
- Rotating stand
- Motor
- Lama
- Graduation unlock
- Body descent release button
- Fixed blade protection
- Movable blade protection
- Dust exhaust collector
- Support piece
- Piece holding clamp
- Upper worktop
- Superior mobile protection
- Support team
- Support feet
- Lock pin
- Protractor
- Pusher
- Sliding support
- Lower protection
- Dust collection bag
Machine details

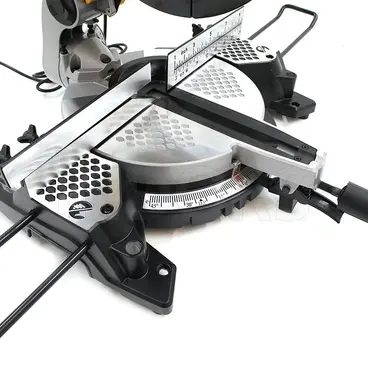

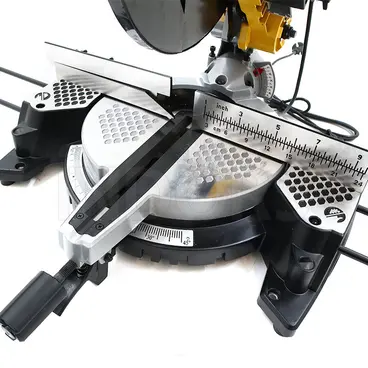

Support and Backing
Closed Machine and Rear View
Characteristics
- Powerful 2000 Watt universal motor
- Double guide table height adjustment device
- Solid and sturdy rear joint
- Large upper work surface
- Rotary table with precision adjustments for mitre cuts
- Tilting head for bevel cuts
- Structure entirely in die-cast aluminium
This Femi TR 100 Circular Wood Cutting Mitre Saw works to its full potential and in maximum safety when assembled according to the following instructions:
Standard Equipment
- Lateral extensions
- Vertical clamp
- Wood pusher / Service keys
- Bar stop rods
- User Manual and Instructions
Technical Data
| Engine power | 2000W |
| Power Supply | 230 V |
| Dimensions Max. cutting | 185 x 85 mm |
| Cutting Speed | 4200 1/min |
| Noise Lwa | 112.1dB(A) |
| Blade Diameter | Ø 305 mm |
| Cutting Height Upper Plane | 55mm |
| Cutting Head Tilting | from 0° to 45° |
| Packaging Dimensions | 59.5 x 57 x 44 cm |
| Weight | 19 kg |
Technical Data
| Engine power | 2000W |
| Power Supply | 230 V |
| Dimensions Max. cutting | 185 x 85 mm |
| Cutting Speed | 4200 1/min |
| Noise Lwa | 112.1dB(A) |
| Blade Diameter | Ø 305 mm |
| Cutting Height Upper Plane | 55mm |
| Cutting Head Tilting | from 0° to 45° |
| Packaging Dimensions | 59.5 x 57 x 44 cm |
| Weight | 19 kg |
