Svelt Roller S
Aluminium Scaffolding 1.9-7.1 m
Modular

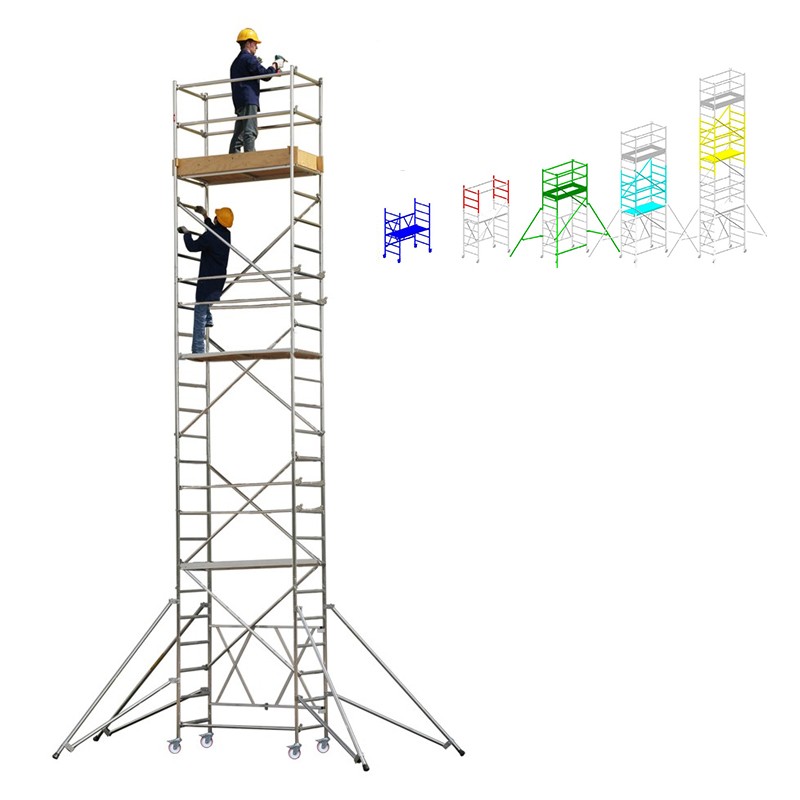

Svelt Roller S - Modular Aluminum Scaffolding in Modules from 1.9 to 7.1 m

The Roller S Aluminum Scaffolding is a professional scaffolding that can be composed of modules based on your needs. Equipped with a foldable base and quick-release crosspieces, it has a very light structure that allows it to be transported more easily.

The base has a footprint of 1.6 x 0.8 m and is made up of modular units that start from 1.96 m up to 7.10 m with a maximum working height of 8.06 m. These modules are relatively quick to assemble and easy to transport, making them ideal for painting and maintenance work.

Svelt Roller S is made of very light tubular aluminum alloy Ø 42 mm with non-slip knurled steps . This professional scaffolding is rustproof and is guaranteed for 5 years .

Each module is complete with everything needed based on the height that the module can reach. In this way the user automatically purchases everything needed for the European regulations EN1004.1.2 with maximum safety. Wall anchoring is not mandatory .

The main features of Svelt Roller S

• Base dimensions 1.60 x 0.80 m
• Folding base 1.96h m - 28 kg
• Aluminum Structure
• Load capacity 200 kg/m² (including two people)
• Knurled Steps
• Steps: 30 cm
• 4 wheels with brake Ø 125 mm
• Module C and E with trapdoor in Wiremes Multilayer Knurled
• Modular - can be assembled as desired

Purchasable Compositions

* Warning for the purchase of modules A+B+C+E (m 7.10). This module is for internal use only , for external use (presence of wind) it must be anchored or purchased with 4 ballasts (included in the code AROLLER710SN ).

Standard equipment depending on the purchased module and the height

• Module A : h 1.96 m - 27.50 kg
  composed of:
  • 1 foldable module (6 gr) equipped with n. 4 swivel wheels Ø mm 125 with brake
  • 1 floor with hatch
• Module D3 : h 0.90 - Kg 4.50
  composed of:

  • 2 intermediate shoulders (3 gr) to be tied with the crosspieces
• Module B : h 1.50 m - 34.15 kg
  composed of:
  • 2 terminal shoulders (4 gr)
  • 2 diagonal crosspieces
  • 2 reinforced parapets
  • 1 basic horizontal crosspiece
  • 2 reinforced knee pads
  • 1 set of 4 toe clips
  • 4 stabilizing brackets
• Module C : h 2.19 m - Kg 37
  composed of:

  • 2 intermediate shoulders (7 gr)
  • 2 diagonal crosspieces
  • 4 horizontal crosspieces (2 parapets and 2 intermediate knee pads)
  • 1 passageway with trapdoor
• Module E : h 1.50 m - 34.60 kg
  composed of:

  • 2 intermediate shoulders (5 gr)
  • 2 diagonal crosspieces
  • 4 horizontal crosspieces (2 parapets and 2 intermediate knee pads)
  • 1 passageway with trapdoor
• Module P:
  1 floor with trapdoor (without footrest)
• PA Modules:
  2 additional parapets
• Module F:
  4 toe clips (2 long, 2 short)
• Module S/S1:
  4 stabilizing brackets
• Module Z:
  4 weights for external use at 7.10

* In ROLLER S scaffolding compliant with European standards UNIEN1004.1.2, the walkways can be used without footboards. Anchoring is not mandatory.
* If the step surfaces are used for working, they must be completed with the footrest kit (see Module F accessories).

Watch the video

High technical quality and Made in Italy .

Accessories on Request

• TROLLER38 - Roller S ballast for external use > m 7.10 - 11.00 kg
• TROLLERS16 - Additional diagonal crosspiece 1.20 kg
• TROLLERS35 - Additional horizontal crosspiece (parapet) 1.48 kg
• TROLLERSFP - Module F (Kit of 4 toe clips) 4.80 kg
• TROLLERSPL - P Module (plan without footrest kit) 9.00 kg
• TROLLERSPA - PA Module (set of 2 parapets) 2.96 kg
• TROLLERSPB - PB Module (set of 2 intermediate knee pads) 3.00 kg
• TROLLERS0PS - Modulo S (set of 4 stabilizing brackets) 13.24 kg
• TROLLER49 - Modulo S1 (set of 4 mini steel brackets Modulo A) 6.00 kg
