Svelt SvelTower
Ultra-compact scaffolding
Quick assembly by 1 operator
Warranty 5
years
14 days to change your mind
Shipped on Pallet

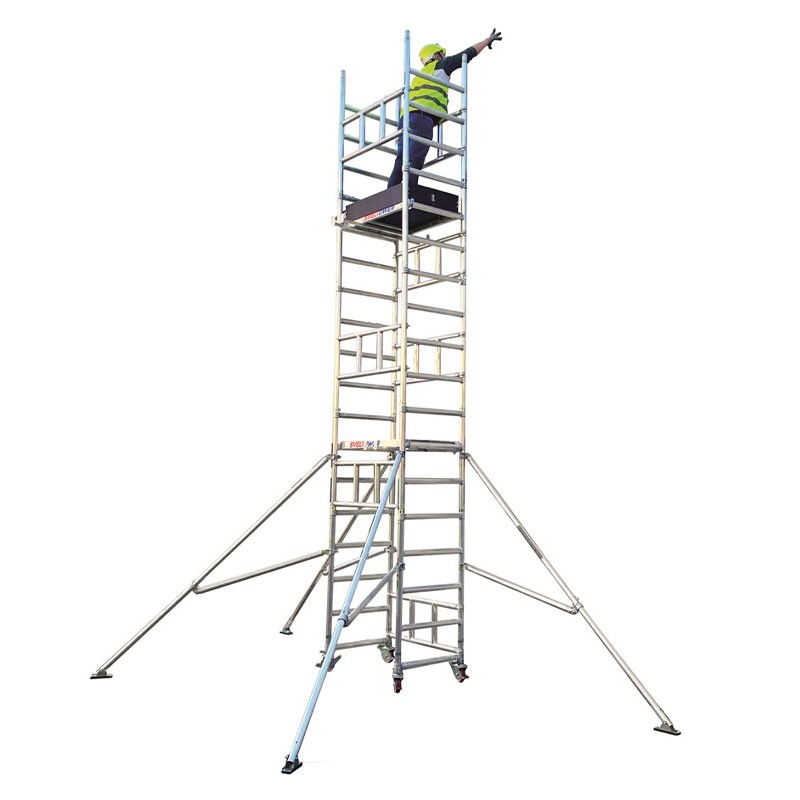

Svelt Sveltower - Ultra-compact Professional Aluminum Scaffolding h max 5.67 m.
PATENTED: SELF-ASSEMBLY!
The Svelt Sveltower Aluminum Scaffolding is specifically designed for professional use and is characterized by the extreme ease of rapid assembly by just 1 operator . Thanks to this configuration , a single operator is able to assemble it safely in less than 10 minutes without having to get down to the ground during assembly. When closed, the Sveltower Scaffolding has compact dimensions that make it very easy to transport .
With base dimensions of 74 x 110 cm, this scaffolding is modular , thanks to the possibility of assembling it according to modular modules of your choice with heights from 2.37 m to 5.67 m ( maximum working height 6.17 m ).
Svelt Sveltower is ideal for painting, installation, maintenance and similar jobs.
This professional outdoor scaffolding is made of a very light Ø 50 mm aluminum profile (1.2 mm thick). Easy to assemble, this professional scaffolding is rustproof and guaranteed for 5 years .
Each module is complete with everything needed based on the height that the module can reach. In this way the user automatically purchases everything needed for the European regulations UNIEN1004.1.2 with maximum safety. Wall anchoring is not mandatory.
The main features of Svelt Sveltower
- Base dimensions 74 x 110 cm
- Aluminum Structure
- Capacity 200 kg/m² (1 operator)
- 4 wheels Ø 125 mm with brake
- 4 legs of 15 cm
Purchasable Compositions
| Height to floor | Total Height | Working Height | |
| ATOWER187 | 0.87 m | 2.37 m | 2.87 m |
| ATOWER217 | 1.17 m | 2.67 m | 3.17 m |
| ATOWER277 | 1.77 m | 2.77 m | 3.77 m |
| ATOWER307 | 2.07 m | 3.27 m | 4.07 m |
| ATOWER397 | 2.97 m | 4.47 m | 4.97 m |
| ATOWER427 | 3.27 m | 4.77 m | 5.27 m |
| ATOWER487 | 3.87 m | 5.37 m | 5.87 m |
| ATOWER517 | 4.17 m | 5.67 m | 6.17 m |
Included in every purchase:
- 4 wheels ø 125 mm
- 4 adjustable legs: 150mm
- Protective railing
- Aluminum Walking Surface
- Wooden footrest kit
- Manual and instruction labels
Watch the video
Technical Specifications
- Can be assembled/disassembled by one person
- Quick and safe assembly in less than 10 minutes
- Rigid, lightweight, sturdy and durable
- Shelves equipped with removable hooks to support the components and avoid having to get down to the floor to retrieve them during assembly
- Compact to carry
- Minimum footprint during use even in small spaces
Functional specifications
Compact
The basic module of Sveltower transforms into a practical trolley that allows you to transport all the components required for assembly. This trolley forms the basis of the scaffolding to be assembled. With a width of just 74 cm and a depth of 110 cm , it can easily pass through doors, corridors and enter standard elevators, as well as vans.
Ideal for rental
Thanks to its ease of handling and transport, this scaffolding is perfectly suited for rental. The renter can easily store and deliver the scaffolding to customers directly in the trolley. This allows avoiding manual transport both in the delivery and return phases.
Pull-out Worktops
Worktops with quick-release brackets for supporting the
components. They avoid the continuous descent of the operator who finds all the
high-level components at your fingertips.
It can be assembled independently (1 operator)
The operator assembles the first modules from the ground. Before climbing onto the platform to assemble the next modules, he hangs all the components on the special extractable hooks inserted in the upper platform. In this way, when he climbs up for assembly, he will find all the components within reach and will not have to continuously go down to retrieve others.
High technical quality and Made in Italy .
5 year warranty
Svelt products are guaranteed for 5 years to demonstrate their high quality and reliability (valid only for Italy).
Accessories on Request
- Double Parapet
- Work Plan
- Stabilizer bracket
- Toe Clip Set
- 3-Rung Shoulder
- 4-Rung Shoulder
- Wheel Ø 125 mm with brake
- 15cm leg
Dati Tecnici
| Modello | ATOWER187 | ATOWER217 | ATOWER277 | ATOWER307 | ATOWER397 | ATOWER427 | ATOWER487 | ATOWER517 |
| Altezza al Piano m | 0,87 m | 1,17 m | 1,77 m | 2,07 m | 2,97 m | 3,27 m | 3,87 m | 4,17 m |
| Altezza Totale m | 2,37 m | 2,67 m | 2,77 m | 3,27 m | 4,47 m | 4,77 m | 5,37 m | 5,67 m |
| Altezza di Lavoro m | 2,87 m | 3,17 m | 3,77 m | 4,07 | 4,97 m | 5,27 m | 5,87 m | 6,17 m |
| Dimensioni della base | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm |
| N° Piani | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| N° Kit Fermapiedi | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Uso Interno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| Uso Esterno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| N° spalle 4 gr. | 2 | 4 | 2 | 4 | 4 | 6 | 4 | 6 |
| N° spalle 3 gr. | 2 | 0 | 4 | 2 | 4 | 2 | 6 | 4 |
| Parapetti | 3 | 3 | 4 | 4 | 6 | 6 | 7 | 7 |
| Peso totale | 47,5 kg | 49 kg | 79 kg | 80,5 kg | 100,5 kg | 102 kg | 109 kg | 111 kg |
Dati Tecnici
| Modello | ATOWER187 | ATOWER217 | ATOWER277 | ATOWER307 | ATOWER397 | ATOWER427 | ATOWER487 | ATOWER517 |
| Altezza al Piano m | 0,87 m | 1,17 m | 1,77 m | 2,07 m | 2,97 m | 3,27 m | 3,87 m | 4,17 m |
| Altezza Totale m | 2,37 m | 2,67 m | 2,77 m | 3,27 m | 4,47 m | 4,77 m | 5,37 m | 5,67 m |
| Altezza di Lavoro m | 2,87 m | 3,17 m | 3,77 m | 4,07 | 4,97 m | 5,27 m | 5,87 m | 6,17 m |
| Dimensioni della base | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm |
| N° Piani | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| N° Kit Fermapiedi | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Uso Interno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| Uso Esterno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| N° spalle 4 gr. | 2 | 4 | 2 | 4 | 4 | 6 | 4 | 6 |
| N° spalle 3 gr. | 2 | 0 | 4 | 2 | 4 | 2 | 6 | 4 |
| Parapetti | 3 | 3 | 4 | 4 | 6 | 6 | 7 | 7 |
| Peso totale | 47,5 kg | 49 kg | 79 kg | 80,5 kg | 100,5 kg | 102 kg | 109 kg | 111 kg |
