Attila ATMC 5420
Petrol Powered Cultivator with 212 cc Weima Engine

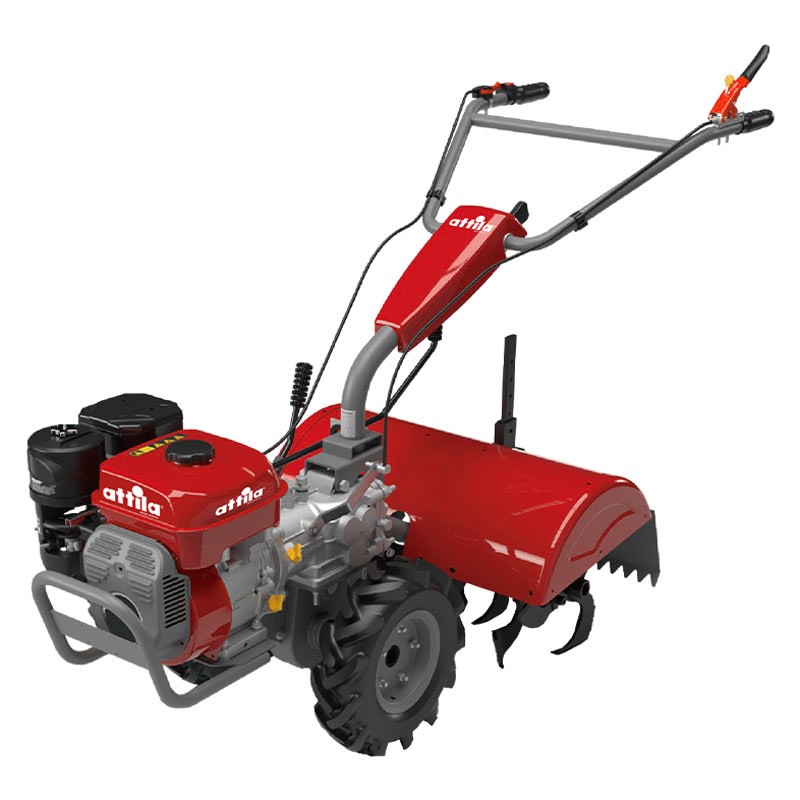

Attila ATMC 5420 - Professional Petrol Powered Cultivator with 212 cc Weima Engine

The Attila ATMC 5420 is a professional petrol-powered rotary cultivator designed to meet the needs of professionals in the agricultural and intensive gardening sectors. With a working width of 54 cm and a working depth of over 100 mm , this machine guarantees rapid and effective soil cultivation, for both superficial and deep preparation. The combination of an adjustable and foldable handle , soft grips , and balanced weight makes it ultra-maneuverable even in small spaces, significantly simplifying the most complex operations.

The heart of the cultivator is the powerful and reliable Weima WM170F/P engine , featuring low emissions and an oil-bath filtration system, which guarantees consistent performance even in harsh working conditions. Engaging and disengaging the rotary tillers directly from the handle and the adjustable rotary tiller unit for soft or hard soil are key features, making the Attila ATMC 5420 a versatile and high-performance professional choice.

Technical Specifications

The Attila ATMC 5420 is powered by a 212 cc Weima WM170F/P overhead valve petrol engine for high efficiency and performance. It features a manual recoil starter, designed to ensure quick and reliable starting even in the most difficult conditions. The cultivator features a gear transmission with two forward speeds and one reverse , allowing the speed to be adjusted according to the type of soil and the type of work required.

Its operational and construction dimensions confirm its professional setup: the working width of 54 cm and the depth of over 100 mm allow for effective tillage of both soft and compacted soils. The laterally adjustable and foldable handlebars , together with the sturdy front bumper , the 350x10 Tractor drive wheels and the weight of 75 kg , guarantee stability, control and safety during intensive use, without compromising the machine's overall manoeuvrability.

1. Deep sea harpoon
2. Tractor drive wheels 350x10
3. Robust front bumper
4. Adjustable and foldable handlebars

Functional Specifications

Adjustable and foldable handle for maximum comfort

The adjustable and foldable handlebars of the Attila ATMC 5420 allow the height and position of the handle to be adjusted to the operator's needs, reducing fatigue during long work sessions. The folding system facilitates storage in small spaces, making the tiller extremely practical even in professional settings with limited space.

Gear transmission and advanced gears

The gear transmission offers superior durability and precise machine response, while two forward speeds and one reverse allow you to adjust the speed based on the type of soil and desired working depth. This allows for optimal machine control even on the most challenging terrain.

Versatile rear cutter assembly

The rear rotary tiller unit can be set to rotate clockwise for soft soil and counterclockwise for hard soil, ensuring even, deep tillage without compromising soil quality. The depth gauge also allows for precise control of tilling depth.

Powerful and low-emission engine

The 212cc Weima WM170F/P overhead valve engine offers high performance, reliability, and significantly reduced emissions. The oil bath filter ensures constant lubrication, protecting internal components and extending the machine's life even under harsh operating conditions.

Tractor 350x10 drive wheels for optimal traction

The 350x10 Tractor drive wheels ensure excellent traction on all types of terrain, improving stability and control during cultivation. Combined with the balanced weight of 75 kg, these wheels ensure smooth and safe progression, reducing slippage and improving the overall efficiency of the tiller.

Characteristics

• Weima WM170F/P OHV engine
• Displacement 212 cc
• Tractor drive wheels 350x10
• Working width 54 cm
• 2 forward gears + reverse
• Deep sea harpoon
• Adjustable and foldable handlebars
