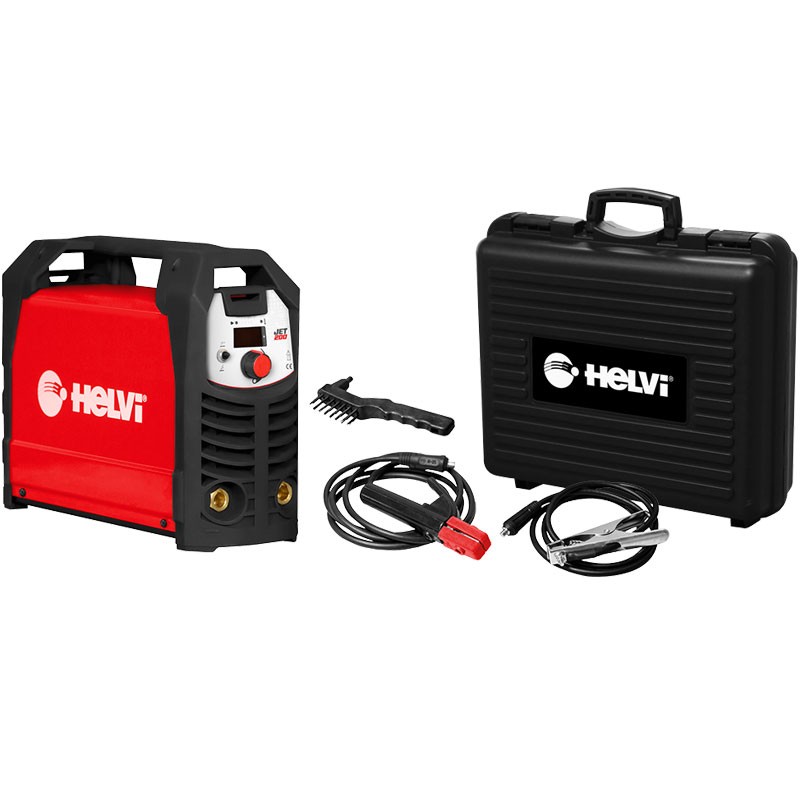

Helvi Inverter JET 200 + Suitcase Kit
MMA TIG Welder 6.7 kVA

Helvi Inverter JET 200 + Suitcase Kit - Professional MMA TIG Welder

The Helvi JET 200 inverter welder + Case Kit cod. 99806028 is a professional solution for MMA and TIG Lift welding, ideal for those looking for power, portability and maximum reliability. It works with a 230V power supply and offers a power of 6.7 KVA at 60% , guaranteeing high performance even in intensive jobs. The 10–200A adjustment range allows the use of 6013 and 7018 electrodes with diameters from 1.6 to 4.0 mm , adapting to multiple uses. The machine integrates advanced functions such as Arc Force , Hot Start , Anti-Sticking , voltage compensation and TIG LiftArc mode.

Functional specifications

Complete and professional MMA/TIG welder

Helvi JET 200 cod. 99806028 is an inverter welder designed to offer high performance in a compact and lightweight format. This Helvi welder is ideal for MMA and TIG Lift welding , guaranteeing great precision, arc stability and reliability even under prolonged use. The kit includes a shockproof, robust and practical case, perfect for transporting the welder and its accessories in complete safety.

Superior performance 10-200 A and power 6.7 kVA

The Helvi JET 200 operates on a single-phase 230V 50/60Hz power supply and delivers 6.7 kVA of power at 60%, making it ideal for more demanding jobs. The 70V no-load voltage ensures rapid and stable ignition. Current regulation from 10 to 200A allows for a wide range of applications, from maintenance to metalwork. The duty cycle – 200A at 35% , 150A at 60% , and 120A at 100% – allows for continuous use without overheating.

Advanced MMA and TIG Lift Arc functions

The welder supports electrodes from 1.6 to 4.0 mm, including the common 6013 and the more technical 7018, widely used in carpentry. Furthermore, the Helvi JET 200 integrates a series of automatic functions that improve welding quality: Arc Force, Hot Start, Anti-Sticking, line voltage compensation, and efficiency even with power generators. For TIG welding, the TIG LiftArc mode is available, which ensures a clean and controlled start.

Compact and lightweight structure

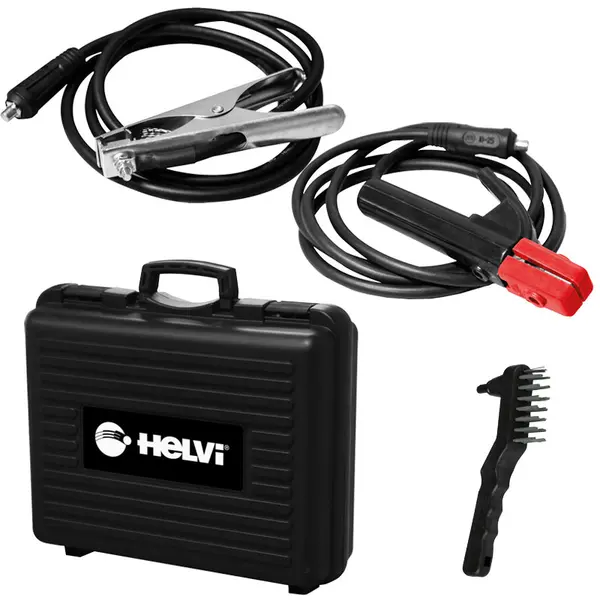

The Helvi Jet 200 weighs only 5.4 kg and is extremely easy to handle. Its compact size makes it easy to transport, further facilitated by the shockproof case included in the kit. The package also includes :

• Ground cable 2 m – 16 mm² - code 43210257
• Welding cable with electrode holder 3 m - 16 mm² - code 43205129
• Marto Brush - code 21905039
• Dedicated shockproof case - code 21690996

Optional

Available upon request:

• 99900099 - MMA welding kit • 25 mm² · 3 + 2 m • conn. 50 mm²

Type of welding possible with Helvi Jet 200

• • MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
  • TIG : requires low voltage and therefore consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more resistant, therefore it is usually used for visible parts and for processes requiring precision.

Characteristics

• MMA
• TIG
• Professional use
• Made in Italy
• Compact
• Easy to use, intuitive
• Single-phase
• Advanced automatic systems

• Ecodesign
• Display
• Forced Ventilation Cooling
• Suitable for use with a power generator
• Voltage Compensation
• 50 mm² connector
• Electrode Welding
• Optimal Current Management
• Hot Start Management
• Avoid Electrode Sticking
• Tig
• Lift Arc

Standard Equipment Shockproof Suitcase Kit

• Helvi Jet 200 Welder
• Ground cable 2 m – 16 mm² - code 43210257
• Welding cable with electrode holder 3 m - 16 mm² - code 43205129
• Marto Brush - code 21905039
• Dedicated shockproof case - code 21690996
