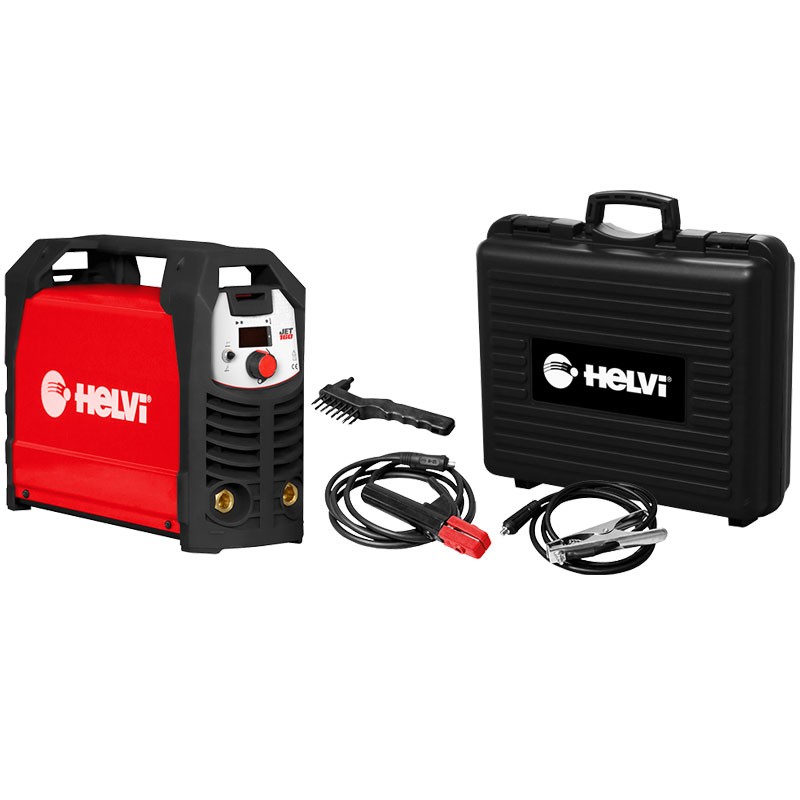

Helvi Inverter JET 160 + Suitcase Kit
MMA TIG Welder 6.4 kVA

Helvi Inverter JET 160 + Suitcase Kit - Professional MMA TIG Welder

The Helvi JET 160 inverter welder with shockproof case kit code 99806027 is a compact, reliable and powerful solution for MMA and TIG Lift welding jobs. It works with a single-phase 230V 50/60Hz power supply and offers a power of 6.4 KVA at 60% , ideal for professional and hobby use. The adjustment range from 10 to 160 A allows for high versatility , while the duty cycle guarantees constant performance. It supports 6013 and 7018 electrodes with diameters from 1.6 to 4.0 mm . Helvi JET 160 integrates advanced functions such as Arc Force , Hot Start , Anti-Sticking , as well as the TIG LiftArc mode.

Functional specifications

Complete and professional MMA/TIG welder

Helvi JET 160 cod. 99806027 is an inverter welder designed to offer high performance in a compact and lightweight format. This Helvi welder is ideal for MMA and TIG Lift welding , guaranteeing great precision, arc stability and reliability even under prolonged use. The kit includes a shockproof, robust and practical case, perfect for transporting the welder and its accessories in complete safety.

Power 6.4 kVA and current range 10-160 A

The JET 160 operates on a single-phase 230V 50/60Hz power supply, making it suitable for workshops, construction sites, maintenance work and advanced hobby use. The machine delivers a power of 6.4 KVA at 60% , with a no-load voltage of 70V for easy striking. The 10–160A current range allows it to tackle a wide range of jobs, from thin electrodes for small jobs to larger diameters for structural work. The duty cycle guarantees operational continuity: 160A at 35% , 120A at 60% and 100A at 100% .

Advanced MMA and TIG Lift Arc functions

The welder supports electrodes from 1.6 to 4.0 mm, including the common 6013 and the more technical 7018, widely used in carpentry. Furthermore, the Helvi JET 160 integrates a series of automatic functions that improve welding quality: Arc Force, Hot Start, Anti-Sticking, line voltage compensation, and efficiency even with power generators. For TIG welding, the TIG LiftArc mode is available, which ensures a clean and controlled start.

Compact and lightweight structure

The Helvi Jet 160 weighs only 5.2 kg and is extremely easy to handle. Its compact size makes it easy to transport, further facilitated by the shockproof case included in the kit. The package also includes :

• Ground cable 2 m – 16 mm² - code 43210257
• Welding cable with electrode holder 3 m - 16 mm² - code 43205129
• Marto Brush - code 21905039
• Dedicated shockproof case - code 21690996

Optional

Available upon request:

• 99900099 - MMA welding kit • 25 mm² · 3 + 2 m • conn. 50 mm²

Type of welding possible with Helvi Jet 160

• • MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
  • TIG : requires low voltage and therefore consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more resistant, therefore it is usually used for visible parts and for processes requiring precision.

Characteristics

• MMA
• TIG
• Professional use
• Made in Italy
• Compact
• Easy to use, intuitive
• Single-phase
• Advanced automatic systems

• Ecodesign
• Display
• Forced Ventilation Cooling
• Suitable for use with a power generator
• Voltage Compensation
• 50 mm² connector
• Electrode Welding
• Optimal Current Management
• Hot Start Management
• Avoid Electrode Sticking
• Tig
• Lift Arc

Standard Equipment Shockproof Suitcase Kit

• Helvi Jet 160 Welder
• Ground cable 2 m – 16 mm² - code 43210257
• Welding cable with electrode holder 3 m - 16 mm² - code 43205129
• Marto Brush - code 21905039
• Dedicated shockproof case - code 21690996
