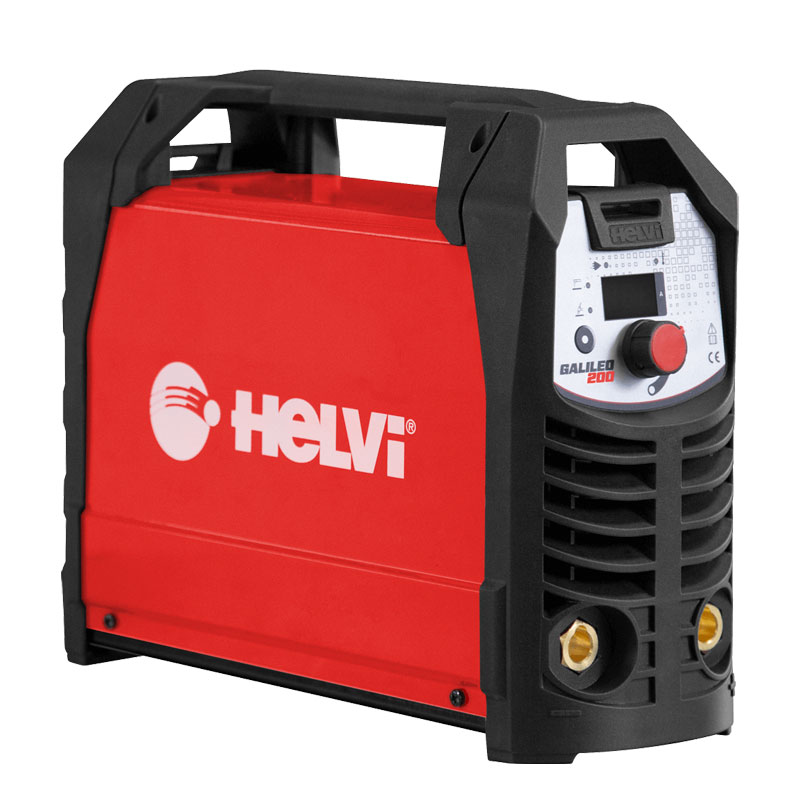

Helvi Galileo 200 + Bag Kit - Professional MMA Inverter Welder

Helvi Galileo 200 Kit Bag and Accessories cod. 99806032 is a complete kit for electrode and TIG welding , which includes the powerful Helvi Galileo 200 welding machine. Thanks to EcoDesign technology, the Air Cooling system and the VRD and Power Generator Friendly functions, this welding machine ensures safety, efficiency and compatibility with generators. The advanced electronics with Line Voltage Compensation keeps the arc stable even in the event of voltage drops. The MMA modes integrate dedicated adjustments such as Adj Arc Force , Adj Hot Start and Anti Sticking , while the TIG LiftArc function allows for quality TIG welding. The adjustable current from 5 to 200A and the open-circuit voltage of 70V guarantee versatility with 6013 and 7018 electrodes up to 4 mm .

Functional specifications

Complete and professional MMA/TIG welder

The Helvi Galileo 200 Bag and Accessories Kit (code 99806032) is one of the most reliable and advanced solutions in the MMA inverter welding sector. Designed for professionals, maintenance workers and expert enthusiasts, the Helvi Galileo 200 combines power, technology and practicality in a single package complete with bag and cables. The MMA TIG welder integrates advanced functions that improve welding quality , arc stability and operator safety .

High performance: up to 200A with full arc control

The welder operates at 230V 50/60Hz with a power of 6.9 kVA at 60 % and adjustable current from 5 to 200A . The duty cycle guarantees continuity: 200A at 50% , 160A at 60% and 140A at 100% . The functions dedicated to MMA welding – Adjustable Arc Force , Adjustable Hot Start and Anti Sticking – improve ignition, arc stability and prevent the electrode from sticking. Compatible with 6013 and 7018 electrodes from 1.6 to 4 mm, the machine also offers TIG Mode with TIG LiftArc ignition, ideal for cleaner and more precise work.

Advanced technology and professional performance

The Helvi Galileo 200 stands out for its high-level technical features. It complies with the CE EcoDesign standard, ensuring optimized consumption, and is equipped with Air Cooling for constant heat dissipation . The VRD (Voltage Reduction Device) function increases safety by reducing the open-circuit voltage when not welding. Thanks to Power Generator Friendly technology, it can also be used with generators , while Line Voltage Compensation keeps the arc stable even in the presence of voltage fluctuations. The front display allows for precise current adjustment.

Compact, robust and easy to transport

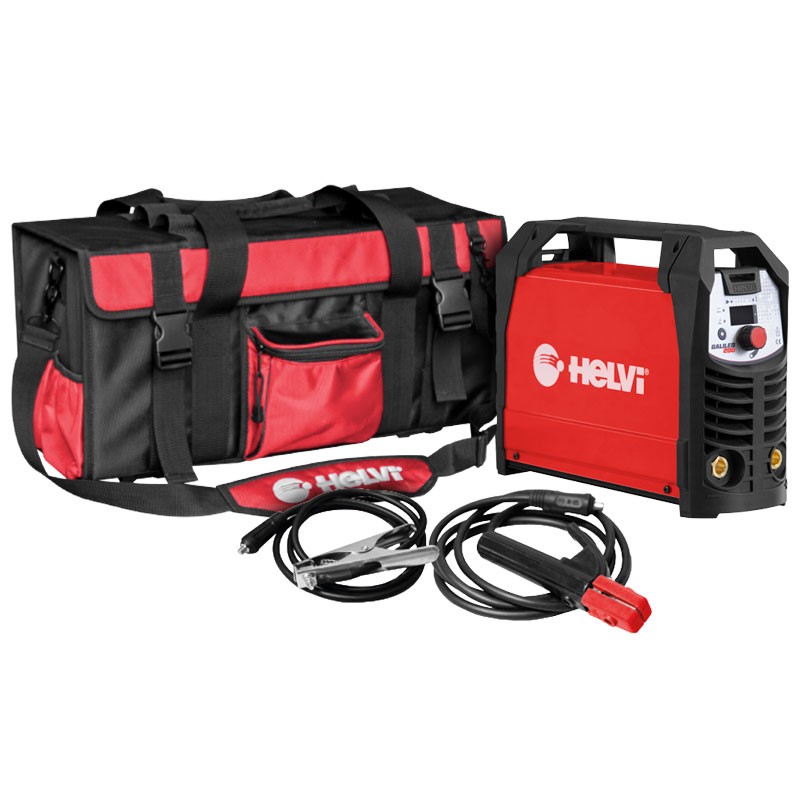

Weighing just 7 kg, the Helvi Galileo 200 is extremely easy to handle. The kit includes a reinforced Helvi bag, designed to safely transport the welder and accessories. The robust construction and 50mm Heavy Duty connector ensure long-lasting durability and on-site resistance. The kit includes:

• Earth cable · 25 mm2 · 2.0 m · conn. 50 mm² - code 43210170
• Welding cable · 25 mm² · 3.0 m · connector 50 mm² - code 43205097
• Helvi M bag · 450x220x270 mm - cod. 21905178K

Optional

Available upon request:

• 99900099 - MMA welding kit • 25 mm² · 3 + 2 m • conn. 50 mm²

Type of welding possible with Helvi Galileo 200

• • MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
  • TIG : requires low voltage and therefore consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more resistant, therefore it is usually used for visible parts and for processes requiring precision.

Characteristics

• MMA
• TIG
• Professional use
• Made in Italy
• Compact
• Easy to use, intuitive
• Single-phase
• Advanced automatic systems

• Ecodesign
• Display
• Forced Ventilation Cooling
• Suitable for use with a power generator
• Voltage Compensation
• 50 mm² connector
• Heavy Duty
• VRD
• Electrode Welding
• Optimal Current Management
• Hot Start Management
• Avoid Electrode Sticking
• Tig
• Lift Arc

Standard Equipment Bag Kit

• Galileo 160 - code 99806029
• Earth cable · 25 mm2 · 2.0 m · conn. 50 mm² - code 43210170
• Welding cable · 25 mm² · 3.0 m · connector 50 mm² - code 43205097
• Helvi M bag · 450x220x270 mm - code 21905178K
