Lavor HLR 2021 LP
Industrial Pressure Washer

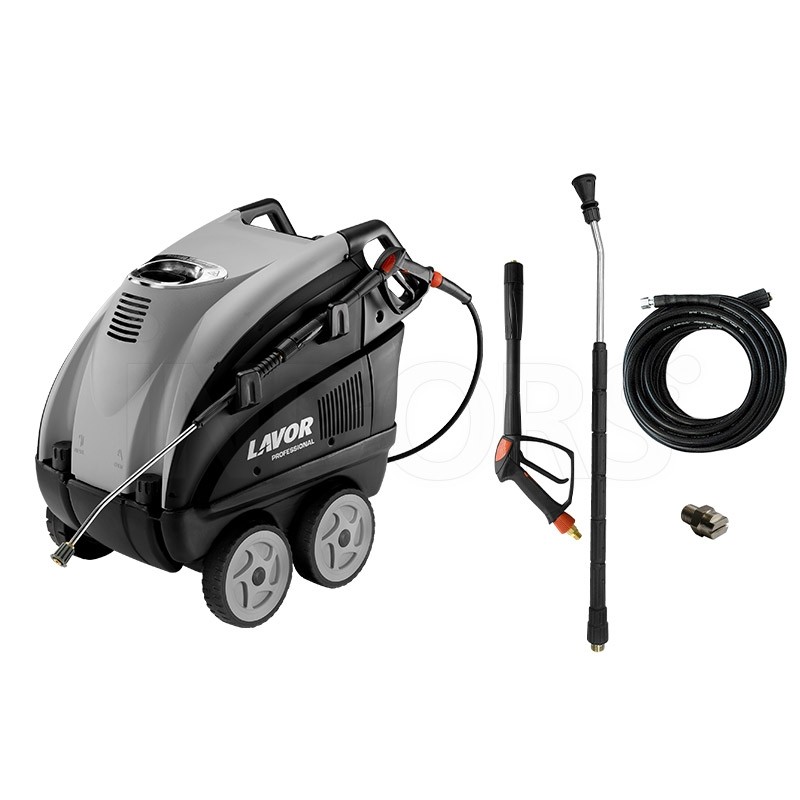

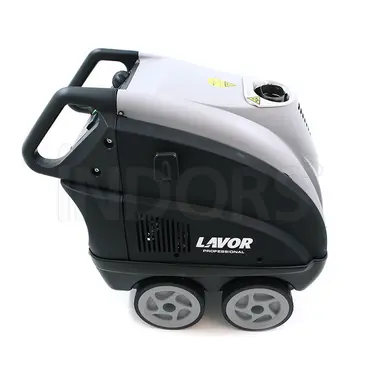

Lavor HLR 2021 LP - Three-Phase Hot Water Pressure Washer

The Lavor HLR 2021 LP is a hot water pressure washer designed for highly professional use , suitable for washing cars and machinery , garden equipment , floors, external walls, paint stripping and sandblasting , bathrooms, swimming pools , etc.

Maximum reliability , use of the best components and guarantee of very high performance.

Technical specifications

MPWJ5 Ni series pump and electric motor

Equipped with a MPWJ5 Ni series pump unit with nickel-plated brass head, high-temperature 3-piston ceramic seals with by-pass valve. This hot water pressure washer is equipped with a 4-pole electric motor (1450 RPM) with thermal protection , water-cooled .

Auxiliary engine

This pressure washer has an auxiliary motor for boiler ventilation .

Vertical boiler

The Lavor HLR 2021 LP vertical boiler has a steel coil and is highly thermally efficient .

Elastic joint

The Lavor HLR 2021 LP features a flexible coupling between the pump and the motor for better coupling . This reduces work stress , especially during start/stop phases.

Safety and protection

This pressure washer features a delayed and low-pressure Total Stop , and stainless steel suction and delivery valves. The suction and delivery valves are made of stainless steel. The temperature regulator has a highly sensitive stainless steel sensor.

Tanks

This pressure washer has a 3 L detergent tank and an 18 L diesel tank .

Pressure washer details

Characteristics

• 4-pole electric motor (1450 RPM) with thermal protection.
• Water cooling.
• Linear pump group.
• Nickel-plated brass head with 3 ceramic pistons and by-pass valve.
• Built-in elastic coupling for better pump/motor coupling
• Low voltage delayed total stop.
• Stainless steel suction and delivery valves.
• Vertical boiler with high thermal efficiency steel coil.

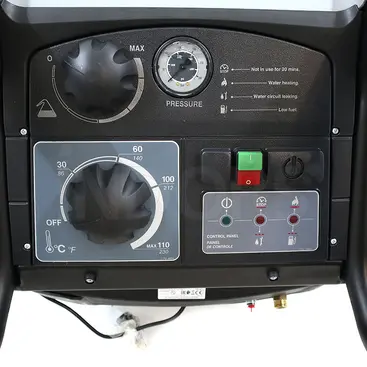

• Temperature controller with high sensitivity stainless steel sensor.
• Integrated detergent tank (3 litres) for indirect suction
• Diesel tank (18 litres)
• Auxiliary motor for boiler ventilation.
• Highly resistant steel frame.

Standard Equipment

• M22 gun - 3/8 with swivel fitting - code 00080-01695
• M22 high/low pressure lance - code 00080-01715
• Nozzle 070 - code 00080-03193
• High pressure hose 10 m - code 00080-02347

Optional Equipment

• Hose reel with brake (hose not included) - code 10001-13221
• Water tray - code 10002-16460
• LC-PRECAL limescale remover (4 pieces x 5 L) - code 00073-00114
• Lancia Turbo - code 00080-02968
• Sandblasting lance - code 00080-02959
• High pressure hose 10 m 310 bar - cod. 00080-02258
• High pressure hose 20 m 400 bar - code 00080-02261
• High pressure hose 10 m R2 - cod. 00080-02264
• High pressure hose 20 m 400 bar - code 00080-02262
• 10 m high pressure hose 400 bar food industry - code 00080-02263
