CGM DUAL 15000 SP
15 kW Petrol Generating Set
230V/400V - 15 kW - 12 V
713 cc - 15,6 HP
BENZINA 4 TEMPI

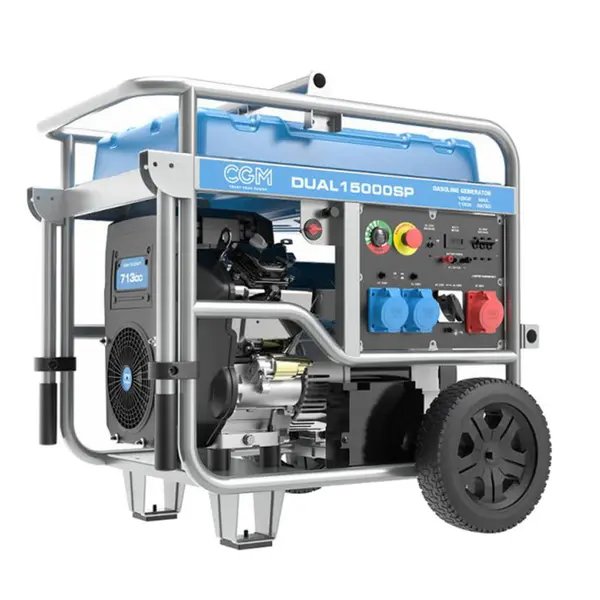

CGM DUAL 15000 SP - Full Power 15 kW Petrol Generator Set
CGM DUAL 15000 SP is a petrol current generator with a maximum power of 15 kVA - 12 kW cos φ 0.8 and a maximum power of 13.8 kVA - 11 kW cos φ 0.8 . CGM DUAL 15000 SP is equipped with a CGM OHV720 engine , Stage V emissions regulations, with engine power of 21 HP - 15.6 kW .

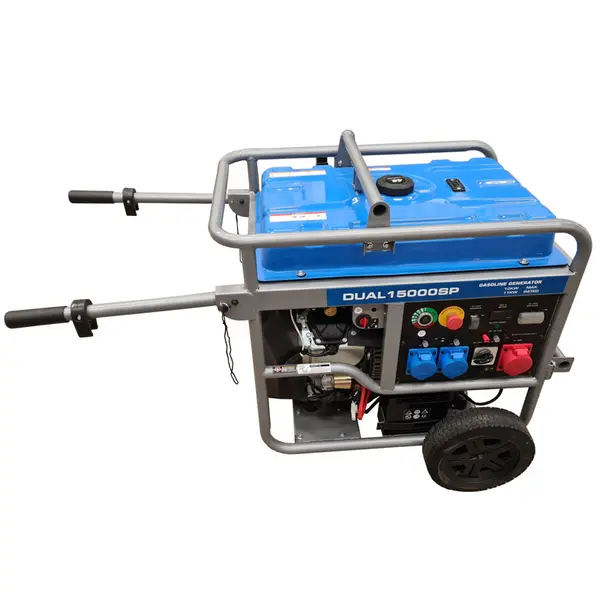

The engine produces 3000 RPM , has 2 cylinders , a displacement of 713 cc and a 12 V battery electric starting system. Generating set with high autonomy tank and trolley for easy handling , equipped with single-phase/three-phase voltage selector and complete manual panel that easily adapts to various uses.
CGM DUAL 15000 SP consumes 4.9 L/h at 75% load , the tank has a capacity of 40 L. The alternator is of the self-excited type with brushes , features AVR voltage regulation and a voltage precision of ± 1% .
Characteristics
- Petrol fuel
- CGM OHV720 engine
- 21 HP engine

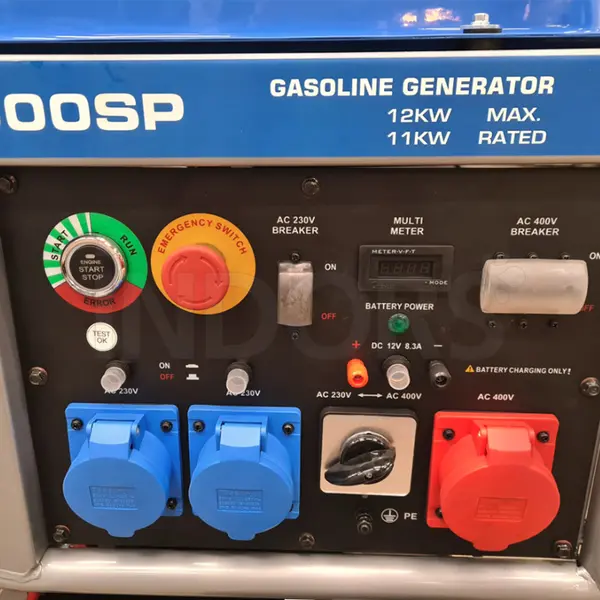

- Full Power single-phase/three-phase voltage selector
- Maximum power of 15 kVA - 12 kW cos φ 0.8 - 400V
- Maximum power of 13.8 kVA - 11 kW cos φ 0.8 - 230V
- Engine speed 3000 RPM
- Displacement 713 cc
- 12 V battery electric starter
Technical data
Motor | CGM OHV720 |
Emissions Regulations | Stage V |
Maximum single-phase power | 13.8 kVA - 11 kW cos φ 0.8 |
Maximum three-phase power | 15 kVA - 12 kW cos φ 0.8 |
Engine Power | 15.6 kW - 21 HP |
Engine rpm | 3000RPM |
Number of Cylinders | 2 |
Starting System | Electric - Pull |
Drums | 12V |
Displacement | 713 cc |
Type of Electrical System | 3F+N / 1F+N |
Voltage | 230V / 400V |
Nominal Amperage | 230V - 48A |
Nominal Amperage | 400V - 20A |
Fuel | Gas |
Consumption | 4.9 L/h @ 75% |
Tank capacity | 40 L |
Autonomy | 8.2 hours |
Alternator type | Self-excited with brushes |
Voltage regulation | AVR |
Voltage Accuracy | + - 1 % |
Multimeter | YES |
Hour meter | YES |
Protection switch | YES |
Emergency button | YES |
Taken | 2 x 32 A 230 V + 1 x 32 A 5P 400 V CEE + 1 x 12 VDC |
Dimensions | 87 x 58.8 x 72.6 cm |
Weight | 184kg |
Technical data
Motor | CGM OHV720 |
Emissions Regulations | Stage V |
Maximum single-phase power | 13.8 kVA - 11 kW cos φ 0.8 |
Maximum three-phase power | 15 kVA - 12 kW cos φ 0.8 |
Engine Power | 15.6 kW - 21 HP |
Engine rpm | 3000RPM |
Number of Cylinders | 2 |
Starting System | Electric - Pull |
Drums | 12V |
Displacement | 713 cc |
Type of Electrical System | 3F+N / 1F+N |
Voltage | 230V / 400V |
Nominal Amperage | 230V - 48A |
Nominal Amperage | 400V - 20A |
Fuel | Gas |
Consumption | 4.9 L/h @ 75% |
Tank capacity | 40 L |
Autonomy | 8.2 hours |
Alternator type | Self-excited with brushes |
Voltage regulation | AVR |
Voltage Accuracy | + - 1 % |
Multimeter | YES |
Hour meter | YES |
Protection switch | YES |
Emergency button | YES |
Taken | 2 x 32 A 230 V + 1 x 32 A 5P 400 V CEE + 1 x 12 VDC |
Dimensions | 87 x 58.8 x 72.6 cm |
Weight | 184kg |
