Hyundai 65225
6.5 kW Diesel Inverter Generator
MPN: 65225
EAN: 8028815652254
230V - 6.5 kW
498 cc - 7.5 HP
DIESEL
Warranty 2
years
Shipped on Pallet

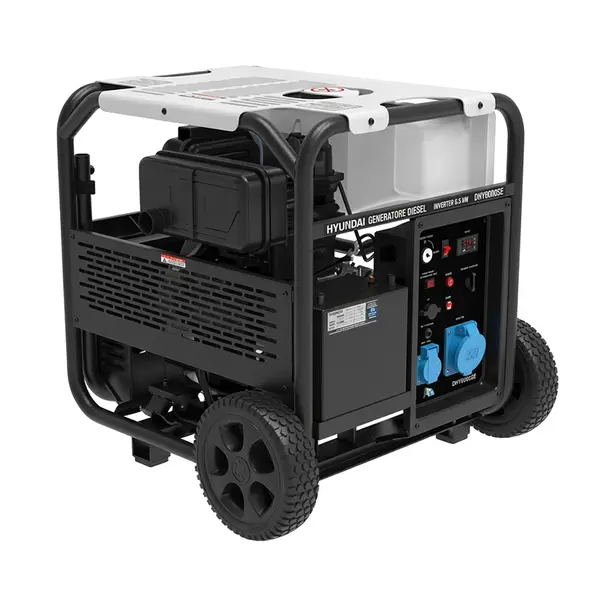

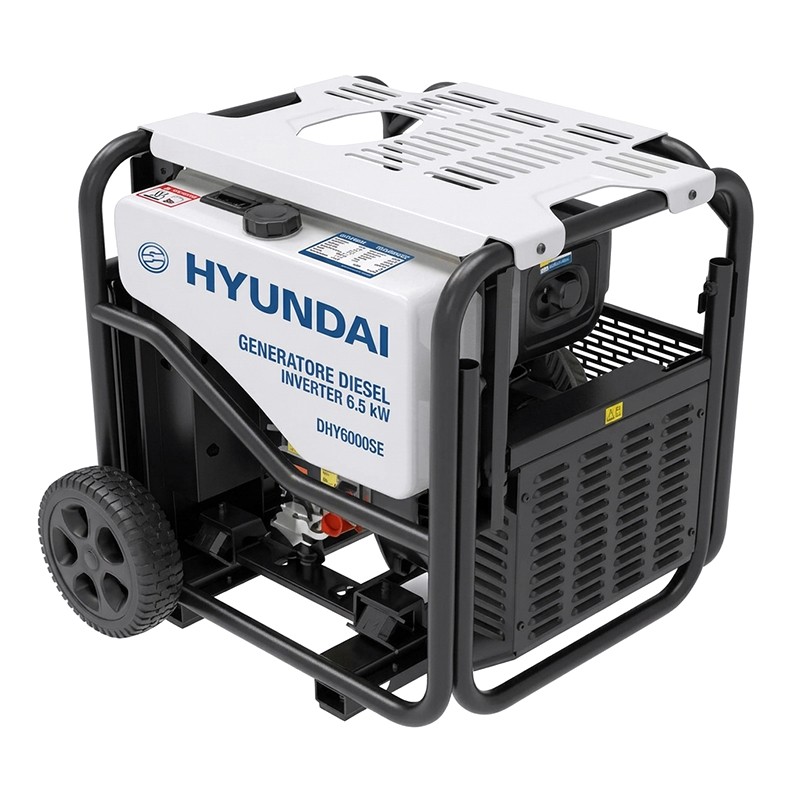

Hyundai 65225 - 6.5 kW Single-Phase Diesel Inverter Generator
The Hyundai 65225 diesel generator is a 6.5 kVA - 6.5 kW inverter generator set with maximum power, designed to ensure reliable and continuous electrical power in various usage contexts. Equipped with a 498 cc, 7.5 HP single-cylinder 4-stroke diesel engine, it offers a rated power of 6 kW and an autonomy of up to 6.5 hours at 100% load. The generator features electric key start, 230 V 50 Hz power supply, and a 15 L fuel tank. It includes a 3-function digital display to monitor voltage, frequency, and hour meter, as well as overload protection and low oil alarm. The Hyundai 65225 diesel generator is also wheeled and prepared for connection to an ATS system (kit not included, code 65293), for automated power management.
Functional Specifications
Hyundai 65225 6.5 kW Diesel Inverter Generator
The Hyundai 65225 diesel generator is an inverter generator set designed to provide 230 V electrical power reliably and continuously. The MINI6500iF-CE model reaches a maximum power of 6.5 kW, with a rated power of 6 kW, making it suitable for various power needs in professional, work, and operational settings.
498 cc and 7.5 HP Diesel Engine
The Hyundai 65225 generator is equipped with a 498 cc single-cylinder 4-stroke diesel engine, with a power of 7.5 HP and an operating speed of 3000 rpm. The diesel fuel supply and the 15 L tank allow for a declared autonomy of 6.5 hours at 100% load. The engine oil capacity is 1.65 L.
230 V Inverter Generator
The Hyundai 65225 operates at 230 V and 50 Hz, with a rated current of 26.1 A. The inverter technology allows for stable electrical power, suitable even for equipment requiring a steady supply. It features a 16 A socket and a 32 A socket, as well as a DC output.

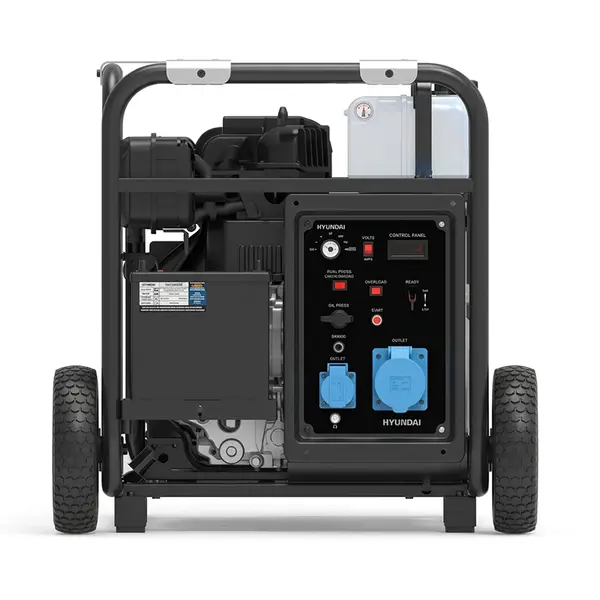

Digital Display and Protection Systems
Among the features of the Hyundai 6.5 kW diesel generator is a practical 3-function digital multifunction display, which allows viewing voltage, frequency, and hour meter. The generator also integrates overload protection and a low oil level alarm system, contributing to safer use and monitoring of the machine's operating conditions.
Wheeled Structure and Electric Start
The Hyundai 65225 generator features electric key start and a wheeled structure for easy movement. The generator winding is made of 100% copper, a feature that completes the model's technical specifications. The net weight is 84 kg, while the gross weight is 90 kg.
Electrical Sockets and ATS Preparation
The Hyundai 65225 has 2 AC sockets:
- 1 x 16 A
- 1 x 32 A
The Hyundai 65225 is also prepared for the ATS 65293 kit - to be purchased separately.
Usage Scope
- Construction sites and professional activities
- Workshops and agricultural activities
- Powering electric tools
- Emergencies
- Locations without mains electricity
Features
- Single-phase diesel inverter generator
- Electric key start
- Max power 6.5 kW
- 15 L fuel tank
- 3-function digital display
- 100% Copper Winding
- Low Oil Alarm
- Wheeled for Easy Movement
Technical Data
| Fuel | Diesel |
| Starting | Electric with Key |
| Maximum Power 230 V | 6 kVA - 6 kW cos φ 1 |
| Rated Power 230 V | 6.5 kVA - 6.5 kW cos φ 1 |
| Engine | 1 cylinder 4-stroke Diesel |
| Engine Power | 7.5 HP |
| Displacement | 498 cc |
| Tank Capacity | 15 L |
| Oil Capacity | 1.65 L |
| Autonomy 100% Load | 6.5 hours |
| Single-Phase Voltage | 230 V |
| Noise Level | 72 DbA |
| Dimensions | 60.8 x 53.5 x 59.8 cm |
| Weight | 84 kg |
INDORS is an Authorized Service and Repair Center
Our workshop is able to guarantee efficient and professional repairs: speed of intervention, competence and availability are our strengths.
By purchasing from Indors you will also have purchased peace of mind: our Assistance and Repairs Service guarantees quick and timely solutions for any problem thanks to the safe availability of spare parts, your equipment will always be efficient and available within a few days at a low cost. More information
EU Warranty
All products sold by Indors are covered by the European legal warranty for lack of conformity pursuant to Articles 128 et seq. of Legislative Decree No. 206/2005. The warranty is valid starting from the date of purchase. Professional users are entitled to a 12-month warranty.
More information
- Mark
With the Hyundai 65238 generator what oil do you recommend using? - INDORS
You can put synthetic oil 15W40
