230V - 4.2 kW
10÷150 A
MMA - TIG
Telwin Tecnica 171/S is an MMA and TIG electrode inverter welder (with scratch striking) in direct current (DC). Equipped with an integrated digital display for viewing the set welding current, this welder has a robust and raised structure that protects it from dust, water and dirt, while its compactness, lightness and the included plastic case make it easily transportable.
Thanks to the inverter technology Telwin Tecnica 171/S has low consumption. Furthermore, it is compatible for use with a motor generator thanks also to the presence of overcurrent, undervoltage, overvoltage and thermostatic protection.
With a power of 150 A in direct current (DC) , the Telwin Tecnica 171/S welding machine offers advanced arc control devices , such as: the " arc force " function which guarantees superior arc stability, the " hot start " which facilitates the ignition of the arc and the " anti-stick " option which prevents the electrodes from blocking during welding. These inspection tools offer greater precision and control during the welding process, helping to achieve high-quality results.

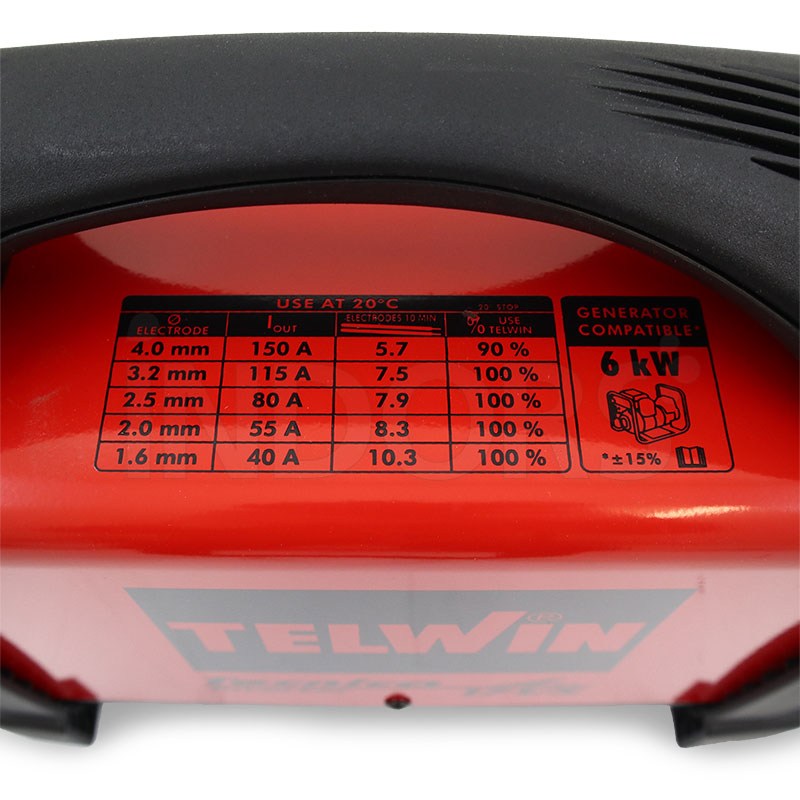

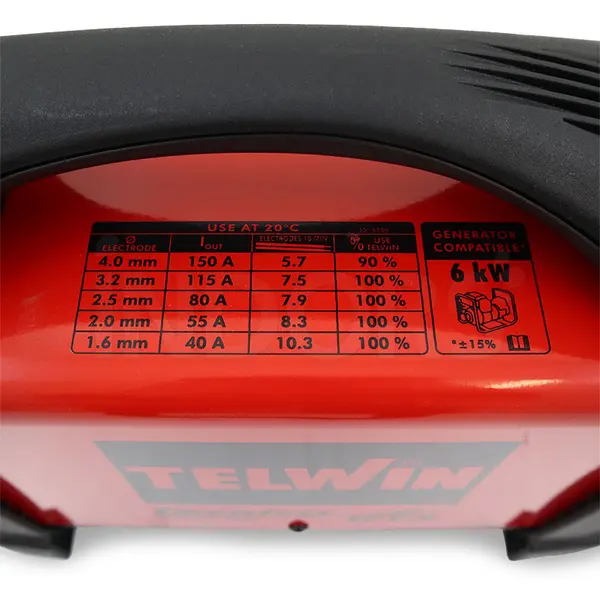

Telwin Tecnica 171/S can use a wide range of electrodes , including rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
This professional Telwin welder code 816235 is equipped with thermostatic, overvoltage, undervoltage and overcurrent protection , which means that it allows you to work safely without worries of any problems related to voltage or current even in combination with the motor generator, thus becoming the ideal choice even in those situations where the power supply may not always be stable .

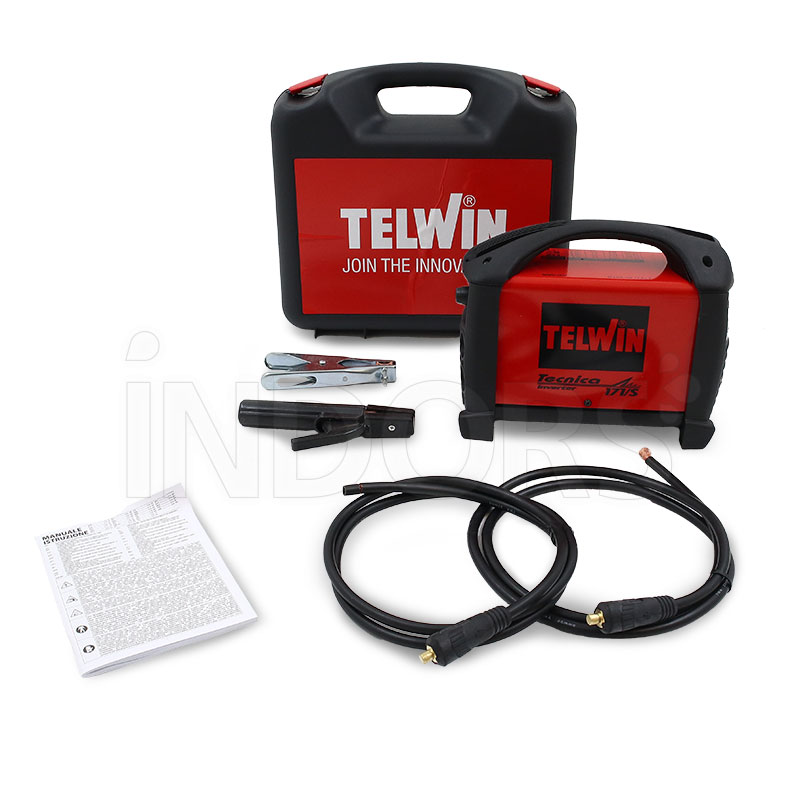

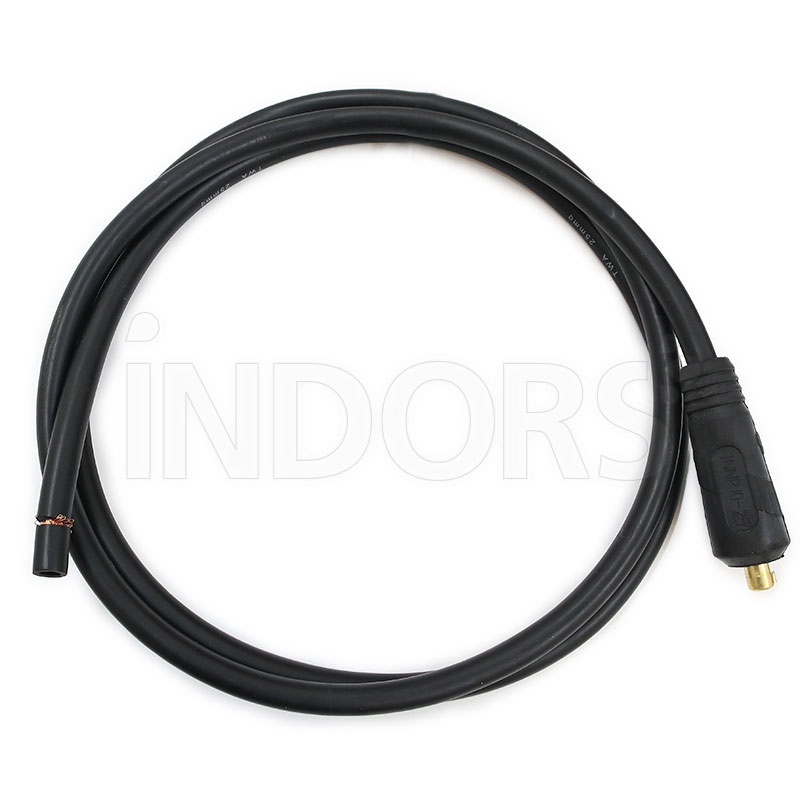

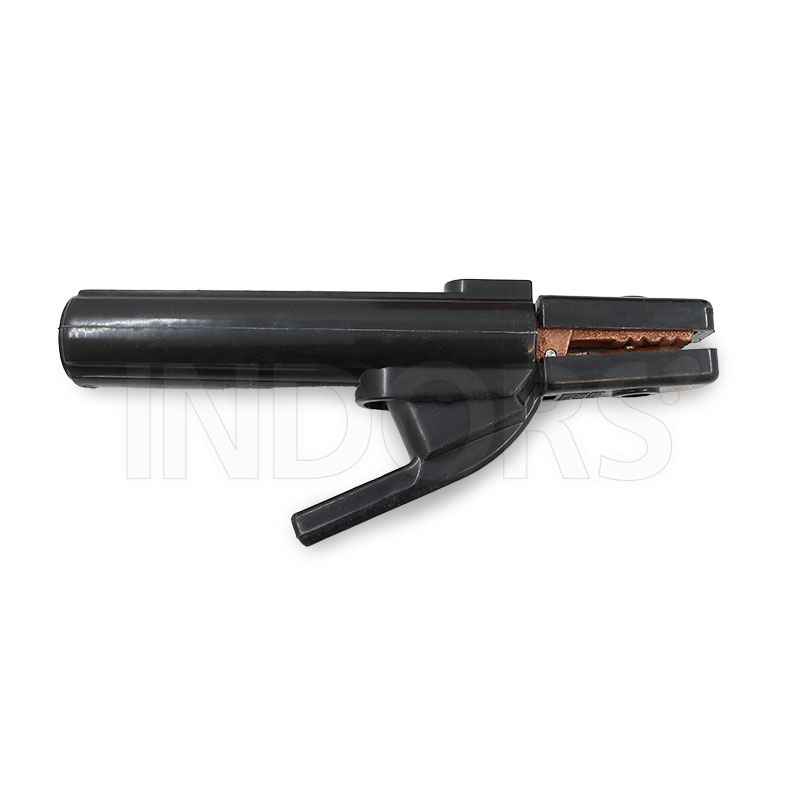

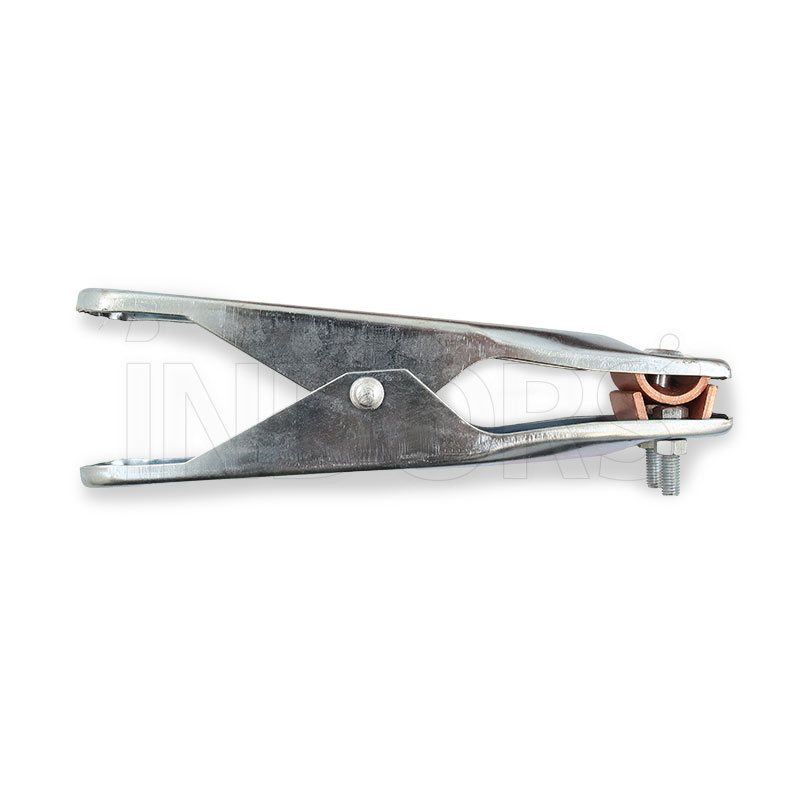

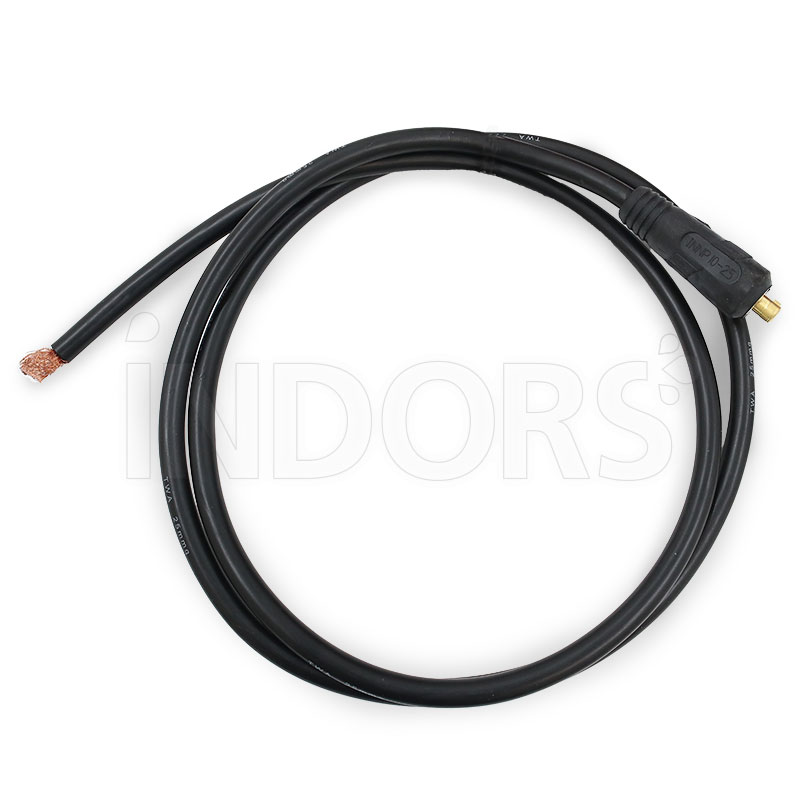

The Tecnica 171/S welder comes complete with a plastic case , Toledo 250A mass clamp , Dallas 300A electrode holder and 1.80 m TW05V-A 1x025 cable .
| Code | 816235 |
| Power Supply | 230V (50/60HZ) |
| Current Absorbed at 60% | 17 A |
| Power Absorbed at 60% | 2.8 kW |
| No-load voltage | 82V |
| Adjustment Range | 10 - 150 A |
| Work cycle at 20°C | 90% @ 150A |
| Electrode diameter Ø | 1.6 - 4 mm |
| Degree of Protection | IP23 |
| Dimensions | 38 x 42 x 17 cm |
| Weight | 5.71kg |
| Code | 816235 |
| Power Supply | 230V (50/60HZ) |
| Current Absorbed at 60% | 17 A |
| Power Absorbed at 60% | 2.8 kW |
| No-load voltage | 82V |
| Adjustment Range | 10 - 150 A |
| Work cycle at 20°C | 90% @ 150A |
| Electrode diameter Ø | 1.6 - 4 mm |
| Degree of Protection | IP23 |
| Dimensions | 38 x 42 x 17 cm |
| Weight | 5.71kg |
