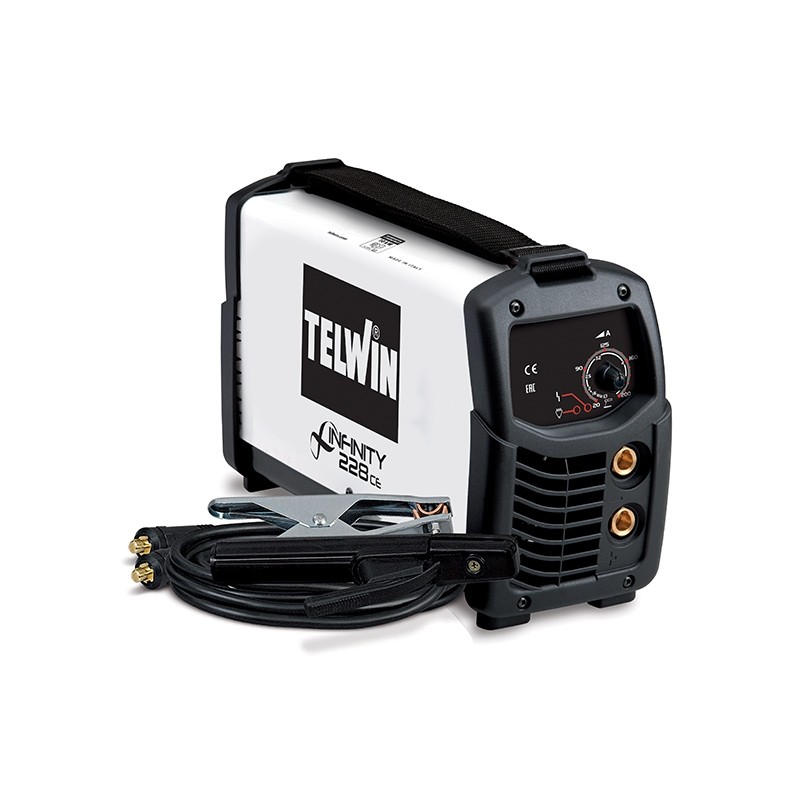

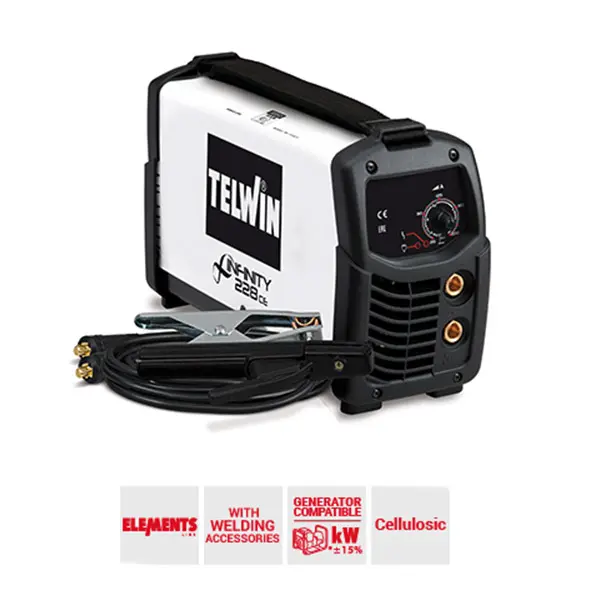

Telwin Infinity 228 CE
Inverter Welding Machine for Cellulose Use cod. 816084

Telwin Infinity 228 CE - Inverter and Cellulosic Welding cod.816084

Telwin Infinity 228 CE is a Telwin brand inverter welding machine . Made in Italy product that makes its flexibility of use one of its strong points, Telwin Infinity 228 CE can be used for MMA and TIG welding with direct current , using various types of electrodes, including cellouloid .

Complete with original Telwin brand accessories , Infinity 228 CE is an ideal machine for professional jobs that require high current stability, in order to obtain the cleanest , most precise and effective welding in the shortest possible working time.

With a single-phase 230 V current connection , a current regulation range of 20-200 A , Telwin Infinity 228 CE has a maximum absorbed power of 6 kW , with the possibility of connecting motor generators with a minimum of 10 kW . The start-up is with scratch ignition , and the welding operations guaranteed by Telwin Infinity 228 CE take place with a great stability ratio between the welding current and the voltage connection , preventing sudden interruptions or intermittencies , which are risky for the work and for the safety of the user.

This inverter welder is equipped with protection and safety systems and the Arc Force, Anti Stick and Hot Start devices .

Further specifications

The small size of Telwin Infinity 228 CE and the possibility of carrying it on your shoulder thanks to the comfortable shoulder strap, make this cellulose welding machine a compact , versatile and lightweight machine.

The electrodes that can be used include rutile , cast iron , basic , stainless steel and cellulose . The diameter ranges from 1.6 to 4 mm .

Devices and protections

On this model of MMA electrode and TIG welding inverter welder, there is an Arc Force device depending on the electrode used and the Anti Stick and Hot Start devices .

• Arc Force : is a device that facilitates the transfer of drops of molten material from the electrode to the material to be heated , preventing the arc from going out when contact occurs between the electrode and the weld pool.
• Anti stick : is a process for MMA and refers to a device that automatically switches off the welding generator , as soon as the electrode sticks to the material to be welded, allowing for manual removal.
• Hot Start : device that facilitates the ignition of the electric arc , providing a surge current at each restart of welding.

The Made In Italy Telwin Infinity 228 CE welding machine is equipped with protection systems to make welding safer for the user, to ensure more accurate work and to avoid wear of the machine itself. These include:

• Thermostatic protection
• Overvoltage , undervoltage and overcurrent protection
• Protection for motor generator (+/- 15%)

TYPES OF WELDING POSSIBLE WITH Telwin Infinity 228 CE

• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.
• TIG : requires low voltage and therefore absorbs little, becoming cheaper and aesthetically the most beautiful of all welding techniques. TIG welding has a so-called coin shape due to the circular shapes it produces and is more resistant, therefore it is usually used in visible elements and on processes that require precision.

Characteristics

• MMA and TIG inverter welding machine
• Flexible use with various electrodes and cellulosic
• In direct current DC
• Compact and lightweight with carrying strap
• Crawl start
• High welding current stability
• Arc Foce, Hot Start and Anti Stick Devices
• Protection systems

Telwin Infinity 228 CE belongs to the Elements line of Telwin

Standard equipment

• Cable TW05V-A 1X025 L=03.00M Atlas 50MMQ - cod. 124887
• Cable TW05V-A 1X025 02.00M Atlas plug 50MMQ - cod. 125033
• Toledo 250 Ground Clamp 250A - cod. 712030
• Dallas 300 Electrode Holder 300 A - cod. 712260
