Tecnogen H5000
4.5 kW Generator
Honda GX270 Engine

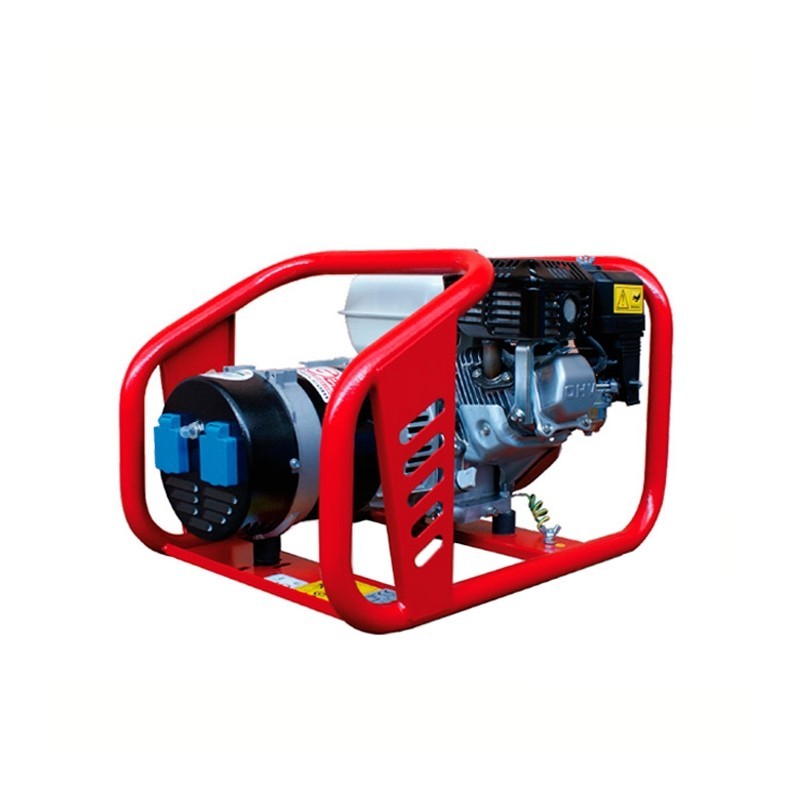

Tecnogen Compact H5000 - Petrol Generator with Honda Engine

Tecnogen H5000 is a professional petrol generator from the Compact series, designed for industrial, agricultural and construction site applications where operational reliability and energy continuity are required. Configured in single-phase 230V , it develops 4.5 kVA max and 3.6 kW max at 3000 RPM , with a 270 cm³ Honda GX270 OHV engine . Assembled in Italy , it integrates professional components and is predisposed for an optional AVR for applications with greater need for electrical stability.

TECHNICAL SPECIFICATIONS

The Tecnogen H5000 generator is petrol -powered, has a 6 L tank and a consumption of 1.5 L/h at 75% load . The single-cylinder Honda GX270 engine with OHV technology and CDI digital ignition ensures efficient combustion, low emissions and continuous reliability. It has a manual start , a 230V single-phase output , an operating speed of 3000 rpm and a tubular frame structure with anti-vibration supports . Technical equipment includes thermal/magnetic protection, low oil level control, silencer and air filter.

FUNCTIONAL SPECIFICATIONS

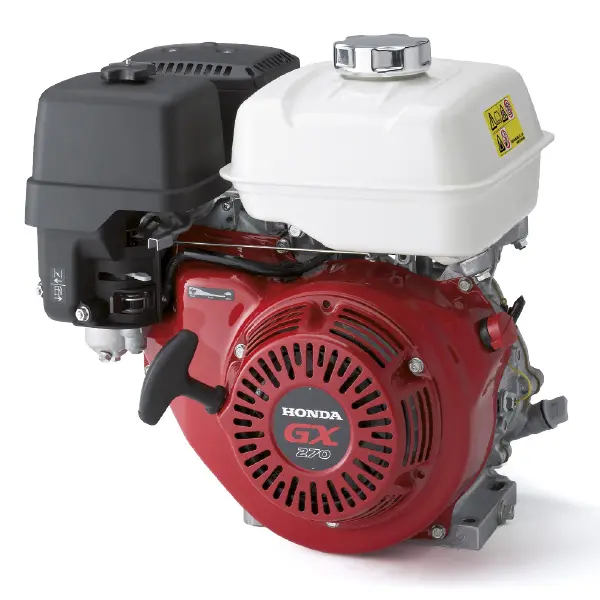

Honda GX270 OHV Engine

The Honda GX270 engine ensures high thermal efficiency, low fuel consumption, easy starting and long life in intensive professional use.

Single-phase 230V supply

The 230V single-phase configuration enables stable power supply for professional equipment, tools and machines with power up to 4.5 kVA .

Integrated engine protection

The system with oil level control , thermal protection and safety switch protects the generator from operating anomalies and overloads.

Professional anti-vibration frame

The tubular frame structure with anti-vibration supports reduces mechanical stress, improves stability and optimizes the life of the components.

Optional AVR

The optional AVR provision allows for more precise voltage regulation for sensitive professional use.

Characteristics

• Professional petrol generator
• 230V single-phase generator set
• Maximum power 4.5 kVA / 3.6 kW
• Honda GX270 single-cylinder OHV 270 cm³ engine
• Engine speed 3000 RPM
• Manual recoil start
• Fuel consumption 1.5 L/h at 75% load
• 6 L fuel tank
• Low engine oil level protection system
• Thermal and magnetothermal protection on sockets
• Tubular frame with anti-vibration supports
• Integrated exhaust silencer
• AVR regulator provision on request
• Industrial assembly made in Italy
