Battistella Marte Universal
Trousers Ironing Press
Professional

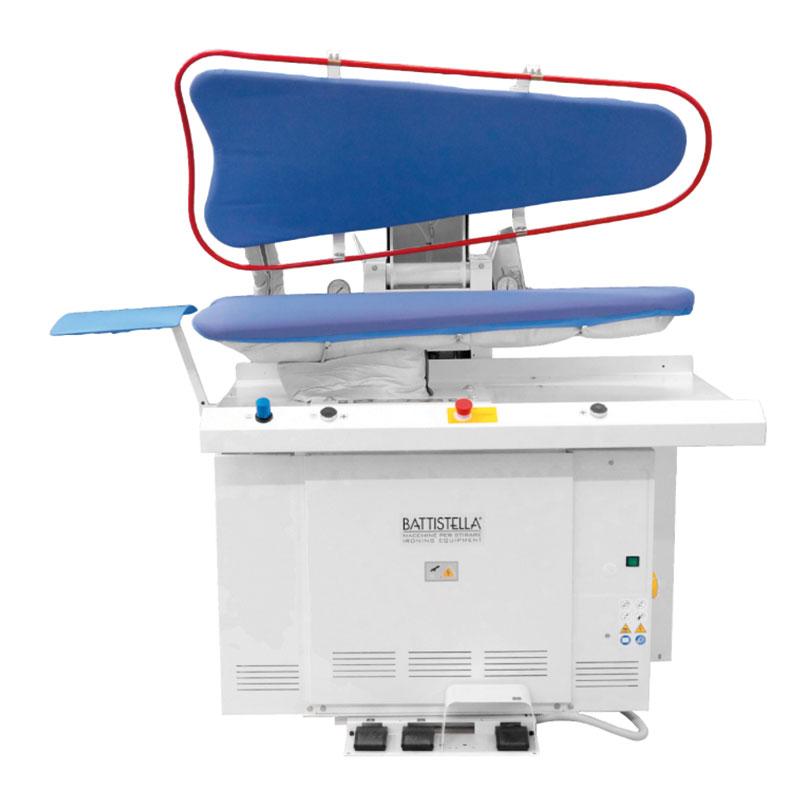

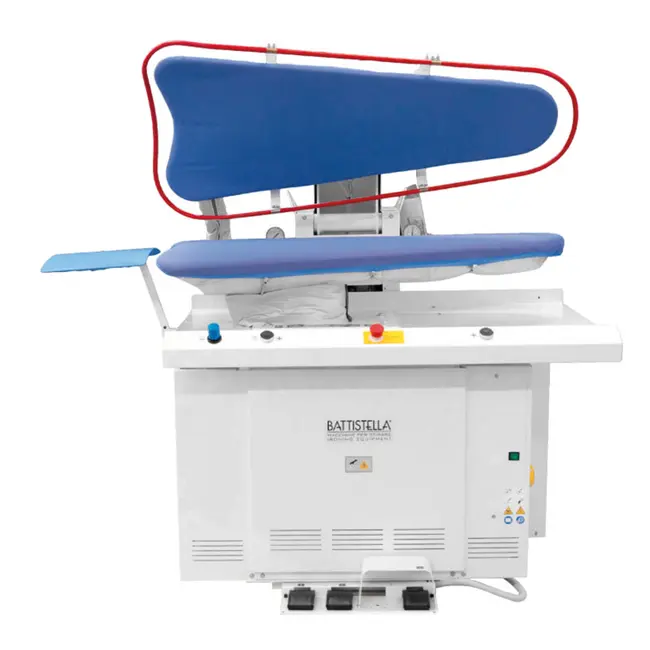

Battistella Marte Pneumatica Universale Pantalone - Pneumatic Ironing Press with Universal Trouser Shape

Battistella Marte Pneumatica Universale Pantalone is a professional ironing press with pneumatic operation specifically designed for ironing trousers thanks to the plate with a universal trouser shape . This steam ironing system is particularly suitable for use in industrial environments, laundries and ironing shops. This machine stands out for its high construction quality , reliability and ability to optimize ironing processes thanks to the direct connection to a steam source.

The universal worktop of Battistella Marte is covered with high-quality materials to ensure gentle treatment on fabrics.

Image for indicative purposes only. Accessories , including the pedal lock and the hand guard frame, are not included and can be requested separately . See list of optional equipment available below.

Technical Specifications

Battistella Marte Universale Pantalone has compact dimensions and its weight varies between 200 and 300 kg depending on the accessories mounted, making it robust and stable during use . The average steam consumption is between 15 and 20 kg/h, with an operating pressure of 5-6 bar (to be connected to a suitable steam source). It is possible to connect the ironing press to a compressor with a maximum air pressure of 6 bar.

The standard electrical connection is 230V - 50Hz, with the option of a 400V three-phase supply for use with internal boilers. The extraction connection has a diameter of 100mm, ensuring effective management of fumes and improving the operator experience.

Functional Specifications

The Marte Manual ironing press is designed to offer an optimal and safe user experience. The machine can be accessorized on request with a 0.5 HP suction system to facilitate the positioning of garments and improve the quality of ironing. In addition, optional accessories are available, such as a stainless steel arm , a gun for blowing or injecting steam and a pedal -operated upper surface closure, which further increase the versatility of the machine.

This model fits perfectly into professional work environments, ensuring high performance and reliability over time. It can be combined with a 10-liter internal boiler with a power of 12 kW and/or a 1.5 HP (6 bar) air compressor, offering a complete solution for the most advanced needs.

Battistella: Italian brand for ironing

Battistella is a leading Italian brand in the ironing systems sector, with over forty years of professional experience.

Known throughout the world for the design of semi-professional, professional and industrial ironing machines, Battistella is developing towards innovative boilers and irons, with high performance and low consumption.

Characteristics

• Pneumatic Operation
• Maximum customization
• Steam inlet connection Ø 100 mm
• Can be used with compressor

Optional on Request

This Ironing Press is compatible with the following Battistella accessories:

• Vacuum cleaner 0.5 HP
• Stainless steel arm
• Internal boiler 10L (12 kW) 230V/400V on request
• Pedal top cover closure
• Iron with steam group
• Air/steam gun kit
• Blowing kit
• Glossy top side
• 1.5 HP compressor
