Speroni Cutty
Submersible Electric Pump Shredder
€1,120.00
€918.03 tax excl.
| or in 3 rates from 373.33 € with |  |
library_add
more options
230V - 1.5÷2.5 HP
400 L/min - Head 27 m
Ø 1" 1/2
Warranty 2 years
14 days to change your mind
Speroni Cutty - Submersible Electric Pump with Shredder
Speroni Cutty is an electric pump with submerged multi- channel open impeller with suction grinding system. Particularly indicated in the presence of long filamentous or fibrous fibers, of destructible solid bodies even of large dimensions, in the treatment of biological liquids and waters of civil origin.
It works at a liquid temperature of up to 35 ° C (domestic use EN 60335-2-41 ), while for other uses up to 50 ° C , it can be submerged up to 20 meters . The minimum suction level is 80 mm , with a continuous service. It is fitted with a 2-pole induction motor in oil bath, class F insulation and IP 68 protection with thermal protector.
Materials
- Motor body: Cast iron
- Pump body: Cast iron
- Girant: and cast iron
- Motor shaft: AISI 304 stainless steel
- Shredder: AISI 304 D stainless steel
- opia mechanical seal in oil chamber: Ceramic / Graphite / NBR Silicon / Silicon / NBR
Features
- Immersed impeller electric pump
- Multichannel
- With shredding and suction system
- Made in Italy
- Submerged max 20 m
- Insulation F, IP 68
Models available
- Spurs Cutty 150 N - 230 V - 1,5 HP
- Spurs Cutty 200 N - 230 V - 2 HP
- Spurs Cutty 250 N - 230 V - 2,5 HP

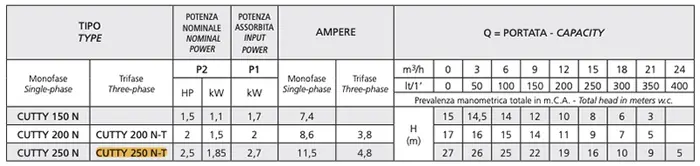

Technical data
| Template | CUTTY 150 N | CUTTY 200 N | CUTTY 250 N |
| Code | 101291400 | 101291420 | 101291440 |
| Power Supply | 230V | 230V | 230V |
| Horses | 1.5 HP | 2 HP | 2.5 HP |
| Nominal power | 1.1 kW | 1.5 kW | 1.85 kW |
| Scope | 400 L / min | 400 L / min | 400 L / min |

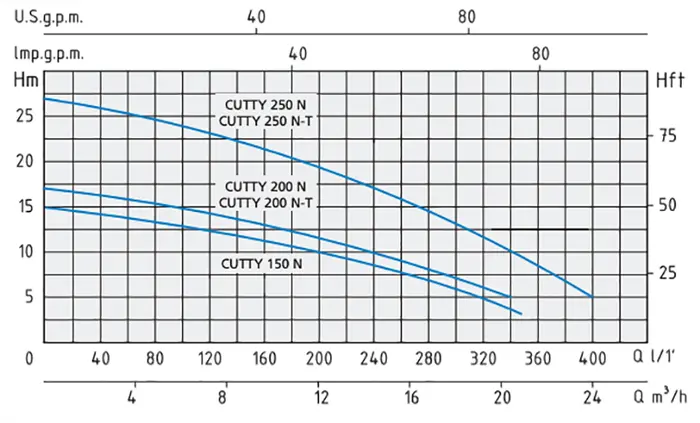

| Min / max head | 3 ÷ 15 m | 5 ÷ 17 m | 5 ÷ 27 m |
| Delivery diameter | 1 '' 1/2 | 1 '' 1/2 | 1 '' 1/2 |
| Insulation class | F. | F. | F. |
| Pump Body Material | Cast iron | Cast iron | Cast iron |
| immersion | 20 m | 20 m | 20 m |
| Max Temp. Liquid Domestic Use | 35 ° C | 35 ° C | 35 ° C |
| Max Temp. Liquid Other Uses | 50 ° C | 50 ° C | 50 ° C |
| Degree of protection | IP 68 | IP 68 | IP 68 |

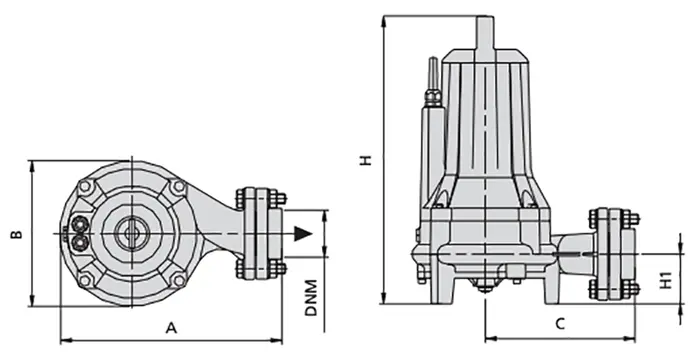

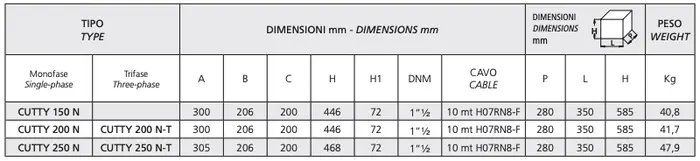

| Dimensions | 30 x 20 x 44.6 cm | 30 x 20 x 44.6 cm | 30 x 20 x 46.8 cm |
| Weight | 40.8 kg | 41.7 kg | 47.9 kg |
Technical data
| Template | CUTTY 150 N | CUTTY 200 N | CUTTY 250 N |
| Code | 101291400 | 101291420 | 101291440 |
| Power Supply | 230V | 230V | 230V |
| Horses | 1.5 HP | 2 HP | 2.5 HP |
| Nominal power | 1.1 kW | 1.5 kW | 1.85 kW |
| Scope | 400 L / min | 400 L / min | 400 L / min |
| Min / max head | 3 ÷ 15 m | 5 ÷ 17 m | 5 ÷ 27 m |
| Delivery diameter | 1 '' 1/2 | 1 '' 1/2 | 1 '' 1/2 |
| Insulation class | F. | F. | F. |
| Pump Body Material | Cast iron | Cast iron | Cast iron |
| immersion | 20 m | 20 m | 20 m |
| Max Temp. Liquid Domestic Use | 35 ° C | 35 ° C | 35 ° C |
| Max Temp. Liquid Other Uses | 50 ° C | 50 ° C | 50 ° C |
| Degree of protection | IP 68 | IP 68 | IP 68 |
| Dimensions | 30 x 20 x 44.6 cm | 30 x 20 x 44.6 cm | 30 x 20 x 46.8 cm |
| Weight | 40.8 kg | 41.7 kg | 47.9 kg |
