Hyundai 35614A
Sewage Electric Pump

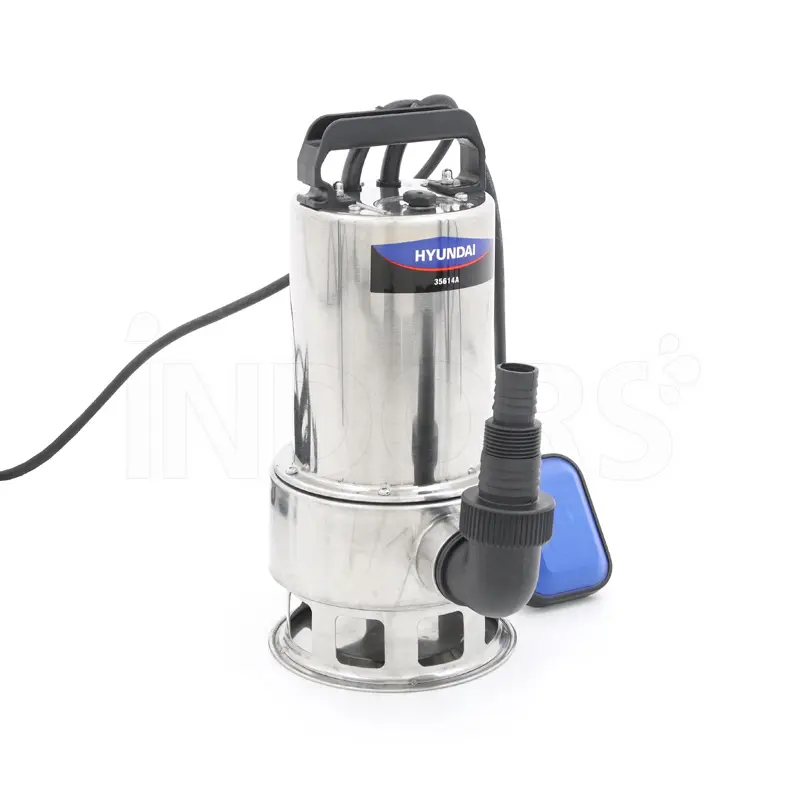

Hyundai 35614A Electric Submersible Pump

The Hyundai 35614A submersible electric pump is ideal in particularly dirty water with solid bodies of 35mm diameter , it guarantees the disposal of sewage wells and stagnant water, but not only that, it can also be used in the drainage of clear water, for the irrigation of fields and gardens, for draining small building sites, for pumping water short distances or for emptying cellars/boxes.

This electric pump has a compact and light body in stainless steel , equipped with a practical float sensor which, via the start, is triggered when there is an excessive water level. Transportable and safe, it can be used both in static and dynamic positions. Thanks to their flow rate of 13,000 liters per hour , they guarantee top-of-the -range performance against clear water infiltration and the disposal of dark water .

The motor with integrated thermal protection allows the pump to be immersed to a maximum depth of 7 meters; making it versatile and suitable in any necessary condition. All the components of the Hyundai 35614A submersible electric pump are also made following all the directives that guarantee total safety.

Characteristics

• G1-1/2" delivery pipe
• 10 m electric cable
• Body in stainless steel
• Carrying handle
• Thermal protection
• Integrated float

Instructions for Use

• Attach a rope to the handle and lower the electric pump. Do not lower the pump by holding the power cable;
• If you are in the presence of water with impurities, it is preferable to install the pump off the bottom to avoid blockages of the inlet;
• For better operation it is recommended that the pump is completely immersed in water and that the float switch is free to move;
• If the thermal protection trips, the pump will restart automatically when the motor has cooled down.
