  • Biemmedue TITAN - Generatore Aria Calda Industriale

BIEMMEDUE TITAN
Industrial Hot Air Generator

14000 ÷ 20000 m³/h
Diesel / Methane - 144 ÷ 235 kW
Thermostat Provision

MPN: 02AG182

Seleziona Modello
description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer


Biemmedue TITAN - Industrial Hot Air Generator for Sports Facilities

Biemmedue Titan is an indirect combustion hot air generator , available with various air flow rates to meet the needs of all customers. Thanks to the new heat exchanger and high-performance fans , it offers an exceptional thermal efficiency of 96%. Designed to heat large industrial spaces , it guarantees the support of pressostatic balloons and the heating of sports facilities such as gyms, structures dedicated to physical activity and tents. Titan is the ideal solution to guarantee uniform and efficient heating in warehouses, gyms and temporary structures, where it is essential to maintain temperature control and a homogeneous distribution of hot air.

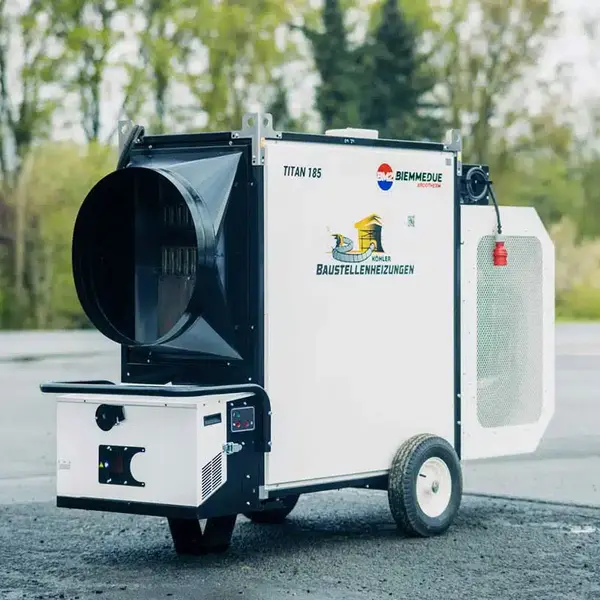

Biemmedue TITAN - Industrial Hot Air Generator

Available Models

  • TITAN 145M cod. 02AG171 - single phase 230V, 144.72 kW, 14000 m³/h
  • TITAN 185T cod. 02AG182 - three-phase 400V, 185.54 kW, 16000 m³/h
  • TITAN 235T cod. 02AG192 - three-phase 400V, 235.72 kW, 20000 m³/h

Technical specifications

Titan is available in three models with a nominal power ranging from 144.72 kW to 235.72 kW and an air flow rate ranging from 14,000 m³/h to 20,000 m³/h . The output power varies from 138.93 kW to 227.47 kW , depending on the model chosen. The generator's power supply is compatible with voltages from 230V to 400V , offering great versatility in adapting to different types of systems. Furthermore, it is designed for connection to a thermostat, for precise temperature control and optimal energy efficiency.

Biemmedue TITAN - Industrial Hot Air GeneratorBiemmedue TITAN - Industrial Hot Air Generator

Functional specifications

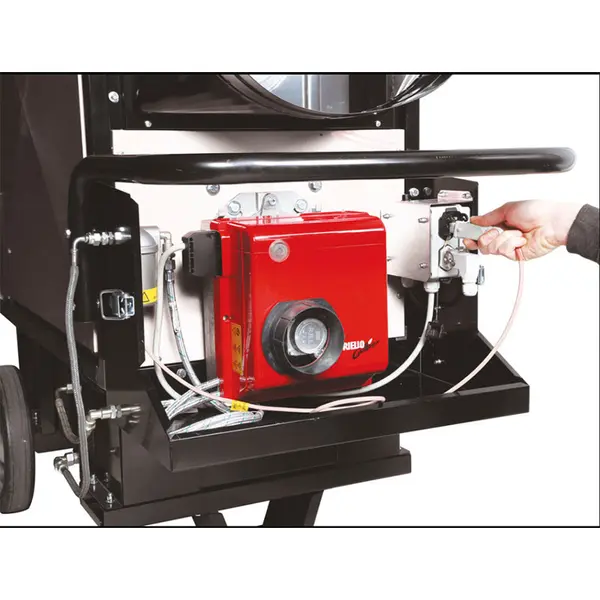

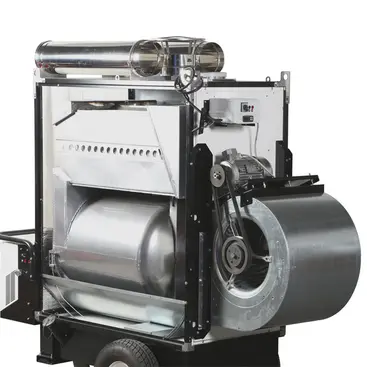

One of the distinctive features of Biemmedue Titan is the burner protection , designed to resist impacts, dust, water and adverse weather conditions. The combustion system is equipped with a snorkel socket that guarantees clean combustion air through an external connection with a suction sheath. The new heat exchanger and the advanced ventilation system offer a thermal efficiency of 96%, improving efficiency and reducing consumption.

Biemmedue TITAN - Industrial Hot Air GeneratorBiemmedue TITAN

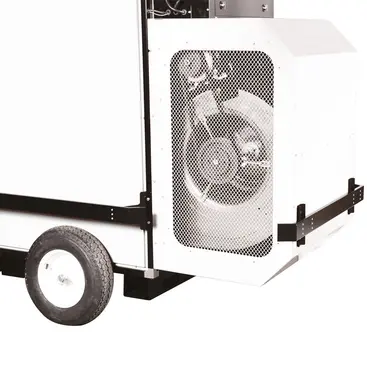

Titan's structure is solid and designed to last over time. The panels are removable to facilitate maintenance, even when the generator is hanging, and the sturdy fixing brackets allow it to be moved on any surface . The fan, protected with IP55 protection rating, is able to deliver a high air flow rate at static pressure (500 Pa), ensuring homogeneous air distribution even over long distances, thanks to the possibility of using ducts and sheaths.

Biemmedue TITAN hot air generator

Biemmedue Titan is particularly silent, with a noise level of less than 69 dB at 2 m , which makes it suitable for use in environments that require low noise levels. The rear control panel and the front service panel , both with IP65 protection, are designed to resist dust, water and snow, ensuring greater durability and facilitating maintenance. In addition, each main component is equipped with quick connections to ensure rapid and uncomplicated technical interventions.

Watch the video

Characteristics

Biemmedue TITAN - Industrial Hot Air Generator

  • Single-phase/three-phase hot air generator
  • High efficiency indirect combustion
  • Available with various air flow rates
  • Thermal power up to 96% efficiency
  • Models with power from 144.72 kW to 235.72 kW
  • Air flow rate from 14,000 m³/h to 20,000 m³/h
  • Power supply from 230V to 400V
  • Provision for thermostat
  • Burner protected from impacts and atmospheric agents
  • Snorkel intake for clean air
  • Structure with removable panels for maintenance
  • IP55 protection fan
  • Noise ≤ 69 dB at 2 meters
  • High static pressure (500 Pa)
  • Rear electrical panel IP65
  • IP65 front service panel
  • Quick electrical connections
  • Suitable for warehouses and sports facilities
  • Easy handling and installation

Biemmedue TITAN - Industrial Hot Air GeneratorBiemmedue TITAN

Technical Data

TITAN 145M TITAN 185T TITAN 235T
Code 02AG171 02AG182 02AG192
Power Supply 230V 400V 400V
Nominal Power 144.72 kW 185.54 kW 235.72 kW
Air Flow 14000 m³/h 16000 m³/h 20000 m³/h
Thermostat Thermostat Provision Thermostat Provision Thermostat Provision
Fuel Diesel / Methane Diesel / Methane Diesel / Methane
Diesel consumption 11.45 Kg/h 14.68 Kg/h 18.65 Kg/h
Methane consumption G20 13,855 m³/h 17,682 m³/h 22,035 m³/h
LPG consumption G31 10.57 Kg/h 13.63 Kg/h 16.92 Kg/h
Power Pressure G20 20 mbar 20 mbar 20 mbar
Power Pressure G31 37 mbar 37 mbar 37 mbar
Power Output 138.93 kW 178.12 kW 227.47 kW
Yield 96% 96% 96.5%
Static Pressure 300 Pa 500 Pa 500 Pa
Thermal Jump at 20°C 42°C 46°C 47°C
Effective working range 56 m 63 m 70 m
Electricity consumption 3.1 kW 4.2 kW 4.9 kW
Ø fireplace 200mm 200mm 200mm
Ø 1-way air outlet sheath Ø 600 mm for 50 m max Ø 700 mm for 50 m max Ø 700 mm for 50 m max
Ø 2-way air outlet sheath Ø 500 mm for 30 m max Ø 500 mm for 30 m max Ø 600 mm for 30 m max
Ø 4-way air outlet sheath Ø 350 mm for 25 m max Ø 350 mm for 25 m max Ø 400 mm for 25 m max
Ø snorkel sheath Ø 100 mm for 6 m max Ø 100 mm for 6 m max Ø 150 mm for 6 m max
Ø air intake sheath Ø 650 mm for 10 m max Ø 720 mm for 10 m max Ø 750 mm for 10 m max
Size 219 x 90 x 151 cm 241 x 92 x 162 cm 263 x 104 x 184 cm
Weight 361 kg 430 Kg 535 Kg

Technical Data

TITAN 145M TITAN 185T TITAN 235T
Code 02AG171 02AG182 02AG192
Power Supply 230V 400V 400V
Nominal Power 144.72 kW 185.54 kW 235.72 kW
Air Flow 14000 m³/h 16000 m³/h 20000 m³/h
Thermostat Thermostat Provision Thermostat Provision Thermostat Provision
Fuel Diesel / Methane Diesel / Methane Diesel / Methane
Diesel consumption 11.45 Kg/h 14.68 Kg/h 18.65 Kg/h
Methane consumption G20 13,855 m³/h 17,682 m³/h 22,035 m³/h
LPG consumption G31 10.57 Kg/h 13.63 Kg/h 16.92 Kg/h
Power Pressure G20 20 mbar 20 mbar 20 mbar
Power Pressure G31 37 mbar 37 mbar 37 mbar
Power Output 138.93 kW 178.12 kW 227.47 kW
Yield 96% 96% 96.5%
Static Pressure 300 Pa 500 Pa 500 Pa
Thermal Jump at 20°C 42°C 46°C 47°C
Effective working range 56 m 63 m 70 m
Electricity consumption 3.1 kW 4.2 kW 4.9 kW
Ø fireplace 200mm 200mm 200mm
Ø 1-way air outlet sheath Ø 600 mm for 50 m max Ø 700 mm for 50 m max Ø 700 mm for 50 m max
Ø 2-way air outlet sheath Ø 500 mm for 30 m max Ø 500 mm for 30 m max Ø 600 mm for 30 m max
Ø 4-way air outlet sheath Ø 350 mm for 25 m max Ø 350 mm for 25 m max Ø 400 mm for 25 m max
Ø snorkel sheath Ø 100 mm for 6 m max Ø 100 mm for 6 m max Ø 150 mm for 6 m max
Ø air intake sheath Ø 650 mm for 10 m max Ø 720 mm for 10 m max Ø 750 mm for 10 m max
Size 219 x 90 x 151 cm 241 x 92 x 162 cm 263 x 104 x 184 cm
Weight 361 kg 430 Kg 535 Kg
