MASTER BV 290
Industrial Diesel Heater
Diesel - 85 kW
Thermostat Provision
160 x 70 x 115 cm - 3300 m³/h

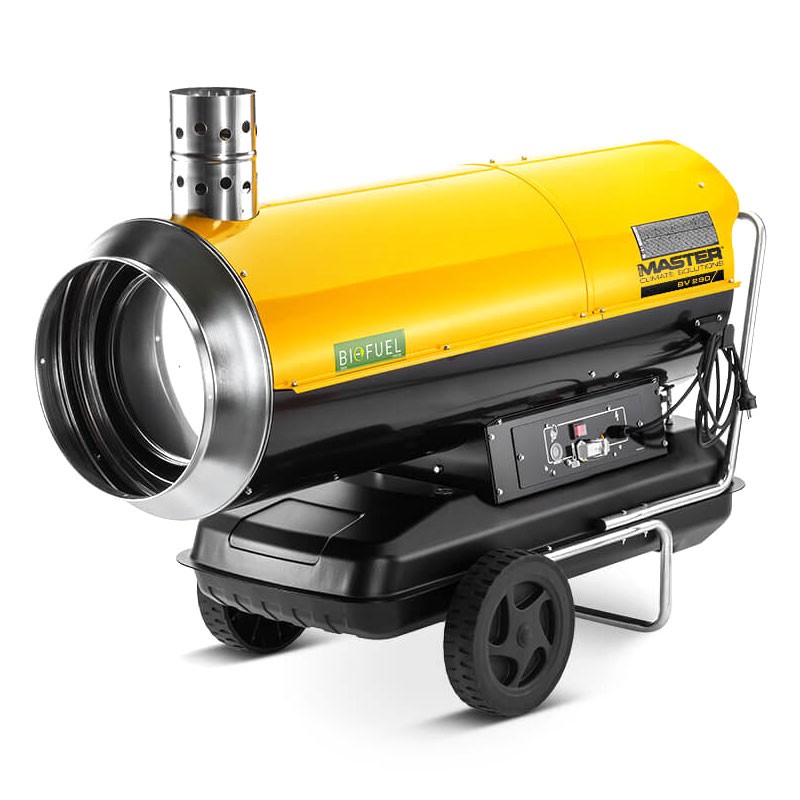

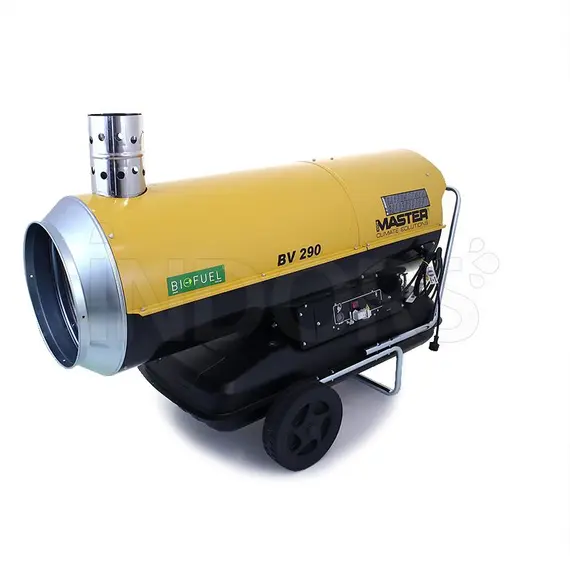

Master BV 290 - Industrial Diesel Heater
The Master BV 290 E portable hot air generator is able to ensure efficient localized heating in a large number of situations.
This series of indirect combustion diesel or kerosene hot air generators is designed to provide heat and dry the air in medium-sized environments. All models in the series are wheeled to ensure maximum ease of transport.
The operating principle of these hot air generators is based on the use of a rotary compressor which, by conveying pressurized air to the burner nozzle, creates a depression that allows the fuel to be sucked from the tank.
The resulting mixture of air and fuel is then vaporized and ignited in the combustion chamber which is constantly circulated and cooled by external air pushed towards the front outlet of the heater by a fan. Unlike direct combustion heaters, in this type of machine the combustion exhaust products are conveyed outside through an exhaust pipe.
All hot air generators are equipped with safety devices to control the flame, prevent the risk of overheating and optimize fuel consumption mounted on a control panel that also controls the ventilation functions. The combustion chambers are also made of a special stainless steel treated to resist high temperatures over time.
The products of combustion are essentially water vapour and carbon dioxide (CO2), with minimal emissions: the fumes can also be conveyed through a special exhaust pipe to the outside, allowing them to be used even in closed environments . The units can also be installed outdoors as they comply with the requirements for the IPX4D protection class.
Characteristics
- Flame presence detection
- Electronic flame control
- Stainless steel combustion chamber
- Overtemperature and post-ventilation thermostats
- Possibility of operation with room thermostat (optional)
- Stainless steel combustion chamber
- High efficiency heat exchanger

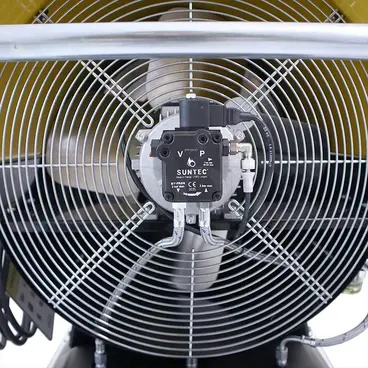

- External diesel pump
- External structure in painted steel sheet
- External wall cool to the touch
- High air flow
- Possibility of channeling (via special kit)
- Double filter: on the tank and on the diesel pump
- Thermal protection on the engine
- Easy to carry
- Easy to maintain
- Large rubber wheels
- Shockproof ABS diesel tank with level indicator
- High efficiency electric motor
Fields of application
- External Installation with Ducting Kit
- Internal Installation with External Flue Gas Exhaust
High technical quality Made in Italy
This Master heater is entirely made in Italy. Made in Italy is synonymous with accuracy and high technical quality.
3-Year Master Warranty
To benefit from the 3-year warranty of this Master product, register on the Master website and follow the instructions provided.
Remember
In case of internal installation, it is necessary to ensure good ventilation of the room to prevent possible oxygen deficiency.
Optional equipment
- Room thermostat
- Diesel preheating filter
- Ducting kit
- Hose
Technical Data
Power Supply | 230V |
Nominal Power | 85 kW - 290,000 Btu/h - 73,100 Kcal/h |
Thermostat | Thermostat Provision |
Air Flow | 3300 m³/h |
Fuel | Kerosene / Diesel |
Tank Capacity | 105 L |
Diesel consumption | 8.1 Kg/h |
Fuel autonomy | 13:00 |
Engine Power | 1.06 kW |
Current Drawn | 4.6 A |
Dimensions | 160 x 70 x 115 cm |
Weight | 100 Kg |
Technical Data
Power Supply | 230V |
Nominal Power | 85 kW - 290,000 Btu/h - 73,100 Kcal/h |
Thermostat | Thermostat Provision |
Air Flow | 3300 m³/h |
Fuel | Kerosene / Diesel |
Tank Capacity | 105 L |
Diesel consumption | 8.1 Kg/h |
Fuel autonomy | 13:00 |
Engine Power | 1.06 kW |
Current Drawn | 4.6 A |
Dimensions | 160 x 70 x 115 cm |
Weight | 100 Kg |
INDORS is an Authorized Service and Repair Center
Our workshop is able to guarantee efficient and professional repairs: speed; of intervention, competence and availability are our strengths.
By purchasing from Indors you will also have purchased peace of mind: our Assistance and Repairs Service guarantees quick and timely solutions for any problem thanks to the safe availability; of spare parts, your equipment will always be efficient and available within a few days at a low cost. More information
EU Warranty 3 Anni
All products sold by Indors are covered by a legal guarantee of 3 years from the date of purchase for purchases by individuals (12 months for professional users) for lack of conformity, pursuant to art. 128 ff. Legislative Decree no. 206/2005.
More information
Based on 2 reviews
-
THE HEATER HAS VERY GOOD POWER, I WOULD SAY I SOLVED THE COLD FOR MY EMPLOYEES IN SHED ASSEMBLY COMPANY. NOISY TO THE POINT, AS FOR CONSUMPTION YET TO BE VERIFIED. SATISFIED (Translated review)
-
Quick and as described (Translated review)
On Request Accessories
