MASTER BV 110
Industrial Heater

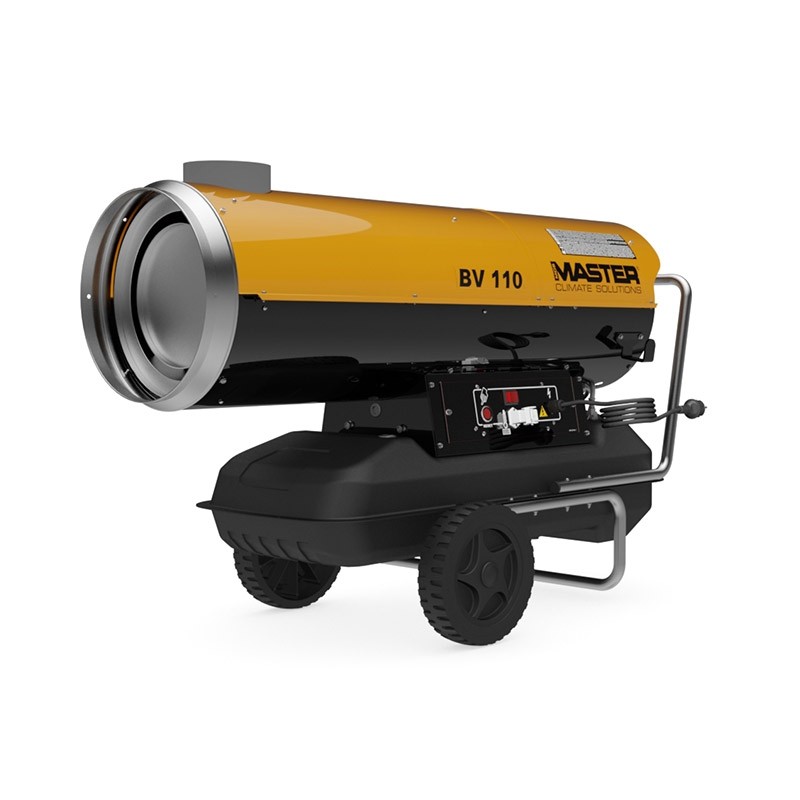

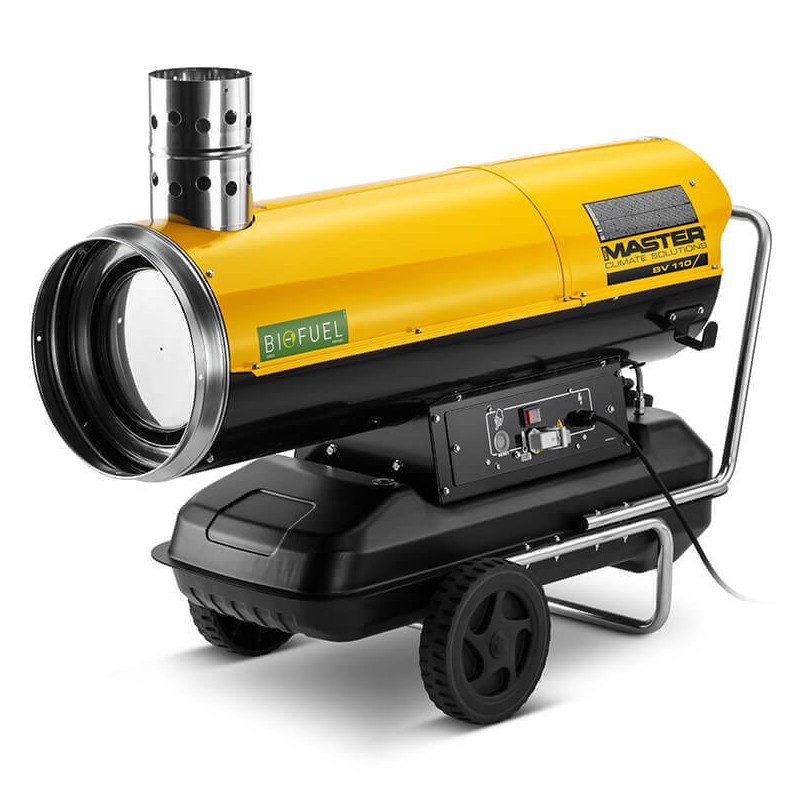

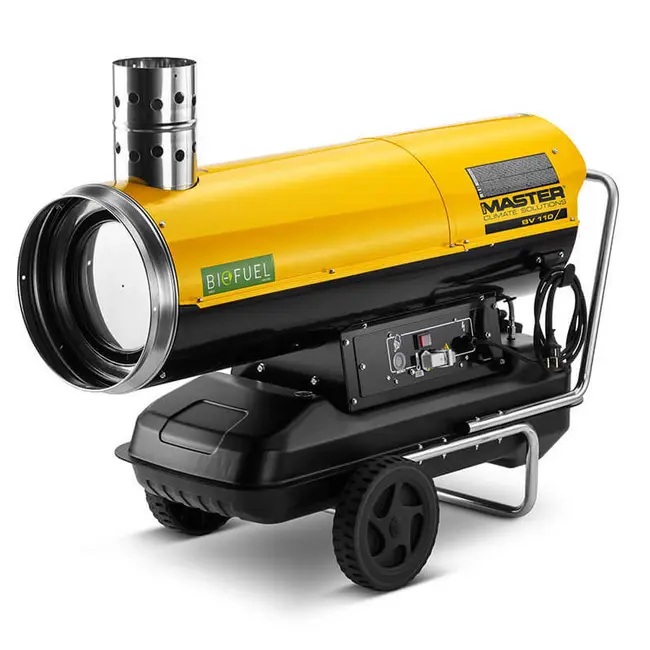

Master BV 110 - Diesel Industrial Heater

The portable hot air generator Master BV 110 E is capable of ensuring efficient localized heating in a large number of situations. This series of indirect combustion diesel or kerosene hot air generators is designed to provide heat and dry the air in medium-sized environments. All models in the series are wheeled to ensure maximum ease of transport.

The operating principle of these hot air generators is based on the use of a rotary compressor which, by conveying pressurized air to the burner nozzle, creates a vacuum that allows fuel to be drawn from the tank.

The resulting air-fuel mixture is then vaporized and ignited in the combustion chamber, which, by means of a fan, is constantly washed and cooled by external air pushed towards the front outlet of the heater. Unlike direct combustion heaters, in this type of machine, the combustion exhaust products are conveyed outside through an exhaust pipe.

All hot air generators are equipped with safety devices to control the flame, prevent the risk of overheating, and optimize fuel consumption, mounted on a control panel that also manages ventilation functions.

The combustion chambers are also made of special stainless steel treated to withstand high temperatures over time.
The combustion products are essentially water vapor and carbon dioxide (CO2), with minimal emissions: the fumes can also be conveyed outside through a dedicated exhaust pipe, allowing them to be used even in enclosed spaces. The units can also be installed outdoors as they comply with the requirements for protection class IPX4D.

High Technical Quality Made in Italy

This Master heater is produced entirely in Italy. Made in Italy is synonymous with accuracy and high technical quality.

Features

• Flame detection
• Electronic flame control
• Stainless steel combustion chamber
• Overheating and post-ventilation thermostats
• Possibility of operation with room thermostat (optional)
• STAINLESS STEEL combustion chamber
• High efficiency heat exchanger
• External diesel pump
• Painted steel sheet external structure
• Outer casing cool to the touch
• High air flow rate
• Ducting possibility (via dedicated kit)
• Double filter: on the tank and on the diesel pump
• Thermal protection on the motor
• Easy to transport
• Simple maintenance
• Large rubber wheels
• Shockproof ABS diesel tank with level indicator
• High efficiency electric motor

The product may differ in color based on availability. Technical and functional characteristics remain the same.

Application Fields

• Outdoor Installation with Ducting Kit
• Indoor Installations with External Exhaust Venting

Optional Equipment

• Room thermostat


Optional Accessories

• Diesel pre-heating filter

• Ducting kit

• Exhaust fumes flexible hose


Remember

In case of indoor installation, ensure good ventilation of the room to prevent possible oxygen deficiency.
