BIEMMEDUE Fire 25
Infrared Generator

€1,150.00
€942.62 tax excl.
or in 3 rates from 383.33 € with paypal info
library_add more options
MPN: 06VA113

Diesel - 25.8 kW
Predisposition for thermostat
90 x 53 x 81 cm

Free shipping
Indicative delivery
Thursday 05 December
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer


Infrared generator Biemmedue Fire 25

The Biemmedue Fire 25 infrared generator is supplied with the innovative dedicated BM2 burner , replacing the traditional ones found on the market, which eliminates the ceramic fiber refractory cone present in the combustion chambers of similar machines and replace it with a multilayer cone consisting of 3 concentric cones whose cooling is ensured by a fan which, at the same time, generates the air flow necessary for the combustion of the diesel fuel and the consequent flame.

Thanks to this patented innovation, the technical problems due to the fragility of the ceramic fiber are eliminated and a greater cooling of the external casing of the infrared heater is obtained.

Functional specifications

The infrared generator Biemmedue Fire 25 is fueled by diesel and is characterized by the absence of air movement ; the flame that is generated by the burner heats the parabola which, thanks to the high temperatures, stops and burns all combustion residues, guaranteeing 100% efficiency .

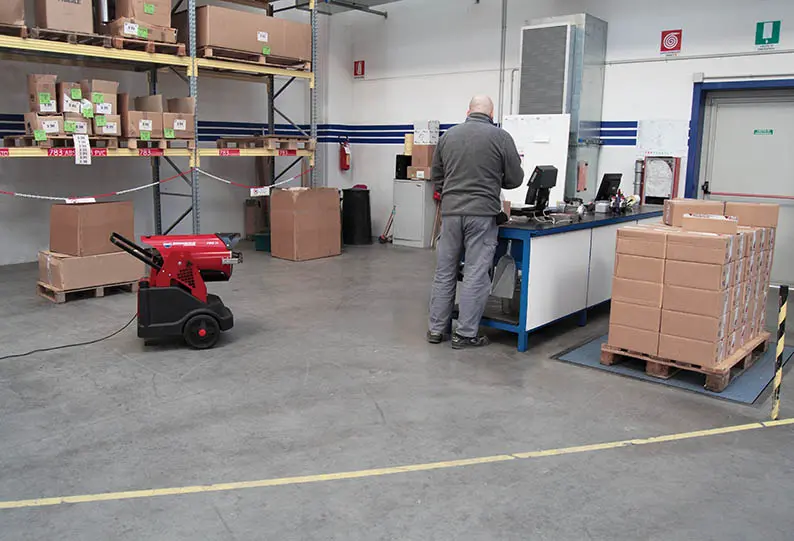

The Biemmedue Fire 25 infrared generators are used for localized heating of particularly large environments (warehouses, sheds, construction sites, open spaces, etc.) or where it is advisable to avoid having dust suspended in the environment.

Features

  • Direct heat flow by radiation without air movement
  • Low noise
  • Dedicated BM2 burner with standard EU components
  • Diesel Gear Pump
  • Electronic flame control with photoresistor
  • Possibility of connection with thermostat, hygrostat or timer
  • 1.5 m power cable with plug
  • Combustion chamber in AISI 430 stainless steel
  • Cooling of the outer casing by forced air over the entire surface of the cone
  • Timed post-ventilation for cooling the combustion chamber
  • fuel pipes in rubber resistant to hydrocarbons with metal coating
  • Shockproof polyethylene rotational tank
  • Screw closing cap for diesel fuel tank with bleed valve
  • Diesel fuel drain plug
  • Adjustable diffuser cone with locking
  • Lifting hooks

Technical data

Power Supply Diesel fuel
Nominal power 25.8 kW
Electric power 140 W
Yield 100%
Thermostat Predisposition
Tank capacity 43 L
Consumption 2.04 kg / h
Dimensions 89 x 53 x 88 cm
Weight 42 kg

Technical data

Power Supply Diesel fuel
Nominal power 25.8 kW
Electric power 140 W
Yield 100%
Thermostat Predisposition
Tank capacity 43 L
Consumption 2.04 kg / h
Dimensions 89 x 53 x 88 cm
Weight 42 kg
