MASTER BV 77
Diesel Hot Air Cannon

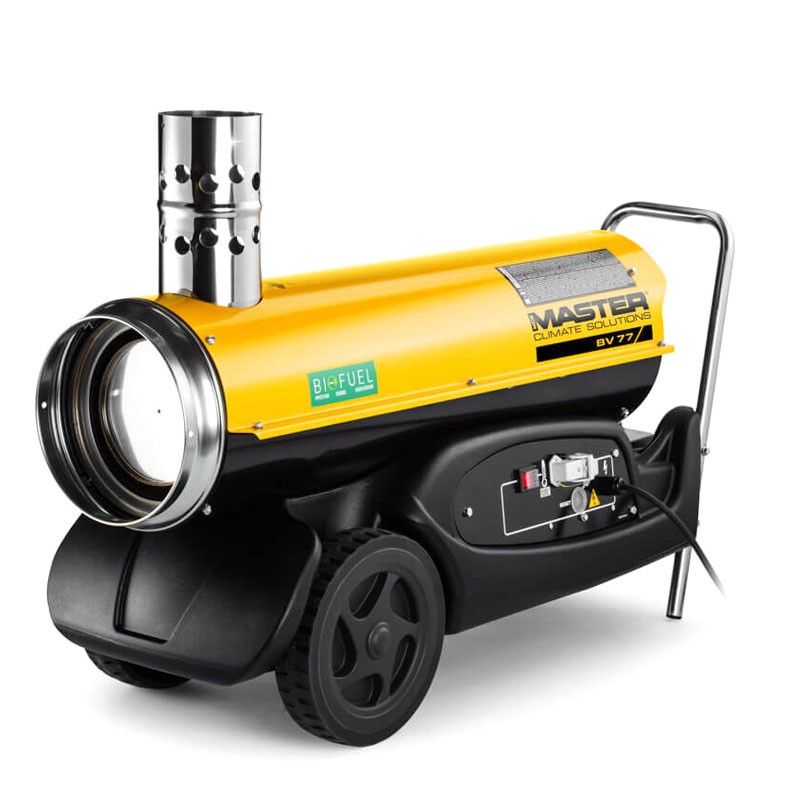

Master BV 77 - Diesel Hot Air Cannon

The Master BV 77 E portable hot air generator is capable of providing efficient localized heating in a wide range of situations. This series of indirectly fired diesel or kerosene hot air generators is designed to provide heat and dry air in medium-sized rooms.

All models in the series are wheeled to ensure maximum ease of transport. The operating principle of these hot air generators is based on the use of a rotary compressor which, by conveying pressurized air to the burner nozzle, creates a depression that allows the fuel to be sucked from the tank.

The resulting mixture of air and fuel is then vaporized and ignited in the combustion chamber which is constantly circulated and cooled by external air pushed towards the front outlet of the heater by a fan. Unlike direct combustion heaters, in this type of machine the combustion exhaust products are conveyed outside through an exhaust pipe.

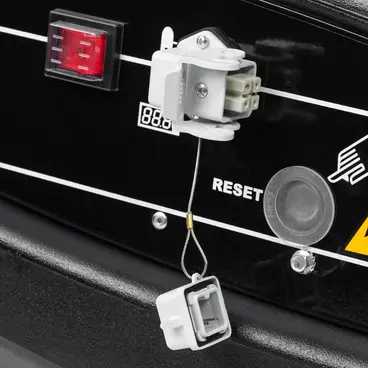

All hot air generators are equipped with safety devices to control the flame, prevent the risk of overheating and optimize fuel consumption mounted on a control panel that also controls the ventilation functions.

The combustion chambers are also made of a special stainless steel treated to resist high temperatures over time.
The products of combustion are essentially water vapour and carbon dioxide (CO2), with minimal emissions: the fumes can also be conveyed outside through a special exhaust pipe, allowing them to be used even in closed environments .

The units can also be installed outdoors as they comply with the requirements for the IPX4D protection class.

High technical quality Made in Italy

This Master heater is entirely made in Italy. Made in Italy is synonymous with accuracy and high technical quality.

3-Year Master Warranty

To benefit from the 3-year warranty of this Master product, register on the Master website and follow the instructions provided.

Characteristics

• Flame presence detection
• Electronic flame control
• Stainless steel combustion chamber
• Overtemperature and post-ventilation thermostats
• Possibility of operation with room thermostat (optional)
• Stainless steel combustion chamber
• High efficiency heat exchanger

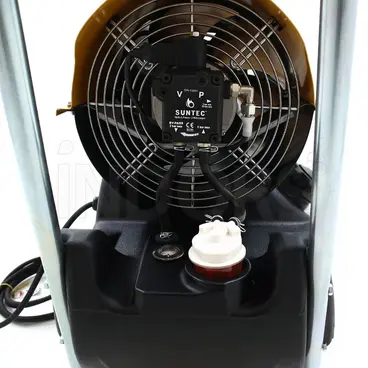

• External diesel pump
• External structure in painted steel sheet
• External wall cool to the touch
• High air flow
• Possibility of channeling (via special kit)
• Double filter: on the tank and on the diesel pump
• Thermal protection on the engine
• Easy to carry
• Easy to maintain
• Large rubber wheels

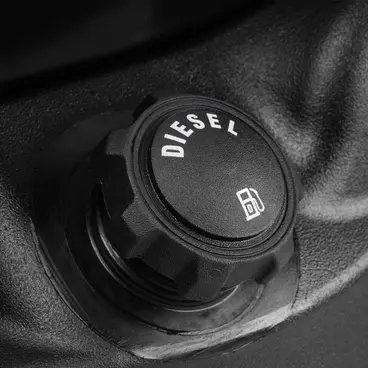

• Shockproof ABS diesel tank with level indicator
• High efficiency electric motor

Fields of application

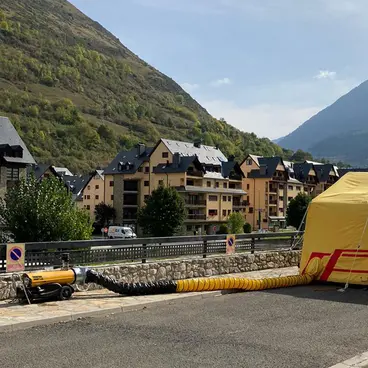

• External Installation with Ducting Kit
• Internal Installation with External Flue Gas Exhaust

Remember

In case of internal installation, it is necessary to ensure good ventilation of the room to prevent possible oxygen deficiency.
