Karcher Puzzi 10/1
Compact Professional Carpet and Rug Cleaner

Karcher Puzzi 10/1 - Compact Professional Carpet and Rug Cleaner

The Karcher Puzzi 10/1 is a professional spray-extraction carpet and rug cleaner , designed for deep cleaning of carpets , upholstery , seats and textile surfaces in the automotive , hospitality and contract sectors. Thanks to its compact structure in shock-resistant and corrosion-resistant polypropylene , it combines robustness and ease of handling, guaranteeing long-lasting performance even with intensive use. Its simultaneous suction and spray technology allows for rapid drying of fabrics, significantly reducing intervention times and making the machine ideal for those who require operational efficiency and professional washing quality.

Equipped with a 10 L clean water tank , powerful suction turbine and high-efficiency pump , Puzzi 10/1 stands out for its exceptional ability to remove dirt deep down from textile fibres, leaving surfaces perfectly clean and dry in short times.

TECHNICAL SPECIFICATIONS

The Karcher Puzzi 10/1 operates on a single-phase 230V power supply and offers optimized energy consumption thanks to a 1250W turbine and a 40W pump . The spray system operates at a pressure of 1 bar and a water flow rate of 1 L/min , ensuring even distribution of the cleaning solution. The 10L clean water tank is integrated with a pump protection filter and a maximum level indicator, while the 9L dirty water tank is easily removable for easier emptying and cleaning.

In terms of performance, the Karcher Puzzi 10/1 ensures an air flow of 74 L/sec and a vacuum of 254 mbar , guaranteeing effective and constant suction even on large or very dirty surfaces. The 240 mm floor nozzle allows it to cover an operating area of up to 25 m²/h , while the 2.5 m spray-extraction hose and 7.5 m power cable ensure a wide range of action without the need for constant relocation.

FUNCTIONAL SPECIFICATIONS

High efficiency spray-extraction system

The heart of the Karcher Puzzi 10/1 is its spray-extraction system , which combines detergent dispensing with immediate dirt extraction. This technology allows for deep cleaning of textile fibers, eliminating residues , stains , and impurities , while ensuring rapid drying. The operator can choose between single-function mode, which combines spray and suction in a single step, and dual-function mode, which allows the detergent to act before suctioning it, for more intensive treatments.

High performance pump and turbine

The Karcher Puzzi 10/1 pump is designed to ensure durability and reliability even under prolonged stress, while the high-efficiency turbine generates powerful and consistent suction. This allows for professional cleaning results with maximum residual moisture removal, reducing drying times and increasing operational productivity. The pump and turbine combination makes the Puzzi 10/1 one of the best-performing professional carpet cleaners in its category.

Ergonomics and ease of use

The Karcher Puzzi 10/1 is designed with operator comfort in mind. The ergonomic two-handed handle and large foot-operated control buttons eliminate the need to bend over, making it comfortable to use even during long work sessions. The 360° swivel rear wheels ensure stability and maneuverability even on uneven surfaces, while the integrated cable hook keeps the power cord tidy.

2 in 1 tank and simplified maintenance

The Puzzi 10/1's 2-in-1 container integrates the clean and dirty water tanks into a compact, easily removable system. This clever design allows you to quickly fill the machine and empty residual liquids without the risk of spills or spills. Access to internal components is quick and easy, reducing routine maintenance time.

Integrated professional accessories

The Karcher Puzzi 10/1 comes with a complete set of accessories for cleaning carpets, rugs, upholstery, and textile surfaces. The 240 mm floor nozzle with flexible suction lip ensures even suction across the entire surface, while the 110 mm upholstery nozzle allows for thorough cleaning of upholstered furniture and car interiors. All accessories can be stored in the machine's integrated compartments , maintaining order and convenience during use.

Watch the Video

Characteristics

• Compact professional carpet and rug cleaner
• 10/9 L clean/dirty water tank
• Turbine 1250 W, pump 40 W
• Suction 254 mbar
• Flow rate 74 L/sec
• Spray pressure 1 bar
• 240 mm floor nozzle
• Upholstery nozzle 110 mm
• Ergonomic handle and foot controls
• 360° swivel wheels
• For carpets, upholstery and car interiors
• Made in Germany

Standard Equipment

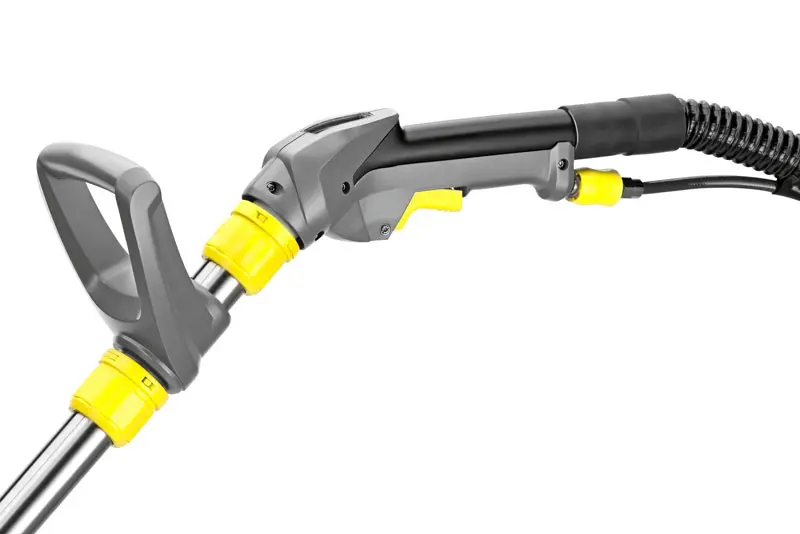

• Puzzi DN32 spray/suction gun - cod. 4.130-000.0
• Puzzi nebulizer/suction tube, length 775 mm - code 4.025-004.0
• D-handle for spray/suction hose - code 4.321-001.0
• Flexible floor nozzle 240 mm - code 4.130-008.0
• Upholstery nozzle - code 4.130-001.0
• 2.5 m spray/suction hose - code 6.394-826.0
