Lavor GV Etna 5.1 FR
Steam Generator with Suction
or in 3 rates from 543.33 € with |
230V - 3 kW - 60 L/s
Injection/Extraction
Steam 165° C
Lavor GV Etna 5.1 FR - Steam Generator with Suction
Lavor GV Etna 5.1 FR is a steam generator with suction suitable for professional use, made with resistant materials of excellent quality , with boiler and drum in impact-resistant AISI 304 stainless steel . Lavor GV Etna 5.1 FR is used in the food industry, catering, wine industry, hotels, transport etc., thanks to its wheels suitable for food environments .
Functional specifications

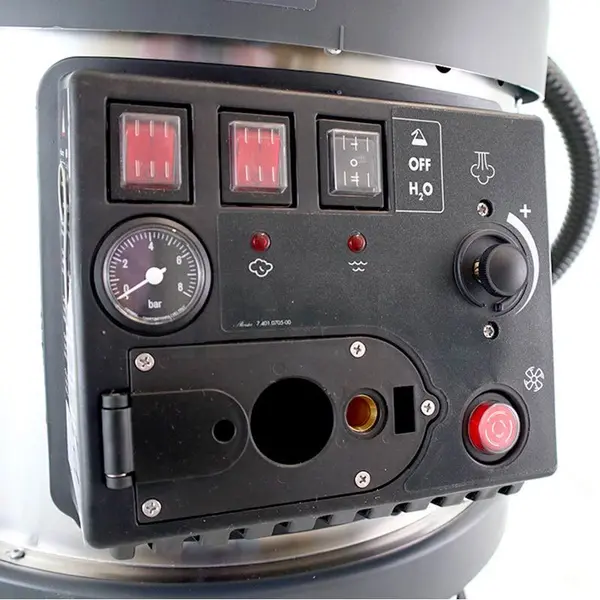

The Lavor GV Etna 5.1 FR suction steam generator, suitable for professional use , has a highly impact-resistant AISI 304 stainless steel barrel. The steam generator has a new control panel for simple and intuitive use, a quick coupling of the steam gun, a main ON/OFF switch and boiler switch with indicator light . On the control panel there is a steam ready indicator light, a lack of water indicator with acoustic signal and a switch to turn the suction motor on and off.
There is also a steam/detergent selector/regulator , a steam flow regulator and a steam pressure gauge . The autonomy of the Lavor GV Etna 5.1 FR steam generator with suction is unlimited thanks to the continuous feeding of the boiler, it also allows the water to be topped up in the tank without having to stop the machine and interrupt work.

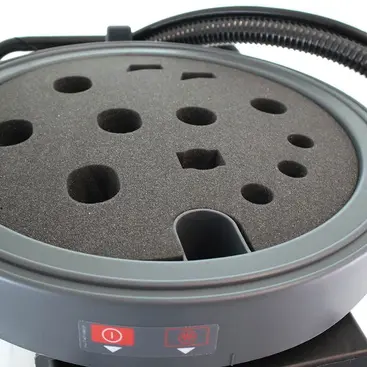

The discharge tube of the GV Etna 5.1 FR allows for quick emptying of the dirty water collection tank, without having to remove the head. The suction motor of this steam generator is two-stage tangential with cyclone effect, equipped with 3 pumps , boiler , detergent and water . The generator has a very practical storage compartment on the top and a safety lock .

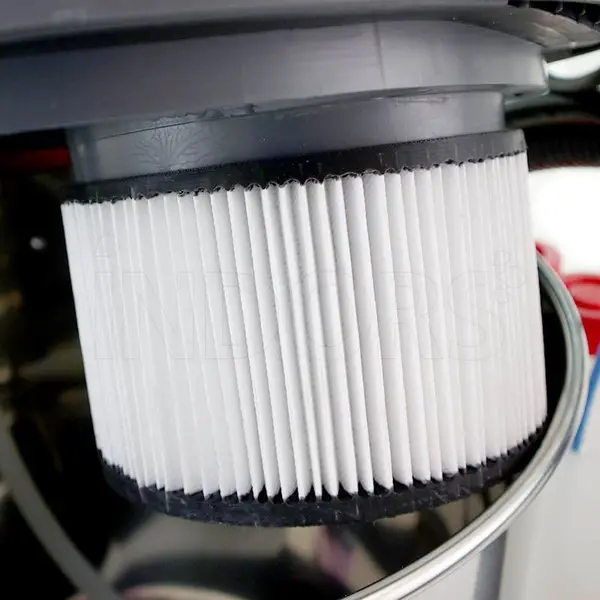

Lavor GV Etna 5.1 FR is able to guarantee maximum safety thanks to two safety thermostats , a pressure switch and a mechanical maximum pressure valve, furthermore it is possible to use chemical products mixed with steam, the filter is washable .
Technical specifications

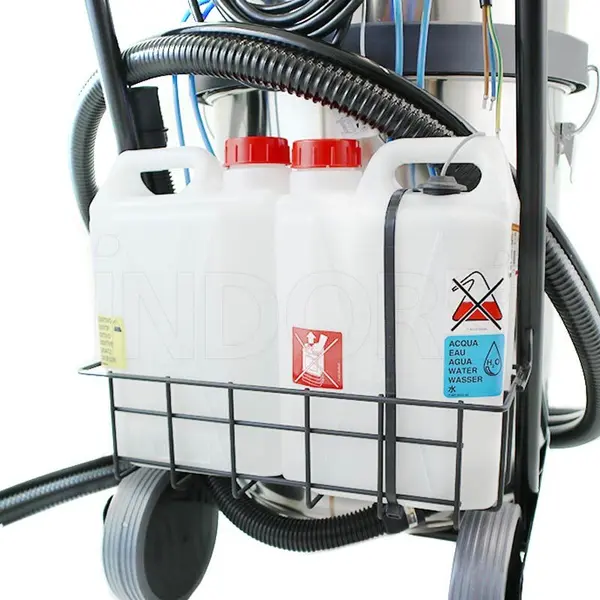

Lavor GV Etna 5.1 FR is a steam generator with a 3 kW AISI 304 stainless steel boiler and 25/10 thickness, 4 m flex hose, the collection tank has a capacity of 64 L , and is capable of exerting a pressure of 7 bar at a maximum temperature of 165°C , with 3.25 kg of steam produced. The absorbed power of the boiler is 3000 W , with single-phase power, while the suction motor has an absorbed power of 1200 W. The column depression of the Lavor GV Etna 5.1 FR is 22 kPa , while the air sucked in is 220 m³/h , finally the water and detergent tanks both have 5 L capacity.
Fields of application
- Food & beverage : food industry, catering, beverages, cellars, wine industry
- Hospitality, community and healthcare : hotels, buildings, sports centres, gyms, wellness centres, schools and communities, hospitals
- Industry : industrial plants, transport, car washes, car dealerships
Characteristics
- AISI 304 stainless steel barrel
- Wheels suitable for food environments
- Steam suction and injection
- Refilling the tank without stopping the machine
- Quick emptying of the collection depot
- Two-stage tangential motor with cyclone effect
Standard equipment
- Steam gun with 4 m flex hose
- 2 x steam extension hose
- Steam adapter - 3.754.0278
- Flat lance 200 mm Ø 35 mm
- Steam nozzle 150 mm
- Kit of 3 brushes (pek - stainless steel - brass)
- Window squeegee frame 230 mm
- 150 mm window squeegee frame
- Angled horsehair brush
- Washable filter
- Steam suction nozzle Ø 3.3 mm
- Steam suction nozzle Ø 1.5 mm
- Powder frame 300 mm
- Frame for liquids 300 mm
- Carpet frame 300 mm
- Accessories holder sponge
- Manual
Technical data
Power Supply | 230V |
Absorbed power | 3 kW |
Steam production | 3,25 Kg/h |
Steam pressure | 7 bars |
temperature max | 165°C |
Boiler type | AISI 304 stainless steel |
Water tank | 5 L |
Detergent tank | 5 L |
Collection tank | 64 L |
Aspiration | 220 m³/h |
Noisiness | 73 dB |
Flexible Hose Length | 4 m |
Dimension | 75 x 60 x 103 cm |
Weight | 42.5 kg |
