Svelt Castellana MAXI SMAXI514
14-Step Bunk Bed Ladder
Legislative Decree 81/2008
MPN: SMAXI514
Working height 3.22-5.30 m
14 steps - 69 kg
Max. 150 Kg - EN 131
Warranty 5
years
Shipped on Pallet

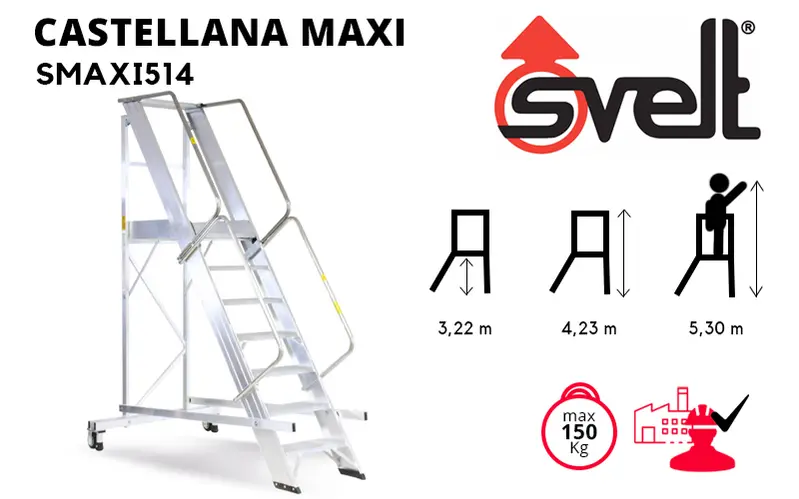

Svelt Castellana Maxi SMAXI514 - 14-Step Bunk Bed Ladder with Railing
The Svelt Castellana Maxi SMAXI514 Tower Ladder is an extra-sturdy and durable professional ladder. Svelt Castellana Maxi SMAXI514 complies with Italian Legislative Decree 81/2008 and is therefore suitable for professional indoor use in windless conditions.
The Svelt Castellana Maxi SMAXI514 has wider steps and a platform for easier ascent and descent, thanks also to a comfortable 55° inclination . This feature, combined with steps and rungs spaced just 23 cm apart and 20 cm deep rungs, ensures a smooth, comfortable and safe ascent.
Its design features a backrest perpendicular to the ground , allowing for easy access to the work area. Additionally, the ladder is equipped with an automatic braking system and stabilizing feet to ensure optimal safety during use.
This ladder has been designed to withstand heavy-duty, professional use , and is suitable for a wide range of settings, including racked warehouses, specialist machinery, airport areas, sports facilities and cemetery burial plots .
Made up of 14 steps, 2 wheels , 2 armrests , platform , storage shelf , body guard , removable handrails with a depth of 40 cm, 10 cm footrests and bars to prevent accidental opening/closing, the Svelt SMAXI514 ladder is extremely safe and easy to use.
Main features of the Castellana Maxi Svelt range of ladders:
- Ramp upright section 200 x 30 mm
- Ramp inclination 55°
- Ramp width 60 cm
- Look at 1m Body
- Larger non-slip platform with 10 cm high footrest
- Self-braking spring system
- Base widener with locking supports
- Shelf for holding objects with a capacity of 15 kg
- Foldable with lifting/moving handles
- Increased non-slip steps, 20 cm deep and 23 cm apart
- Ergonomic and enlarged non-slip rubber pads for maximum grip on the ground
Avoiding injuries when using ladders is essential. For this reason, a ladder with 20 cm deep rungs and a safety railing is the ideal choice. Accidents on ladders are often caused by incorrect use.
The Svelt Castellana Maxi SMAXI514 14-step ladder features:
- Height from ground to platform 3.22 m
- Total height of the staircase 4.23 m
- Maximum height reachable by hand 5.30 m
- Additional stabilizer on the ramp
- Ground footprint 1.48 x 3.26 m
- In accordance with Italian Legislative Decree 81/2008
Functional specifications
Foldable
The Svelt Castellana Maxi is easy to fold and store, taking up minimal space. Once fully closed, the ladder folds flat, and the handrails can be removed to make it even more compact when not in use.
Storage Plan
The Svelt Castellana Maxi ladder's tool and storage tray can hold up to 15 kg. It's ideal for storing tools, plants, and anything else you need to keep your hands free during use.
Deep Pegs
The steps offer a generous 20 cm of foot support, ensuring complete stability for the user. Furthermore, this step ladder has a reduced distance between the rungs of just 23 cm, making it easier to climb up and down the ladder.
Non-slip feet
The feet of this Svelt Aluminum ladder are non-slip for even greater stability.
Lifting Handles
The two stabilizing bars located in the center of the Svelt Castellana Maxi heavy-duty ladder, in addition to further increasing safety during use, allow it to be lifted for easy movement.
Watch the Video
Characteristics
- Maxi Platform in enlarged aluminium 53 x 92 cm
- Ergonomic, oversized pads in non-slip PVC
- Non-slip steps: 10 cm tread
- Distance between one rung and the other step 23 cm
- Bodyguard 100 cm
- Reinforced backrest with 0° inclination
High technical quality and Made in Italy .
5 year warranty
Svelt products are guaranteed for 5 years, demonstrating their high quality and reliability (valid for Italy only).
Technical Data
| Model | SMAXI514 |
| Pegs | 14 |
| Ramp uprights | 200 x 30 mm |
| Ramp Inclination | 55° |
| Peg depth | 20 cm |
| Distance between steps | 23 cm |
| Storage Platform | Yes |
| Maximum height reachable by arm | 5.30 m |
| Total Height of the Staircase | 4.23 m |
| Height from ground to platform | 3.22 m |
| Ground Clearance | 1.48 x 3.26 m |
| Certification | Legislative Decree 81/08 |
| Max capacity | 150 kg |
| Weight | 69 kg |
