Svelt Castellana MAXI SMAXI514
Castle Ladder 14 Steps
D.Lgs.81/2008
MPN: SMAXI514
Working Height 3.22-5.30 m
14 steps - 69 Kg
Max. 150 Kg - EN 131
€1,550.00
€1,270.49 tax excl.
Warranty 2
years
Shipped on Pallet

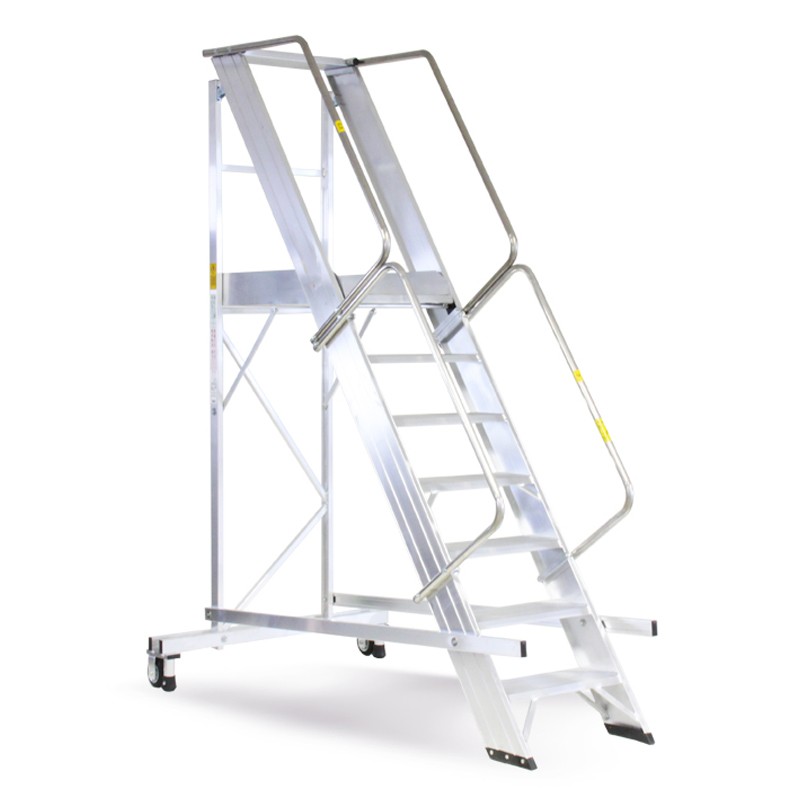

Svelt Castellana Maxi SMAXI514 - Castle Ladder with Guardrail 14 Steps
The Svelt Castellana Maxi SMAXI514 Tower Ladder is an extra-robust and durable professional-use ladder. Svelt Castellana Maxi SMAXI514 complies with Italian Legislative Decree 81/2008 and is therefore suitable for professional indoor use in the absence of wind.
Svelt Castellana Maxi SMAXI514 has wider steps and platform to facilitate climbing and descending, also thanks to a comfortable 55° inclination. This feature, combined with steps and rungs spaced only 23 cm apart and 20 cm deep rungs, ensures easy, comfortable, and safe climbing.
Its design features a backrest perpendicular to the ground, allowing easy access to the work area. Furthermore, the ladder is equipped with an automatic braking system and stabilizer feet to ensure optimal safety during use.
This ladder has been designed to withstand intensive and professional use, and is suitable for a wide range of contexts, including warehouses with shelving, specialized machinery, airport areas, sports facilities, and cemetery niches.
Composed of 14 steps, 2 wheels, 2 armrests, platform, tool tray, guardrail, removable handrails with 40 cm depth, 10 cm toe boards, and anti-opening/closing bars, the Svelt SMAXI514 ladder is extremely safe and easy to use.
Main Features of the Svelt Castellana Maxi ladder range:
- Ramp upright section 200 x 30 mm
- Ramp inclination 55°
- Climbing ramp width 60 cm
- 1 m Guardrail
- Oversized non-slip platform with 10 cm high toe board
- Spring self-braking system
- Base spreader with locking supports
- Tool tray with 15 Kg capacity
- Collapsible with lifting/moving handles
- Oversized non-slip steps 20 cm deep with 23 cm spacing
- Ergonomic and oversized non-slip rubber feet for maximum grip on the ground
Avoiding injuries during ladder use is crucial. For this reason, the ladder equipped with 20 cm deep rungs and a safety guardrail is the ideal choice. Often, accidents on ladders are caused by incorrect use.
The Svelt Castellana Maxi SMAXI514 14-step ladder features:
- Height from ground to platform 3.22 m
- Total ladder height 4.23 m
- Maximum reachable height by hand 5.30 m
- Additional stabilizer on the climbing ramp
- Footprint 1.48 x 3.26 m
- Compliant with Italian D.Lgs. 81/2008
Functional Specifications
Collapsible
The Svelt Castellana Maxi is easy to fold and store with minimal space. Once fully closed, the ladder flattens, and the handrails can be removed to make it even less bulky when not in use.
Tool Tray
The tool and equipment tray on the Svelt Castellana Maxi ladders can hold up to 15 Kg. Ideal for storing work tools, plants, and anything needed to keep your hands free during use.
Deep Rungs
The steps allow for a foot support of 20 cm, ensuring full user stability. Additionally, this castle ladder has a reduced rung spacing of only 23 cm, facilitating climbing and descending the ladder.
Non-Slip Feet
The feet of this Svelt Aluminum ladder are non-slip for even greater stability.
Lifting Handles
The two stabilizer bars located in the center of the Svelt Castellana Maxi heavy-duty ladder, in addition to further increasing safety during use, allow it to be lifted for simplified movement.
Watch the Video
Features
- Maxi Oversized aluminum platform 53 x 92 cm
- Oversized ergonomic non-slip PVC feet
- Non-slip steps: 10 cm tread
- Distance between rungs: 23 cm
- Guardrail 100 cm
- Reinforced backrest at 0° inclination
- Made in Italy
Technical Data
| Model | SMAXI514 |
| Rungs | 14 |
| Ramp uprights | 200 x 30 mm |
| Ramp Inclination | 55° |
| Rung depth | 20 cm |
| Distance between steps | 23 cm |
| Tool Tray Platform | Yes |
| Max. reachable height by arm | 5.30 m |
| Total Ladder Height | 4.23 m |
| Height from ground to platform | 3.22 m |
| Footprint | 1.48 x 3.26 m |
| Certification | D.Lgs.. 81/08 |
| Max Load | 150 kg |
| Weight | 69 Kg |
