Svelt Castellana MAXI SMAXI509
Professional Castle Ladder
9 Steps UNI EN131
MPN: SMAXI509
Working Height 2.07-4.07 m
9 steps - Kg 49.50
Max. 150 Kg - EN 131
€1,190.00
€975.41 tax excl.
Warranty 2
years
Shipped on Pallet

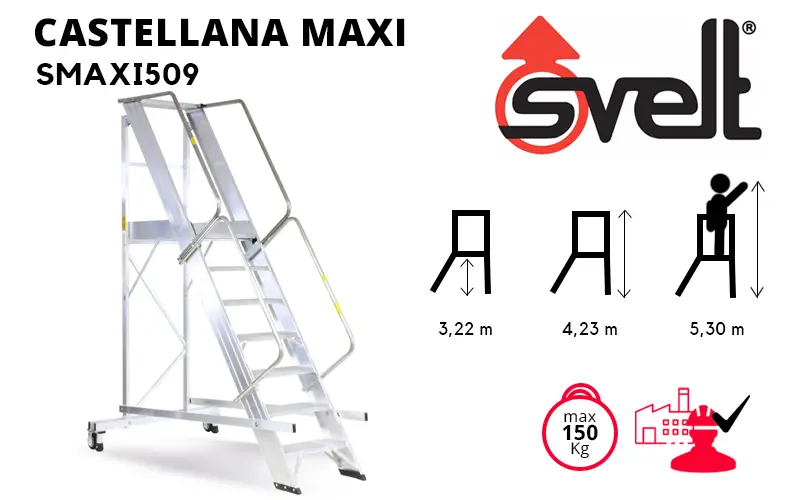

Svelt Castellana Maxi SMAXI509 - Castle Ladder with Handrail 9 Steps
The SMAXI509 Tower Ladder, from the Svelt Castellana Maxi series, stands out for its exceptional robustness and durability. Featuring wider steps and platform, this ladder also offers a climbing ramp with a very steep inclination of 55°, making climbing up and down simpler and more comfortable. These specifications, combined with a distance of only 23 cm between steps and deep rungs of 20 cm, ensure easy, simple, and safe climbing.
Its design with a backrest perpendicular to the ground allows optimal access to the work area, while an automatic braking system, accompanied by stabilizer feet, ensures safe use.
Designed to withstand intensive and professional use, this ladder is perfectly suited for a wide range of contexts, including use in warehouses for shelving, in specialized machinery, in airport areas, in sports facilities, and even in cemetery niches.
Composed of 9 steps, 2 wheels, 2 armrests, platform, tool tray, guardrail, removable handrails with a depth of 40 cm, 10 cm toe boards, and anti-opening/closing bars, the Svelt SMAXI509 ladder is extremely safe and easy to use.
Main Features of the Svelt Castellana Maxi ladder range:
- Ramp upright section 200 x 30 mm
- Ramp inclination 55°
- Climbing ramp width 60 cm
- 1 m Guardrail
- Oversized non-slip platform with 10 cm high toe board
- Self-braking spring system
- Base spreader with locking supports
- Tool tray with 15 Kg capacity
- Collapsible with lifting/moving handles
- Oversized non-slip steps 20 cm deep with 23 cm spacing
- Ergonomic and oversized non-slip rubber feet for maximum grip on the ground
Avoiding injuries during ladder use is fundamental. For this reason, the ladder equipped with 8 cm deep rungs and a safety parapet is the ideal choice.
The Svelt Castellana Maxi SMAXI509 9-step ladder features:
- Height from ground to platform 2.07 m
- Total ladder height 3.08 m
- Maximum reachable height by hand 4.07 m
- Footprint 1.32 x 2.45 m
- Certified according to EN UNI 131 and D.Lgs 81/08 standards
Functional Specifications
Collapsible
The Svelt Castellana Maxi is easy to fold and store with minimal space. Once fully closed, the ladder flattens, and the handrails can be removed to make it even less bulky when not in use.
Tool Tray
The tool and equipment tray on Svelt Castellana Maxi ladders can hold up to 15 Kg. Ideal for storing work tools, plants, and anything needed to keep your hands free during use.
Deep Rungs
The steps allow for a foot support of 20 cm, ensuring full user stability. Furthermore, this castle ladder has a reduced distance between rungs of only 23 cm, facilitating climbing up and down the ladder.
Non-slip Feet
The feet of this Svelt Aluminum ladder are non-slip for even greater stability.
Lifting Handles
The two stabilizing bars located in the center of the Svelt Castellana Maxi heavy-duty ladder, in addition to further increasing safety during use, allow it to be lifted for simplified movement.
Watch the Video
Features
- Maxi Oversized aluminum platform 53 x 92 cm
- Oversized ergonomic non-slip PVC feet
- Non-slip steps: 10 cm tread depth
- Distance between rungs: 23 cm
- Guardrail 100 cm
- Reinforced backrest at 0° inclination
- Made in Italy
Technical Data
| Model | SMAXI509 |
| Steps | 9 |
| Ramp uprights | 200 x 30 mm |
| Ramp Inclination | 55° |
| Rung depth | 20 cm |
| Distance between steps | 23 cm |
| Tool Tray Platform | Yes |
| Max. reachable height by arm | 4.07 m |
| Total Ladder Height | 3.08 m |
| Height from ground to platform | 2.07 m |
| Footprint | 1.32 x 2.45 m |
| Certification | EN 131 |
| Max Load | 150 kg |
| Weight | 49.50 Kg |
