Svelt Castellana MAXI SMAXI506
Tower Ladder with Wheels
6 Steps UNI EN131
MPN: SMAXI506
Working height 1.38-3.40 m
6 steps - 39 kg
Max. 150 Kg - EN 131
€970.00
€795.08 tax excl.
Warranty 5
years
Shipped on Pallet
Svelt Castellana Maxi SMAXI506 - Tower ladder with 6 steps for intensive use
The SMAXI506 ladder , part of the Svelt Castellana Maxi series, stands out for its remarkable sturdiness and resistance. Characterized by wider steps and platform, this ladder also has a ramp with a very accentuated inclination , reaching an angle of 55 degrees for easier and more comfortable climbing and descending. These specifications, combined with a distance of only 23 cm between the steps and 20 cm deep rungs, ensure a smooth, simple and safe climb.
Its design with a backrest perpendicular to the ground allows for optimal approach to the work area, while an automatic braking system, together with stabilizing feet, ensures safe use.
Designed to withstand heavy-duty, professional use , this ladder is perfectly suited to a variety of settings, including warehouse shelving, specialist machinery, airport areas, sports facilities and even cemetery niches.
Made up of 6 steps, 2 wheels , 2 armrests , platform , object holder , body guard , removable handrails with a depth of 40 cm, 10 cm footrests and bars to prevent accidental opening/closing, the Svelt SMAXI506 ladder is extremely safe and easy to use.
Main Features of the Castellana Maxi Svelt ladder range:
- Ramp upright section 200 x 30 mm
- Ramp inclination 55°
- Ramp width 60 cm
- Look at 1m Body
- Increased non-slip platform with 10 cm high footrest
- Self-braking spring system
- Base expander with locking supports
- Shelf for objects with a capacity of 15 kg
- Foldable with lifting/moving handles
- Anti-slip oversized steps 20 cm deep with 23 cm spacing
- Ergonomic and enlarged non-slip rubber pads for maximum grip on the ground
Avoiding injuries when using ladders is essential. For this reason, the Ladder with 8 cm deep rungs and safety railing is the ideal choice.

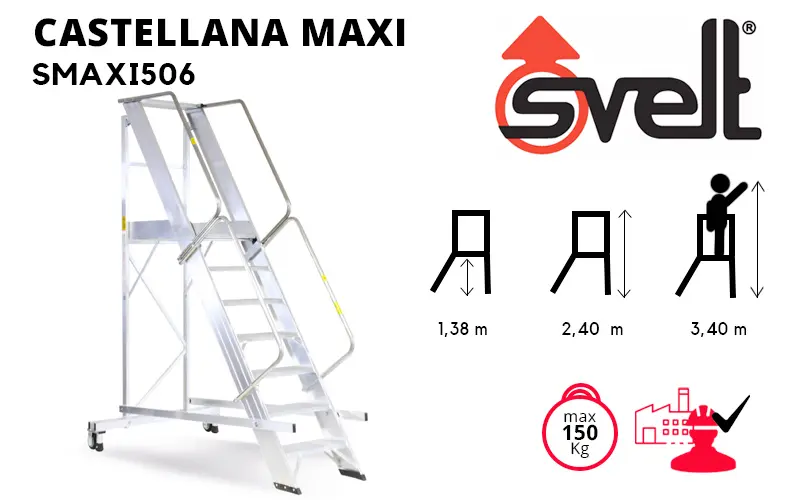

The Svelt Castellana Maxi SMAXI506 6-step ladder features:
- Height from ground to platform 1.38 m
- Total height of the ladder 2.40 m
- Maximum height reachable by hand 3.40 m
- Base footprint 1.00 x 1.97 m
- Certified according to EN UNI 131 and Legislative Decree 81/08
Functional specifications
Foldable
Svelt Castellana Maxi is easy to fold and store with minimal space. Once completely closed, the ladder flattens and the handrails can be removed to make it even less bulky when not in use.
Storage Plan
The Svelt Castellana Maxi ladders' tool and object holder shelf can hold up to 15 kg in weight. Ideal for storing work tools, plants and anything else you need to keep your hands free during use.
Deep Pegs
The steps allow a foot support of 20 cm ensuring full stability for the user. Furthermore, this ladder has a reduced distance between the rungs of only 23 cm making it easier to climb up and down the ladder.
Non-slip feet
The feet of this Svelt Aluminum ladder are non-slip for even greater stability.
Lifting Handles
The two stabilizing bars placed in the center of the Svelt Castellana Maxi intensive use ladder, in addition to further increasing safety during use, allow it to be lifted for easy movement.
Watch the Video
Characteristics
- Maxi Platform increased in aluminum 53 x 92 cm
- Ergonomic pads in anti-slip PVC
- Non-slip steps: 10 cm tread
- Distance between one rung and the other step cm 23
- Bodyguard cm 100
- Reinforced backrest with 0° inclination
High technical quality and Made in Italy .
5 year warranty
Svelt products are guaranteed for 5 years to demonstrate their high quality and reliability (valid only for Italy).
Technical Data
| Model | SMAXI506 |
| Pegs | 6 |
| Ramp uprights | 200 x 30 mm |
| Ramp Inclination | 55° |
| Peg depth | 20 cm |
| Distance between steps | 23 cm |
| Storage Platform | Yes |
| Max. height reachable by arm | 3.40 m |
| Total Height of Ladder | 2.40 m |
| Height from ground to platform | 1.38 m |
| Certification | EN 131 |
| Max capacity | 150 kg |
| Weight | 39 Kg |
Technical Data
| Model | SMAXI506 |
| Pegs | 6 |
| Ramp uprights | 200 x 30 mm |
| Ramp Inclination | 55° |
| Peg depth | 20 cm |
| Distance between steps | 23 cm |
| Storage Platform | Yes |
| Max. height reachable by arm | 3.40 m |
| Total Height of Ladder | 2.40 m |
| Height from ground to platform | 1.38 m |
| Certification | EN 131 |
| Max capacity | 150 kg |
| Weight | 39 Kg |
