Gierre Modula AL300
Double Extendable Ladder
Multifunction in Aluminum
MPN: AL300
EAN: 8013186243002
Working height 3.02 ÷ 3.52 m
2x6 steps - 7kg
Max. 150 kg - EN 131
€89.00
€72.95 tax excl.
Gierre Modula AL300 - Extended or Double Transformable Ladder - Multifunction in Aluminum
Gierre Modula AL300 is a ladder that can be configured in two ways: extended or double , and is particularly suitable for light work.
The joint is made of steel , the 2x6 rungs are 25x25 mm , with a square section and the uprights are made of knurled aluminium .
To give this ladder greater safety , there is an anti-opening safety rope , furthermore there is an aluminium hook, complete with anti-slip device and a stabilising bar with non-slip feet for maximum grip on the ground .
In summary, the main features that distinguish the Gierre Modula AL300 ladder are:
- Max. load 150 Kg
- 12 steps total
- Maximum working height 3.02 ÷ 3.52 m
- Scale weight 7 Kg
- In compliance with Legislative Decree 81/08
- EN 131 standard
- Made in Italy

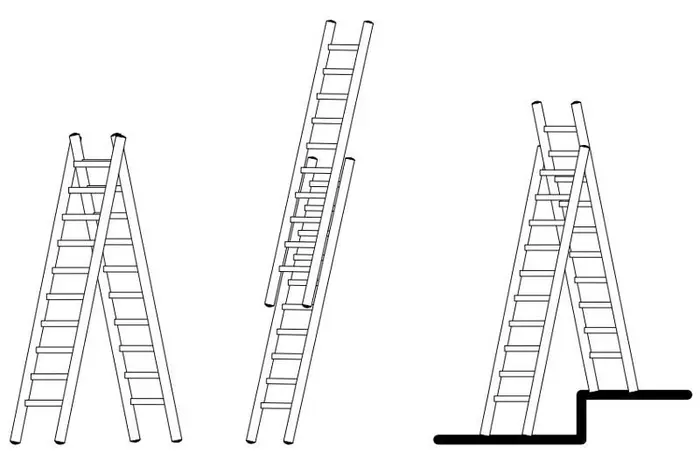

POSSIBLE CONFIGURATIONS:
DUAL CONFIGURATION
The Gierre Modula AL300 ladder, when used in the double configuration, allows a working height of 3.02 m .
EXTENDED CONFIGURATION
The Gierre Modula AL300 ladder, when used in the extended configuration, allows a working height of 3.52 m.
Technical specifications
STEEL JOINT
ALUMINUM HOOK
Aluminum hook, complete with anti-slip device.
PEGS
25x25 mm peg, square section.
SPACE BAR
Stabilizer bar with non-slip feet, maximum grip on the ground.
Watch the video
Characteristics
- Steel joint
- Peg 25 x 25 mm , square section
- Pegs 2 x 6
- Capacity up to 150 kg
- Knurled aluminum uprights
- Anti-opening safety rope
- Aluminum hook, complete with anti-slip device
- Stabilizer bar with non-slip feet
- Non-slip feet, maximum grip on the ground
Technical Data
| Pegs | 2 x 6 (12 total) |
| Working Height | 3.02 ÷ 3.52 m |
| Working Height Double Configuration | 3.02 m |
| Working Height Extended Configuration | 3.52 m |
| Peg | 25 x 25 mm |
| Piolo Section | Square |
| Flow rate | 150 kg |
| Dimensions when closed | 199 x 45 x 10 cm |
| Weight | 7 Kg |
Technical Data
| Pegs | 2 x 6 (12 total) |
| Working Height | 3.02 ÷ 3.52 m |
| Working Height Double Configuration | 3.02 m |
| Working Height Extended Configuration | 3.52 m |
| Peg | 25 x 25 mm |
| Piolo Section | Square |
| Flow rate | 150 kg |
| Dimensions when closed | 199 x 45 x 10 cm |
| Weight | 7 Kg |
