Gierre Modula AL410
Triple Ladder 3x8
Telescopic Steel

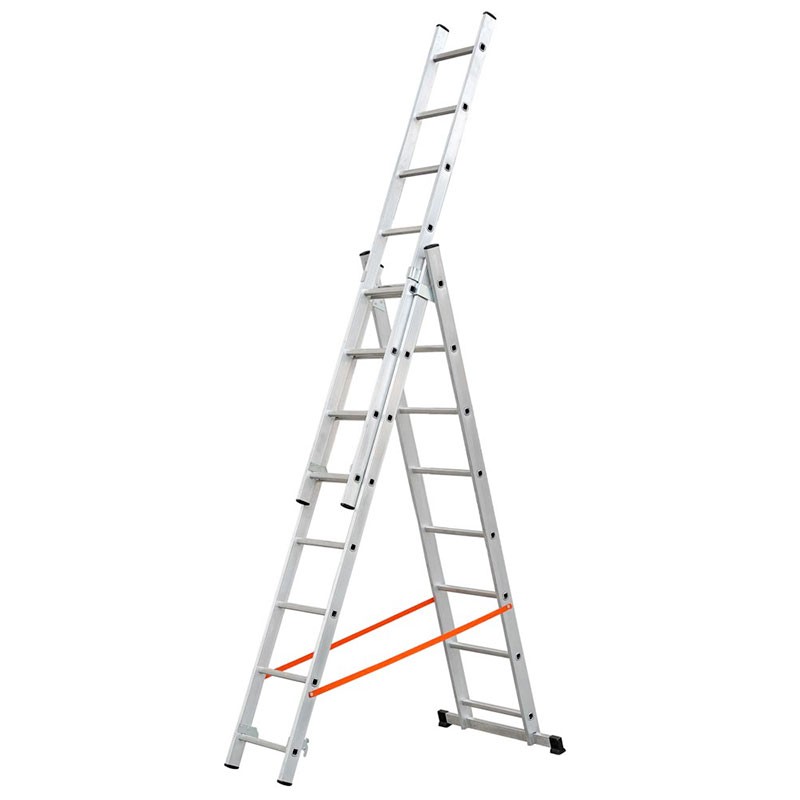

Gierre Modula AL410 - Triple Transformable Ladder - Multifunction in Steel

The Gierre Modula AL410 ladder stands out for its versatility , offering multiple possibilities of use, made with reinforced electro-welded steel , this ladder ensures a solid structure and unparalleled resistance .

The joint of the ladder is also made of electro-welded steel , ensuring excellent stability during use. Thanks to its unique characteristics, this ladder can be adapted to three different configurations : extended , double and lame .

In summary, the main features that distinguish the Gierre Modula AL420 ladder I am:

• Max. load 150 Kg
• 24 steps total
• Maximum working height 3.48 ÷ 5.69 m
• Ladder weight 13.2 Kg
• In compliance with Legislative Decree 81/08
• EN 131 standard
• Made in Italy

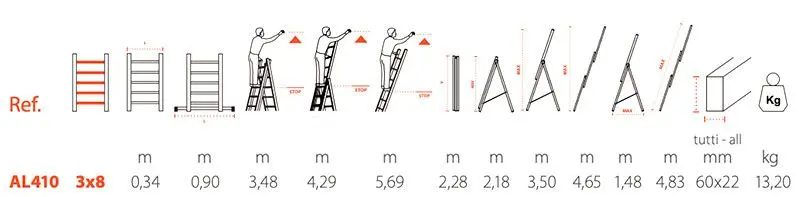

TECHNICAL SPECIFICATIONS

Gierre Modula AL410 is a particularly versatile ladder, made of reinforced electro-welded steel , the joint of the ladder is also in electro-welded steel , providing stability during use .

The ladder can be used in three different configurations :

• Fully extended;
• Double or cantilevered;
• Lame position.

The ability to adjust the ladder in these modes allows it to be adapted to different needs and work situations.

The Modula AL410 ladder is equipped with rungs with a square section measuring 25x25 mm , providing an adequate surface to ensure stability during use .

The ladder is equipped with anti-opening ropes that prevent accidental opening during use, furthermore, the feet are made of non-slip rubber , providing additional safety and stability when the ladder is positioned.

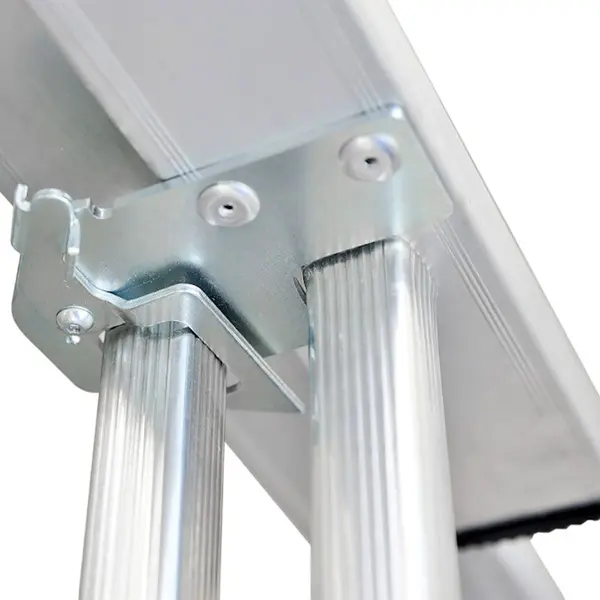

ALUMINUM HOOK WITH ANTI-SLIP DEVICE

To ensure greater safety, this Gierre Modula AL410 ladder is equipped with an aluminium hook complete with an anti-slip device , an additional mechanism that prevents the ladder from slipping or moving during use, helping to prevent accidents .

The Gierre Modula AL410 ladder is therefore designed to offer notable stability , safety and flexibility in the different modes of use, allowing a variety of jobs to be carried out effectively and safely .

The maximum capacity of the Gierre Modula AL410 ladder is 150 kg and it is completely Made in Italy .

STABILIZER BAR WITH NON-SLIP FEET

POSSIBLE CONFIGURATIONS:

DUAL CONFIGURATION

The Gierre Modula AL410 ladder with double configuration offers a maximum working height of 3.48 m and a maximum height of the open ladder of 2.18 m .

LAME CONFIGURATION

The Gierre Modula AL410 ladder with a lame configuration offers a maximum working height of 4.29 m and a maximum height of the open ladder of 3.50 m .

EXTENDED CONFIGURATION

The Gierre Modula AL410 ladder with extended configuration offers a maximum working height of 5.69 m and a maximum height of the open ladder of 4.65 m .

Watch the video

Characteristics

• Solid aluminum structure
• Safety tie rod
• Anti-opening rope
• Knurled aluminum uprights
• Steel joint
• Peg 25x25 mm , square section
• Aluminum hook , complete with anti-slip device
• Stabilizer bar
• Non-slip feet
