Gierre Modula AL420
Triple Extendable Ladder - Multifunction in Steel

Gierre Modula AL420 - Triple Extendable Ladder - Transformable in Steel

The Gierre Modula AL420 ladder is a versatile model that offers various usage options, made of reinforced electro-welded steel , which guarantees solidity and resistance .

The ladder joint is also made of electro-welded steel, providing stability during use. The ladder can be used in three different configurations: extended , double and in a lame position.

In summary, the main features that distinguish the Gierre Modula AL420 ladder I am:

• Max. load 150 Kg
• 30 steps total
• Maximum working height 4.10 ÷ 6.78 m
• Ladder weight 18.5Kg
• In compliance with Legislative Decree 81/08
• EN 131 standard
• Made in Italy

TECHNICAL SPECIFICATIONS

Gierre Modula AL420 is a particularly versatile ladder, made of reinforced electro-welded steel , the joint of the ladder is also in electro-welded steel , providing stability during use .

The ladder can be used in three different configurations :

• Fully extended;
• Double or cantilevered;
• Lame position.

The ability to adjust the ladder in these modes allows it to be adapted to different needs and work situations.

The ladder rungs are square in section and measure 25x25 mm , providing an appropriate support surface to ensure stability during use.

The ladder is equipped with anti-opening ropes that prevent accidental opening during use, furthermore, the feet are made of non-slip rubber , providing additional safety and stability when the ladder is positioned.

ALUMINUM HOOK WITH ANTI-SLIP DEVICE

To ensure a higher level of safety, the ladder is equipped with an aluminium hook complete with an anti-slip device , an additional mechanism that prevents the ladder from slipping or moving during use, helping to prevent accidents .

The Gierre Modula AL420 ladder is therefore designed to offer stability , safety and flexibility in the different modes of use, allowing a variety of jobs to be carried out effectively and safely .

The maximum capacity of the Gierre Modula AL420 ladder is 150 kg and it is completely Made in Italy .

STABILIZER BAR WITH NON-SLIP FEET

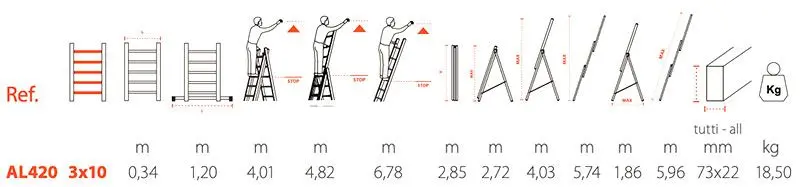

POSSIBLE CONFIGURATIONS:

DUAL CONFIGURATION

The Gierre Modula AL420 ladder with double configuration offers a maximum working height of 4.01 m and a maximum height of the open ladder of 2.72 m .

LAME CONFIGURATION

The Gierre Modula AL420 ladder with cantilever configuration offers a maximum working height of 4.82 m and a maximum height of the open ladder of 4.03 m .

EXTENDED CONFIGURATION

The Gierre Modula AL420 ladder with extended configuration offers a maximum working height of 6.78 m and a maximum height of the open ladder of 5.74 m .

Watch the video

Characteristics

• Solid aluminum structure
• Safety tie rod
• Anti-opening rope
• Knurled aluminum uprights
• Steel joint
• Peg 25x25 mm , square section
• Aluminum hook , complete with anti-slip device
• Stabilizer bar
• Non-slip feet
