Honda HSS/HSM 1380i1
Hybrid Snow Thrower Dual Stage

Honda HSS / HSM 1380i1 - Electric Start Hybrid Snow Throwers with 65/85 ton/h ejection

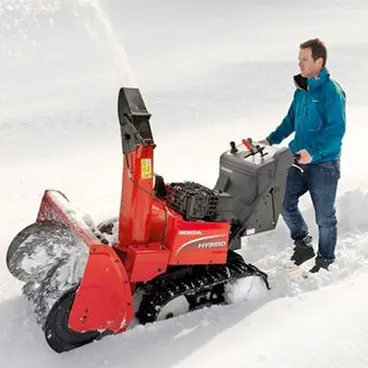

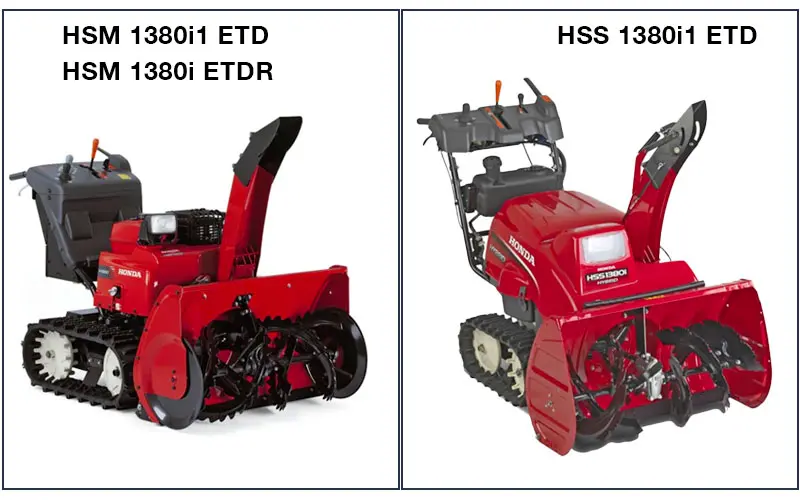

The Honda HSS 1380i1 ETD, HSM 1380i1 ETD and HSM 1380i ETDR snow throwers are professional snow throwers with hybrid technology designed to combine the power of electric with that of a Honda 4-stroke engine with intelligent electrical control systems.

HYBRID TECHNOLOGY FEATURES:

• A Honda engine that powers the cutter and jet;
• Two electric motors provide traction, saving fuel;
• Unrivaled silence guaranteed: 30% quieter than standard snow blowers thanks to hybrid technology;
• Reduced emissions and consumption compared to snowploughs without hybrid technology;

These Honda HSS 1380i1 ETD, HSM 1380i1 ETD and HSM 1380i ETDR snow throwers are the best choice for professionals and are also ideal for use in difficult conditions .

IN PARTICULAR THE MODELS DIFFER FROM EACH OTHER BY THE FOLLOWING CHARACTERISTICS:

Functional Specifications

The HSM models integrate the technology (Intelligent Control System) which allows the operator to choose automatic use rather than manual use. In case of automatic use the engine works in fully automatic mode optimizing the efficiency of the machine.

These snow ploughs are developed for professional use in case of large quantities of snow since they are able to move from 60 t/h (HSS model) to 83 t/h (HSM models).

Automatic Restore

Automatic reset refers to the ability of the snow thrower to automatically return the auger to its original starting position after switching from reverse to forward gear.

Tilt of the cutter on the longitudinal axis

This is a technology capable of automatically tilting the cutter according to the ground conditions, in the case of uneven, uphill or downhill pavements.

Technical specifications

The Honda HSS 1380i1 ETD snow thrower model is equipped with a 389 cc GXV390 petrol engine with a power of 7.6 kW at 3600 rpm while the HSM 1380i1 ETD and ETDR models have a 389 cc Honda iGX390 engine with a power of 8.7 kW at 3600 rpm .
For the HSS model the maximum distance of the shoveled snow jet is 17 metres while with the two HSM models a distance of 19 metres is reached, the working width also varies respectively from 81 cm to 80 cm and the height from 51 cm to 58 cm depending on the model.

Standard headlight

These Honda snow blowers are equipped with a powerful adjustable headlight that makes them easy to use even in the dark.

Tracked model

The tracks provide greater traction in most snow conditions and make this snow blower ideal for rough terrain and gravel paths . They do not slip or slide, even on the steepest slopes , so you can have full control .

Electric start

Installed in addition to the standard recoil starter, the simple electric starter makes starting the snow thrower even easier.

Remote fireplace control

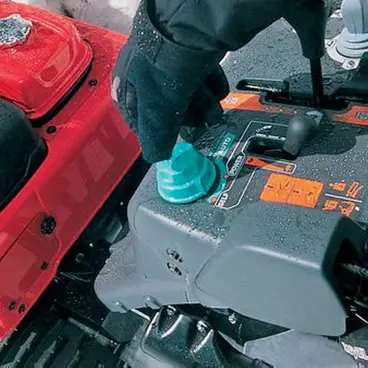

The joystick installed on all three Honda professional snow thrower models electronically controls the direction and tilt of the snow discharge chute.

Zero Turn

The Zero Turn function saves time and effort on the snow, offering the possibility of turning the machine 360° to ensure maximum control .

Hybrid technology

The unique hybrid technology uses the engine’s power in two ways, first driving a generator to charge the batteries that provide electric drive to the tracks, and then delivering maximum power directly to the auger for unrivaled snow clearing.

Rotation function (HSM models only)

When the snow thrower is used on a slope, the rotation function allows the auger to be tilted for clearing on level ground.

Auto-choke (HSM models only)

The choke is used to draw more fuel into the cylinder by restricting the air flow . Thanks to the auto-choke function, there is no need to adjust the choke when the engine is cold. The snow thrower starts easily , saving a lot of time and energy .

Mode selector (HSM models only)

Only HSM hybrid snow throwers allow you to select the operating mode that best suits your capabilities and working conditions.

Self-diagnosis monitoring (HSM models only)

The snow thrower's self-diagnosis system detects anomalies during start-up and operation and signals them via one of the five warning lights .

Reset mechanism (HSM models only)

The reset mechanism automatically returns the cutter to its normal position . Particularly convenient for tackling deep snow even on slopes .
