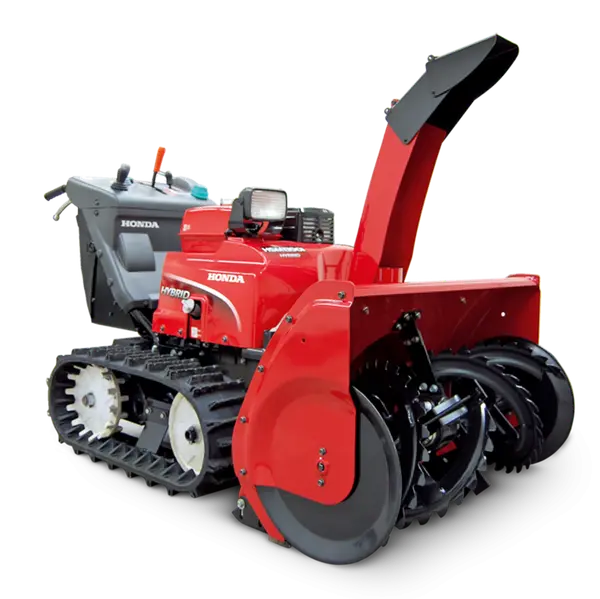

Honda HSM 1390i2 ETDR - 92cm Two-Stage Snow Blower iGX390
The Honda HSM 1390i2 ETDR is a two-stage snow thrower with tracks that offer greater traction in most snow conditions and make it ideal for rough terrain and gravel paths.
The tracks do not slip or slide even on the steepest slopes, making them particularly practical and safe . This snow blower is ideal for particularly deep snow up to 58 cm .
Technical specifications

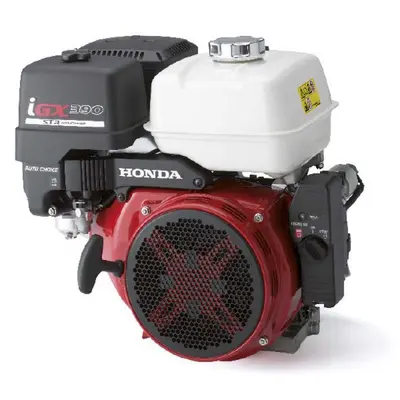

Honda HSM 1390i2 ETDR is equipped with an iGX390 petrol engine that allows a low speed of 0 - 1.4 and high speed of 1.4 - 3 , while in automatic mode low speed of 0 - 1 and high speed of 1 - 2.1 . The engine has a displacement of 389 cc and produces a power of 8.7 kW at 3600 RPM , the tank has a capacity of 5.7 L and is able to provide an autonomy of 2.2 h .
The working width of this snow thrower is 92 cm , while the height is 58 cm . The maximum capacity is 83 tons/hour and the maximum snow throwing distance reaches 19 meters . The snow thrower allows an electrical adjustment of the height of the auger and an electrical adjustment of the direction of the jet with double-stage ejection. It is also equipped with a steering clutch and transmission with two electric motors .

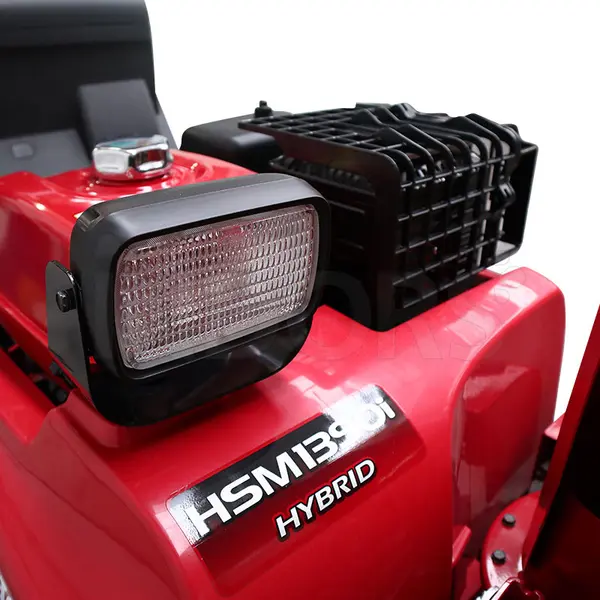

Standard headlight
Honda HSM 1390i2 ETDR is equipped with a powerful adjustable headlight that makes it easy to use even in the dark.
Tracked model
The tracks provide greater traction in most snow conditions and make this snow blower ideal for rough terrain and gravel paths . They do not slip or slide, even on the steepest slopes, so you can have full control .
Electric start
Installed in addition to the standard recoil starter, the simple electric starter makes starting the snow thrower even easier.

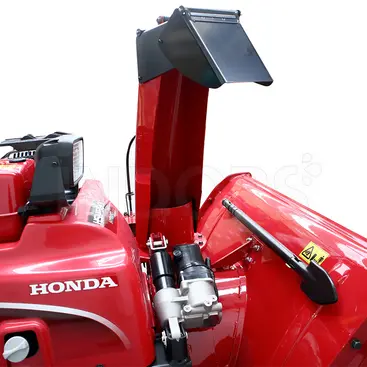

Remote fireplace control
The joystick installed on the HSM 1390i2 ETDR electronically controls the direction and inclination of the snow discharge chute.

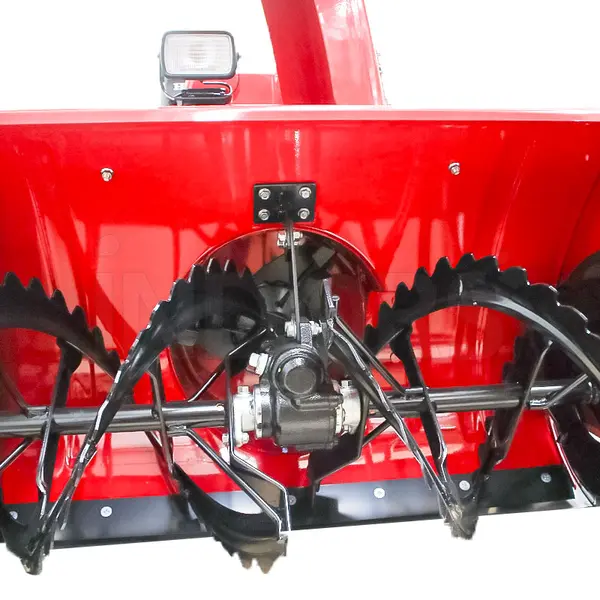

Cutter lifting
The tiller lifting mechanism reduces the risk of damage when the tiller is automatically raised when reverse gear is selected, the tiller then returns to the last operating position when forward gear is re-engaged.
Rotation function
When the snow thrower is used on a slope, the rotation function allows the auger to be tilted for clearing on level ground.
Auto-choke
The choke is used to draw more fuel into the cylinder by restricting the air flow . Thanks to the auto-choke function, there is no need to adjust the choke when the engine is cold. The HSM 1390i2 ETDR snow thrower starts easily , saving you a lot of time and energy .
Mode selector
Only the HSM 1390i2 ETDR hybrid snow throwers allow you to select the operating mode that best suits your capabilities and working conditions.
Self-diagnosis monitoring
The snow thrower's self-diagnosis system detects anomalies during start-up and operation and signals them via one of the five warning lights .

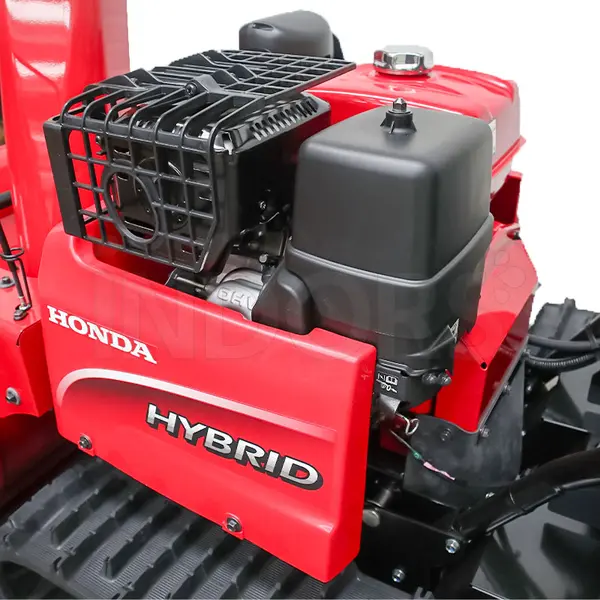

Hybrid technology
The unique hybrid technology uses the engine’s power in two ways, first driving a generator to charge the batteries that provide electric drive to the tracks, and then delivering maximum power directly to the auger for unrivaled snow clearing.
Recovery mechanism
The reset mechanism automatically returns the cutter to its normal position . Particularly convenient for tackling deep snow even on slopes .
Zero Turn
The Zero Turn function saves time and effort on the snow, offering the possibility of turning the machine 360° to ensure maximum control .
Characteristics
- iGX390 Engine
- Power 8.7 kW at 3600 RPM
- Standard headlight
- Tracked model
- Working width 92 cm
- Working height 58 cm
- Electric start
- Remote fireplace control
- Cutter lifting
- Rotation function
- Auto-choke
- Self-diagnosis monitoring
- Hybrid technology
- Recovery mechanism
- Zero Turn
