Zanon SLE 10 Mobile
Electric Log Splitter
Mobile Worktop

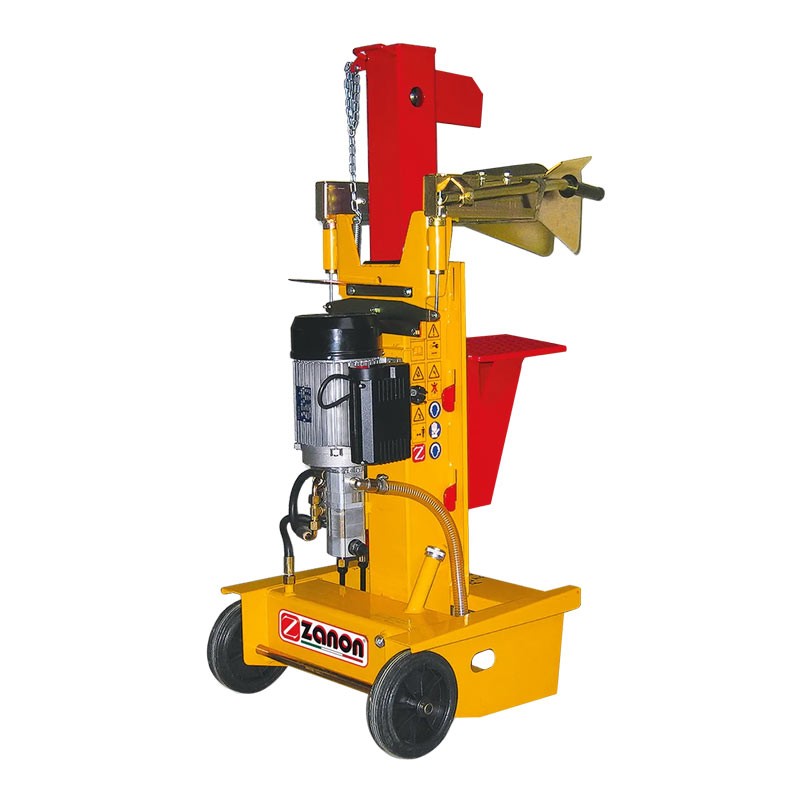

Zanon SLE-10 Mobile - 10-Ton Electric Log Splitter with Mobile Worktop

The Zanon SLE 10 Mobile is a professional electric log splitter with a mobile table designed for intensive use in the agricultural, forestry, and professional firewood processing sectors, where structural reliability, operational continuity, and mechanical precision are essential requirements. This professional, Made in Italy machine was developed for the vertical splitting of logs up to 50 cm in diameter and 90 cm in height , offering a technical combination of 10 tonnes of hydraulic power, robust construction, and ergonomic material handling even in the most demanding jobs.

Equipped with a 3 HP single-phase 220V electric motor, a high-performance hydraulic system with a compact double pump with a 2+6 cut-off valve and dual-speed function, the Zanon SLE 10 Mobile log splitter is designed for professionals who require high production output, optimized cycle times, and certified safety. The reinforced mobile work surface , the adjustable automatic limit switch control , and the hydraulic distributor with automatic drawer return make this model a highly specialized solution for the efficient processing of logs of varying sizes.

TECHNICAL SPECIFICATIONS

In terms of power supply, the Zanon SLE 10 Mobile 220V electric log splitter integrates a high-performance 3 HP electric motor , configured to ensure constant power, high reliability, and lower operating costs compared to internal combustion solutions. The single-phase motor allows for professional use in operating environments equipped with a standard electrical network, while ensuring optimized energy management. The hydraulic system is composed of a compact, high-efficiency double pump with a 2+6 cut-off valve , designed to modulate pressure and flow rate based on the resistance of the material, improving feed rate and thrust capacity during work phases.

Upon request, the machine can be configured with a 380V three-phase power supply with 4 or 5 poles.

In terms of performance, the 10-ton log splitter cylinder can process logs up to 90 cm high , ensuring high and consistent thrust even on hard wood or large sections. The machine's dimensions of 72 x 90 x 108 cm and overall weight of 150 kg highlight a compact yet extremely stable structure, designed to withstand continuous professional stress. Integrated wheels improve mobility in the workplace, while compliance with Directive 2000/14/EC certifies compliance with European standards regarding the limitation of environmental noise.

FUNCTIONAL SPECIFICATIONS

Professional 10-ton electric log splitter

The Zanon SLE 10 Mobile 's hydraulic thrust system develops a pressure of 10 tons , an essential feature for professionals working on very tall or dense logs. This configuration allows for precise, progressive, and highly effective vertical splitting , reducing processing times and increasing productivity in continuous operations.

Reinforced mobile platform for logs up to 90 cm

The movable worktable allows the working surface to be adapted to the size of the log, improving ergonomics, safety, and load management. The reinforced structure is designed to support heavy and bulky timber without structural compromise, providing stability during all phases of positioning and cutting.

Double speed for maximum productivity

The dual-speed function optimizes the log splitter's performance by adjusting the feed speed according to the operating phase. This technology allows for faster idle movements and more precisely calibrated pressure during the actual splitting process, improving mechanical efficiency and reducing downtime.

Compact double pump with 2+6 shut-off valve

The compact double pump is one of the distinctive technical features of the Zanon professional log splitter, as it allows for advanced management of hydraulic pressure . The 2+6 valve optimizes the transition between speed and force, ensuring smooth operation, precision, and consistent performance even under heavy loads.

High flow hydraulic distributor

The hydraulic distributor with automatic slide return ensures faster work cycles and less manual intervention during resetting. This feature increases execution speed, improves hydraulic flow management, and reduces operator fatigue during prolonged professional work.

Automatic adjustable limit switch control

The automatic adjustable limit switch control system allows you to set the cylinder stroke based on the actual dimensions of the material being processed, optimizing each splitting cycle. This professional technology reduces wasted time, improves operational precision, and allows for advanced machine customization.

Certified safety and European compliance

The Zanon SLE 10 Mobile log splitter, Made in Italy, features safety devices designed to protect the operator in high-intensity professional environments. Compliance with the 2000/14/EC regulation represents an additional technical advantage, ensuring noise control and compliance with the highest European standards for safety and operational sustainability.

Characteristics

• Professional multipurpose log splitter
• With movable worktop
• Power supply
• Power 3 HP
• Cutting power 10 Ton
• Split length 90 cm
• Weight 150 kg
