Zanon SLE-9
9 Ton Electric Tilting Log Splitter

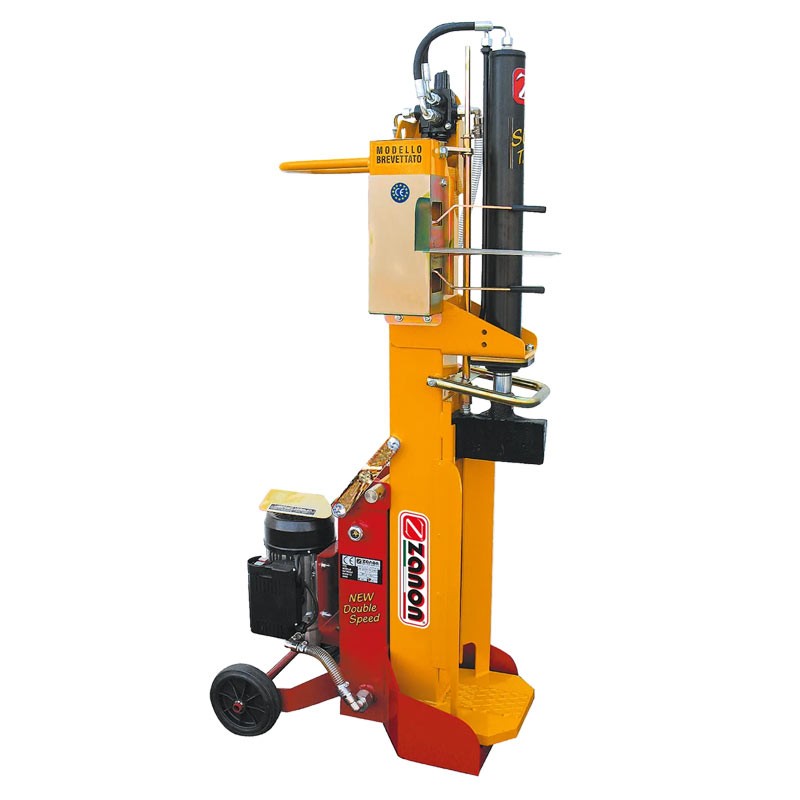

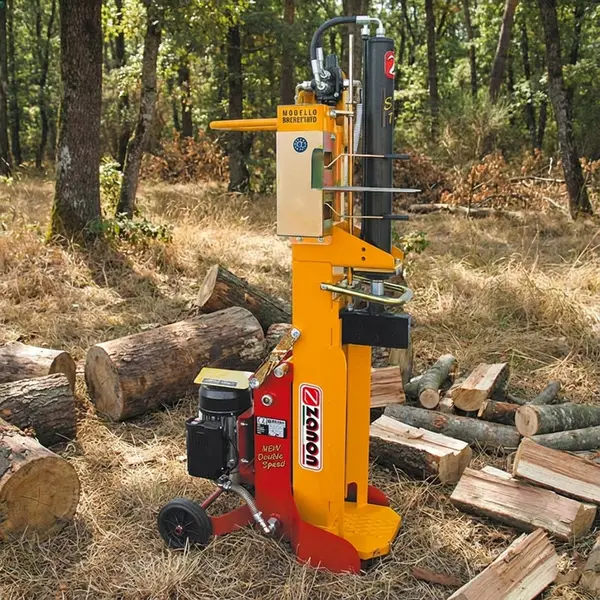

Zanon SLE-9 - 9 Ton Electric Tilting Multipurpose Log Splitter

The Zanon SLE-9 is a professional multipurpose electric log splitter , designed for intensive use in agriculture , forestry and craft sectors, where constant power, operational precision and maximum reliability are required. Thanks to a thrust force of 9 tons , the Zanon SLE-9 log splitter is able to process wooden logs of variable dimensions up to 59 cm in height , adapting to different types of wood and levels of material hardness.

Designed for industry professionals, the Zanon SLE-9 electric log splitter stands out for its robust structure , reinforced work surface and manual working system that allows use in vertical , horizontal and 45° inclined positions, offering great operational flexibility. One of its standout features is the automatic adjustable limit switch control system , which optimizes work cycles, improving productivity and safety.

TECHNICAL SPECIFICATIONS

The Zanon SLE-9 log splitter is powered by a single-phase 220V power supply as standard, making it the ideal solution for professional applications where an industrial power line isn't always available. The 3 HP electric motor ensures constant and reliable power transmission, supported by a high-capacity hydraulic pump designed to withstand continuous work cycles.

Upon request, the machine can be configured with a 380V three-phase power supply with 4 or 5 poles.

In terms of performance, the Zanon SLE-9 professional electric log splitter develops a maximum thrust of 9 tons , a value that allows for clean and controlled splitting even on knotty or particularly resistant logs. The hydraulic distributor with a flow rate of 40 L/min , equipped with variable speed and automatic drawer return , ensures smooth and precise movements. The machine weighs 100 kg , balanced by the presence of integrated wheels that facilitate movement within the work area. The noise level of 83 dB falls within the limits established by Directive 2000/14/EC for the reduction of environmental noise.

FUNCTIONAL SPECIFICATIONS

Multipurpose electric log splitter with 3 working positions

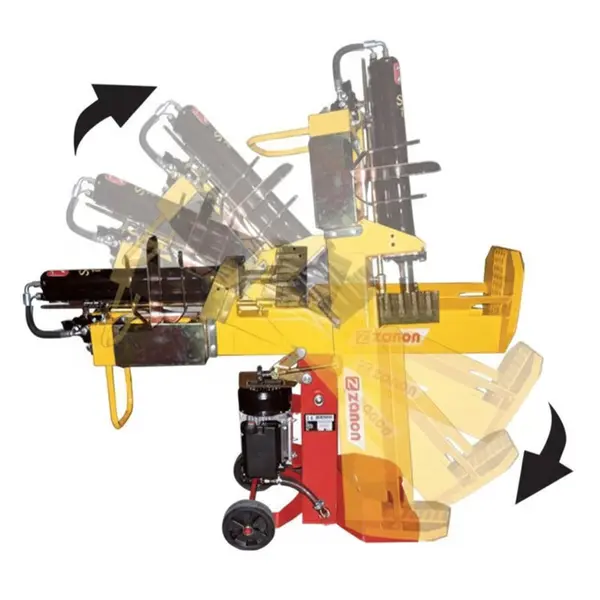

The manual configuration system of the Zanon SLE-9 log splitter allows for vertical , horizontal , and 45° operation, allowing the operator to adapt the machine to the type of log and the most efficient loading method. This feature makes the professional log splitter extremely versatile and suitable for a variety of operating contexts.

High performance hydraulic system with automatic return

The heart of the Zanon SLE-9 electric log splitter is the hydraulic system with a high-capacity pump and 40 L/min distributor , which ensures fast and controlled splitting cycles. The automatic drawer return reduces downtime between cycles, increasing the machine's overall productivity.

Automatic adjustable limit switch control

The adjustable automatic limit switch allows you to precisely adjust the piston stroke based on the log length, avoiding unnecessary movements and optimizing working times. This advanced feature makes the Zanon SLE-9 log splitter particularly suitable for continuous professional use.

Reinforced structure and safety for professional use

The Zanon SLE-9 professional electric log splitter is designed for stability and durability, thanks to its large, reinforced work surface and integrated safety devices that protect the operator during all phases of use. To complete the setup, a cross wedge is available upon request , an ideal accessory for further increasing productivity when processing large volumes of wood.

Characteristics

• Professional multipurpose log splitter
• Power supply
• Power 3 HP
• Cutting power 9 Ton
• Slit length 59 cm
• Weight 100 kg
