Zanon SVT-20
20 Ton Vertical PTO Drive Log Splitter

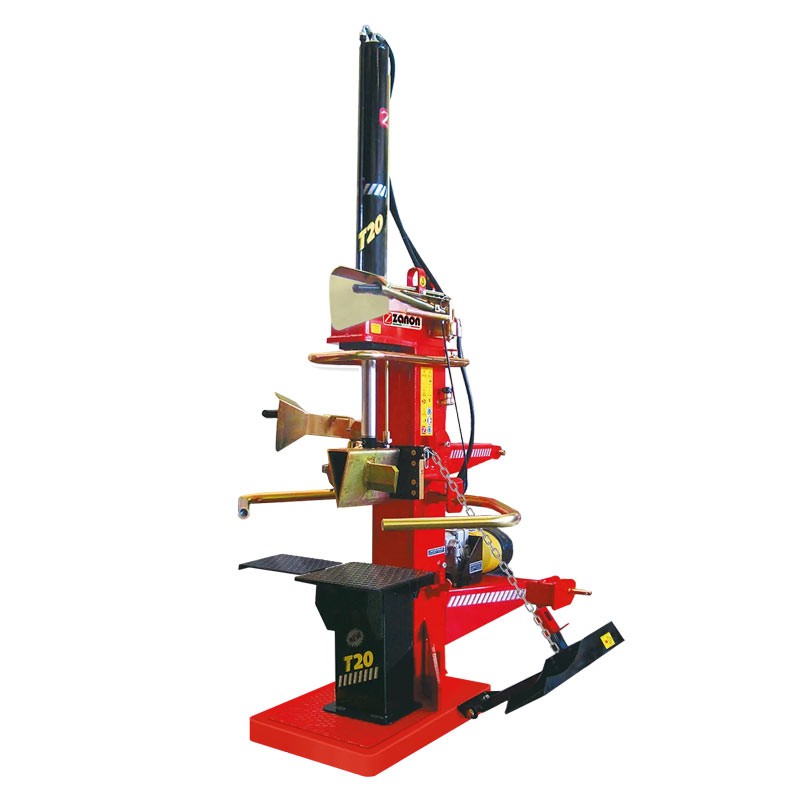

Zanon SVT-20 - 20 Ton Tractor-Driven Vertical Log Splitter

The Zanon SVT-20 vertical log splitter is a machine designed for professional use in open countryside, ideal for forestry and agricultural operators . This tractor-mounted log splitter can cut large logs, with a maximum diameter of 100 cm and a maximum height of 110 cm , offering efficiency and safety in every operation. Thanks to its double support surface and the standard log lifter , work is quicker and more ergonomic, reducing operator effort and increasing productivity in the field. The machine is equipped with a 20-ton thrust , capable of tackling even the sturdiest logs, ensuring consistently high performance.

The SVT-20 belongs to the SVT-Heavy line, designed for intensive and professional use , and stands out for its robust structure, 1050 mm cylinder , and the adjustable automatic limit switch control system . These features make the professional vertical log splitter a reliable choice for those seeking efficiency, safety, and durability.

TECHNICAL SPECIFICATIONS

The Zanon SVT-20 PTO log splitter is powered by a PTO shaft and is compatible with tractors from 30 to 90 HP , ensuring a simple and safe connection to standard agricultural machinery. The hydraulic system is supported by a high-flow pump and a hydraulic distributor with automatic slide return , capable of handling up to 40 L/min , allowing for rapid and smooth work cycles without interruptions. The transmission takes place via an oil-bath gearbox, which ensures constant lubrication and reduces wear on mechanical components even in harsh working conditions.

The performance of the SVT-20 professional log splitter is based on a 1050 mm cylinder that exerts a force of 20 tons , capable of splitting logs up to 110 cm high and with a maximum diameter of 100 cm . The overall weight of the machine is 365 kg , an ideal balance between stability and maneuverability. The device is designed to ensure safety and precision, thanks to integrated protection systems and an adjustable limit switch control, which allows the machine to be adapted to different types of wood and operating conditions.

FUNCTIONAL SPECIFICATIONS

Rapid knife approach speed

The SVT-20 features a particularly fast knife approach speed , designed to reduce downtime between splitting cycles. This feature increases productivity, especially when working with large quantities of logs, by maintaining constant and uniform pressure throughout the operation.

Mechanical load of the trunk

The machine is equipped with a mechanical log loading system , which allows the wood to be positioned without manual effort, improving ergonomics and reducing the risk of accidents. This system also facilitates the use of the machine on large logs, ensuring faster and safer operation for the operator.

Double support surface and lateral support

The double removable support surface and the lateral support ensure optimal stability during cutting, allowing you to work with logs of various sizes without compromising balance. This feature is essential for maintaining precision and safety during intensive operations.

Standard trunk lift

The SVT-20 log splitter includes an integrated log lifter , which makes it easier to position heavier logs on the machine. This feature reduces the operator's physical effort and allows for longer work without fatigue, making the machine particularly suitable for professional use in the countryside or in forestry settings.

Automatic limit switch control system

The adjustable limit switch ensures precision and safety during each splitting cycle, preventing knife positioning errors and protecting the operator from potential accidents. This advanced system allows the machine to be adjusted to the characteristics of the wood and specific job requirements, optimizing efficiency and machine life.

Characteristics

• Professional vertical log splitter
• Cardan shaft drive
• For 30÷90 HP tractors
• Cutting power 20 Ton
• Split diameter Ø 100 cm
• Split length 110 cm
• 105 cm cylinder
• Weight 365 kg
