Zanon SVE-20
20 Ton Electric Vertical Log Splitter

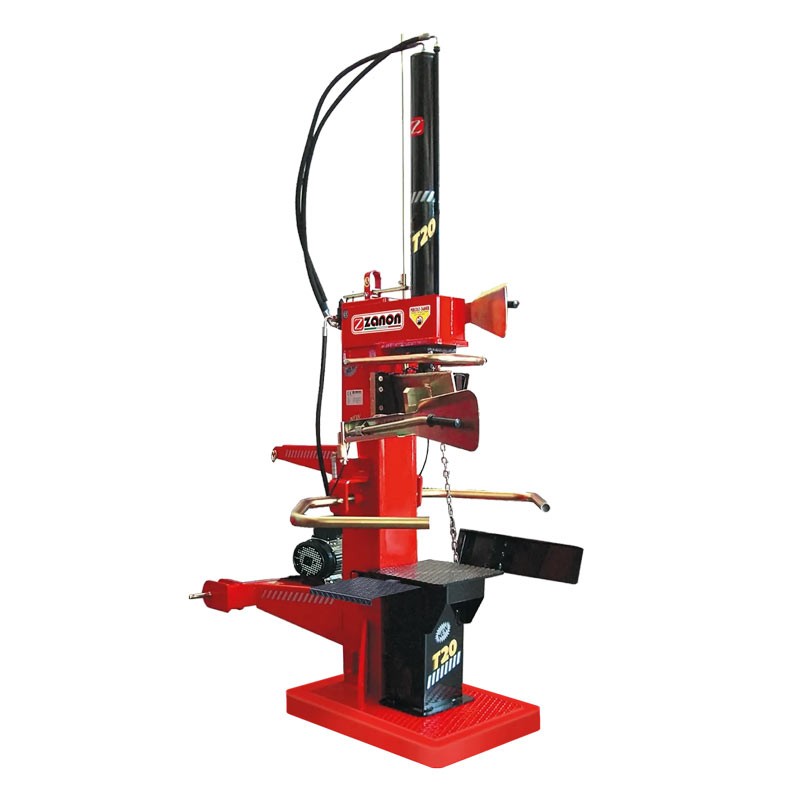

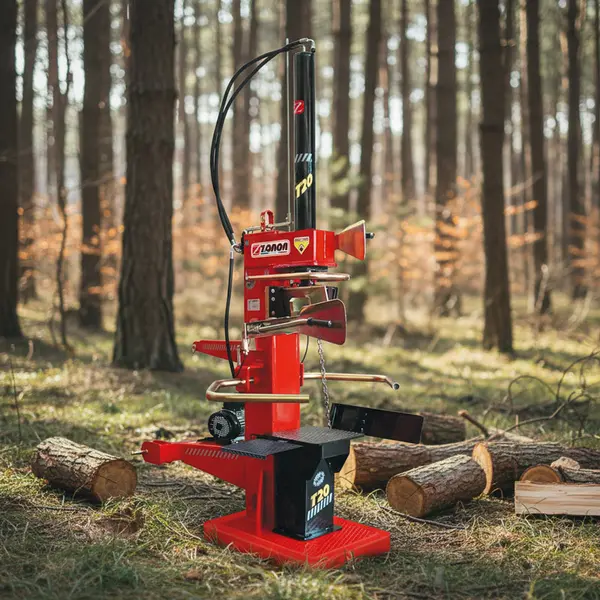

Zanon SVE-20 - 20 Ton Electric Vertical Log Splitter

The Zanon SVE-20 is a professional electric vertical log splitter designed to ensure maximum efficiency in woodworking operations in industrial , forestry , and carpentry settings. Thanks to its robust structure and ability to handle logs up to 100 cm in diameter and 110 cm in height, this machine offers consistent output even under intensive use.

Featuring a thrust power of 20 tons , the SVE-20 integrates advanced technologies such as the standard log lifter and the double support surface which ensure stability and precision during each operating cycle, distinguishing it as one of the most reliable models in the Zanon professional line.

TECHNICAL SPECIFICATIONS

The Zanon SVE-20 power system uses a 380V 8.5 HP three-phase electric motor , configured to ensure operational continuity and fuel consumption proportionate to the power output. The machine is equipped with a high-capacity pump that maintains a constant flow of hydraulic fluid, optimizing the response of the 1050 mm cylinder and supporting a maximum thrust of 20 tons even under prolonged loads. The system also complies with Directive 2000/14/EC on noise emissions, making it more comfortable to use in work areas.

The performance is distinguished by the speed of the blade movement, made possible by the hydraulic distributor with a flow rate of 40 L/min and automatic return , designed to facilitate fast and continuous cycles. The overall weight of 370 kg provides structural stability, while the mechanical loading of the log and the removable support surfaces guarantee safe and easy control even for large logs, maintaining high cutting precision.

FUNCTIONAL SPECIFICATIONS

High flow hydraulic system

The Zanon SVE-20 log splitter integrates a professional hydraulic system that uses a high-flow pump combined with a 40 L/min distributor . This system allows for smooth and stable management of the splitting cycle, reducing mechanical stress and ensuring constant power even with large logs. The automatic drawer return further increases productivity by reducing downtime between cycles.

Professional three-phase electric motor

The 8.5 HP 380V three-phase electric motor ensures continuous, drop-free power, an essential feature for forestry and industrial applications. The three-phase power supply increases the machine's overall efficiency, ensuring adequate torque for splitting logs up to 110 cm high , making the process stable and controlled even under demanding working conditions.

1050 mm professional cylinder

The 1050 mm cylinder , supplied as standard in the heavy SVE line, allows the Zanon SVE-20 to develop a force of 20 tons while maintaining linear and precise movement throughout the entire cycle. The long stroke optimizes the ability to process very tall logs without having to make continuous adjustments, improving daily productivity and operational precision.

Adjustable limit switch control system

The fully adjustable automatic limit switch control system offers professionals a high level of customization of the work cycle. This feature optimizes process efficiency by adapting the blade movement to the size of the log, reducing unnecessary work time and ensuring greater safety thanks to the automated management of the end positions.

Integrated log lift and mechanical loader

The standard log lifter facilitates the handling of heavier logs, reducing the operator's physical effort and speeding up the positioning phase. The mechanical loading system , combined with the lateral support, ensures a stable grip of the material and allows the handling of logs with large diameters without compromising safety or cutting precision.

Double removable support surface

The double, fully removable support surface offers versatility in splitting operations thanks to the ability to quickly adapt the machine's configuration to the size of the log. This solution allows the material to always be correctly aligned with the blade, ensuring cutting precision and reducing vibration during use.

Characteristics

• Professional vertical log splitter
• 380V electric motor
• Power 8.5 HP
• Cutting power 20 Ton
• Split diameter Ø 100 cm
• Split length 110 cm
• 105 cm cylinder
• Weight 370 kg
