Garland Chopper 852 ZE-V25
Electric Log Splitter 12 Ton Tilting Table

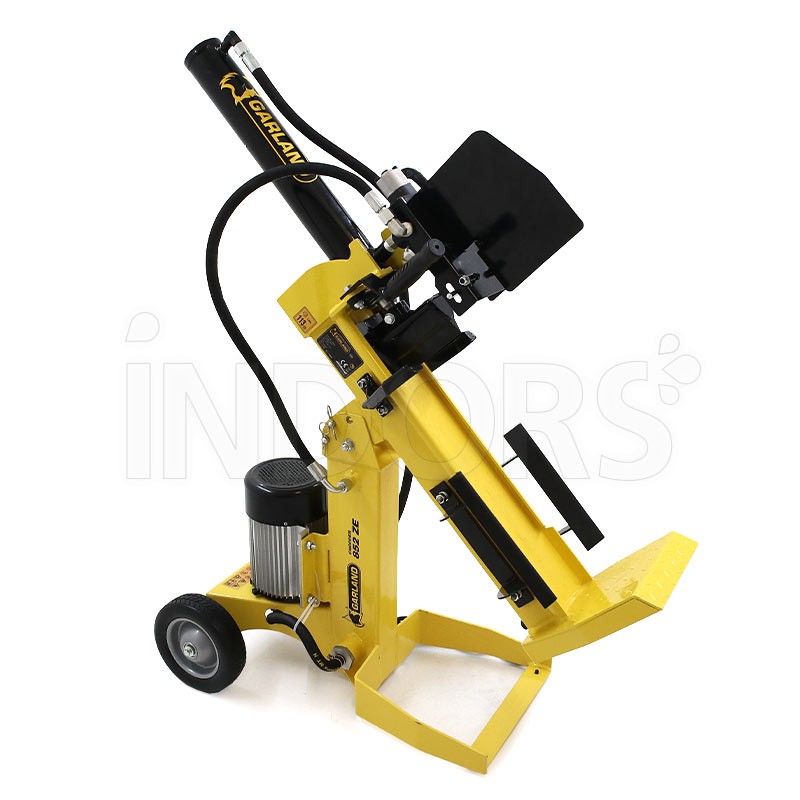

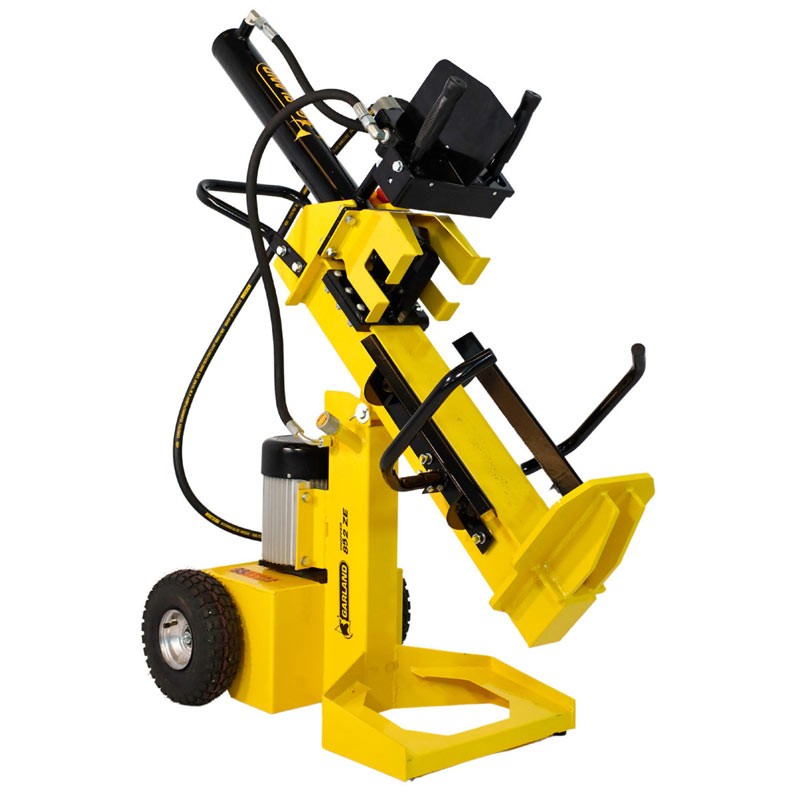

Garland Chopper 852 ZE-V25 - 12 Ton Electric Log Splitter with Tilting Table

The Garland Chopper 852 ZE-V25 log splitter is a professional tool designed to meet the needs of operators in the forestry sector, advanced gardening, and green maintenance. This model with a tilting table allows cutting in any position, operating horizontally, vertically, and at intermediate angles, ensuring maximum flexibility in handling logs of various sizes. The 2.3 kW single-phase 230V electric motor provides constant power and reliability, making work quick and efficient. The 12-ton splitting force allows splitting large logs with minimal effort, while the pneumatic wheels and transport handle facilitate movement on the ground.

The Chopper 852 ZE-V25 stands out for its ZHB safety system, which requires the simultaneous use of both hands, preventing accidental starts and ensuring maximum operator protection. Electrically powered, this professional log splitter is ideal for equipped construction sites and urban environments, with no emissions and no need for fuel.

Technical Specifications

The Garland Chopper 852 ZE-V25 is equipped with a 2.3 kW single-phase 230V electric motor, ensuring consistent performance and low maintenance. The hydraulic system uses ISO HM22 viscosity oil, contained in a 5 L tank, ensuring optimal lubrication and long machine life.

In terms of performance, this professional log splitter reaches a maximum splitting force of 12 Ton, allowing it to work logs up to 30 cm in diameter and up to 52 cm in length. The compact 115 kg structure, combined with pneumatic wheels and an ergonomic handle, ensures ease of transport and stability during use. The guaranteed sound power level of LwA 113 highlights the importance of using hearing protection during operation.

Functional Specifications

Horizontal and Vertical Splitting

The tilting table of the Garland Chopper 852 ZE-V25 allows operation horizontally, vertically, or at intermediate angles, adapting to the type of log and the required working position. This ensures precise and safe cuts, even on large logs.

Two-Speed System

The machine features a two-speed splitting system, optimized to make cutting faster and more uniform. The function allows modulating the applied force based on wood hardness, increasing efficiency and reducing operator effort.

ZHB Operational Safety

The ZHB system requires the simultaneous use of both hands to start the log splitter, preventing accidental starts and ensuring maximum protection during use, even in complex environments.

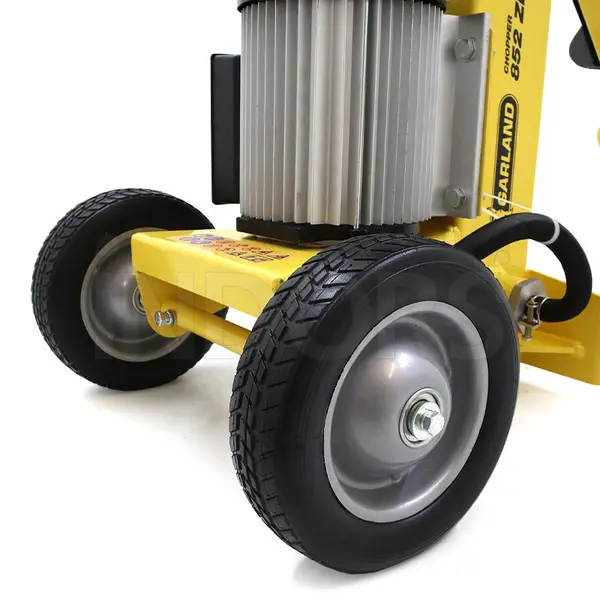

Transport and Mobility

Thanks to pneumatic wheels and an ergonomic handle, the device is easily moved over uneven terrain. Despite its 115 kg weight, transport is simple and allows the log splitter to be positioned quickly where needed.

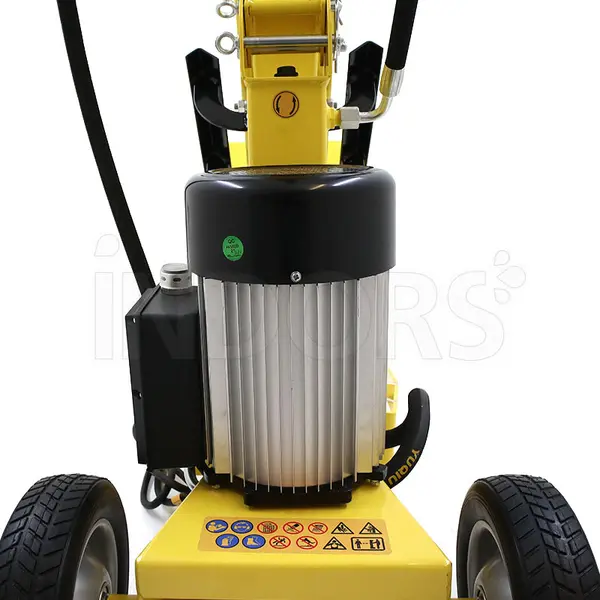

Electric Power Supply

The 2.3 kW single-phase 230V electric power supply offers consistent and sustainable performance, with no emissions and no fuel. This makes the Chopper 852 ZE-V25 ideal for construction sites, urban areas, or enclosed environments, with minimal maintenance and reduced operating costs.

Watch the Videos

Features

• Professional multi-directional log splitter
• Single-phase 230V power supply
• Power 2.3 kW
• Splitting force 12 Ton
• Max log length 520 mm
• Max log width 300 mm
• Two-speed splitting system
• Hydraulic oil tank 5 L
• Pneumatic wheels
• Transport handle
• Sound level 113 LwA
• ZHB dual-control safety system
• Tilting table
• Horizontal/vertical/intermediate angle splitting
• Weight 115 kg

1. Control lever
2. Hydraulic cylinder
3. Transport handle
4. Motor
5. Wheels
6. Blade
7. Work table
8. Rotation locking system
9. Bleed screw
10. Base
11. Power plug/connector
12. Log guard
